OUTSTANDING FEATURES OF THE MS329BE SURFACE-MOUNTED CEILING MICROWAVE SENSOR LIGHT CẢM ỨNG VI SÓNG MS329D

• The MS329D surface-mounted ceiling sensor light uses highly sensitive microwave sensor technology. It uses 5.8GHz radar technology to detect the movement of objects with wave characteristics similar to those of the human body. This surface-mounted ceiling microwave sensor light is not affected by ambient temperatures >32°C, unlike infrared sensor lights . The microwave sensor can effectively detect through obstacles such as wood, glass, plasterboard partitions, and more.

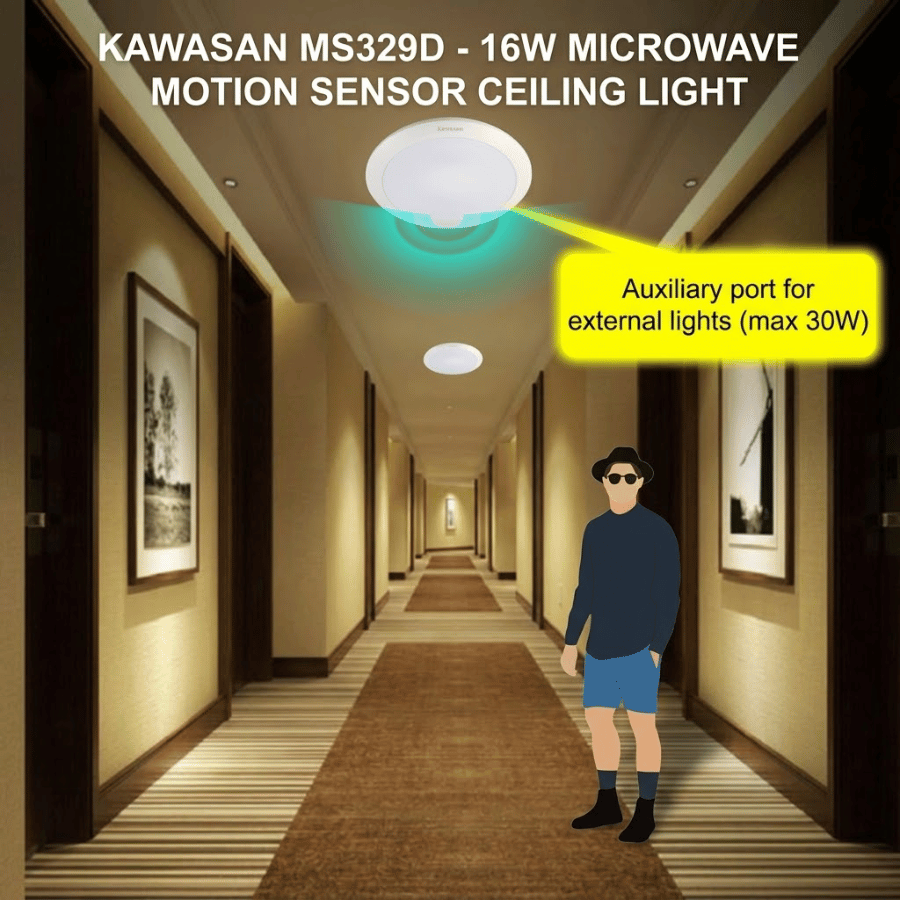

•  The motion sensor light has an additional output for auxiliary lights with a maximum load power of 30W. If the space is too large for one MS329D light to provide sufficient illumination, additional lights can be connected. The surrounding auxiliary lights will turn ON/OFF simultaneously with the sensor light.

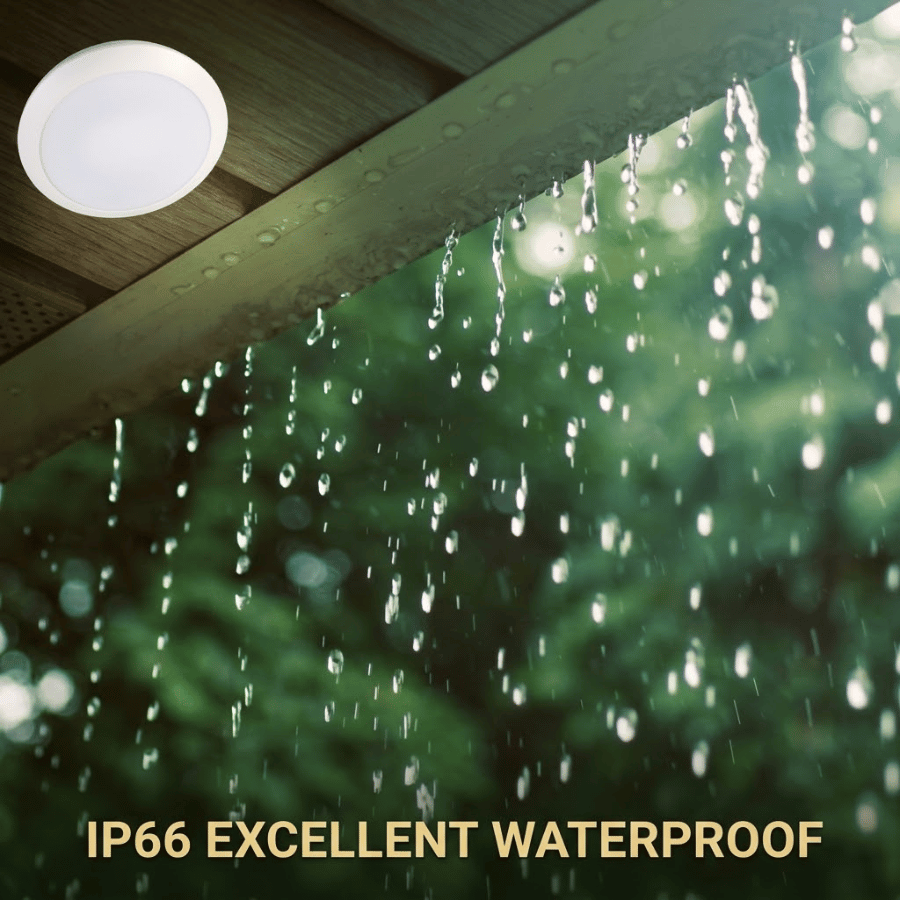

•  The MS329D surface-mounted ceiling sensor light has an IP66 waterproof rating, providing excellent water resistance. It is suitable for areas with high humidity or water splashes, such as outdoor balconies, public restrooms, and household restrooms with glass partitions.

WHERE CAN SURFACE-MOUNTED CEILING MICROWAVE SENSOR LIGHTS BE USED?

KAWASAN microwave sensor lights can be installed on ceilings or walls in locations such as:

• Balconies and corridors in hotels, apartment buildings, apartments, office areas, and more.

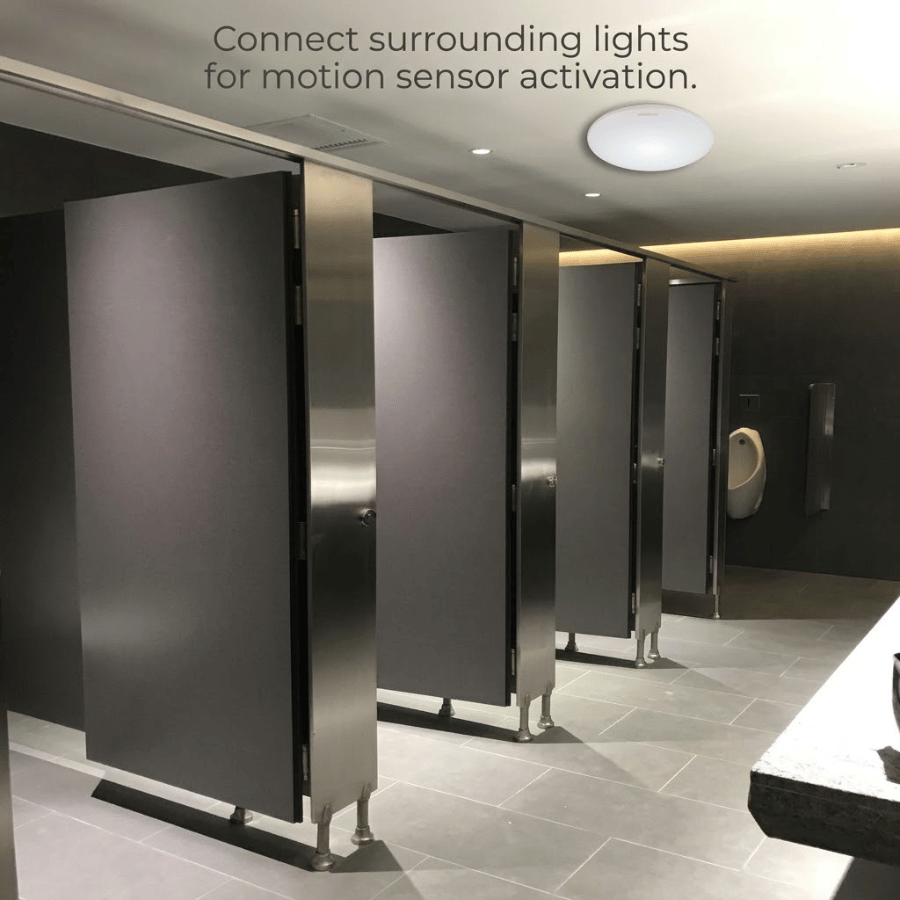

• Household restrooms with glass partitions and public restrooms with multiple partitions.

• Stair landings, elevator landings, and more.

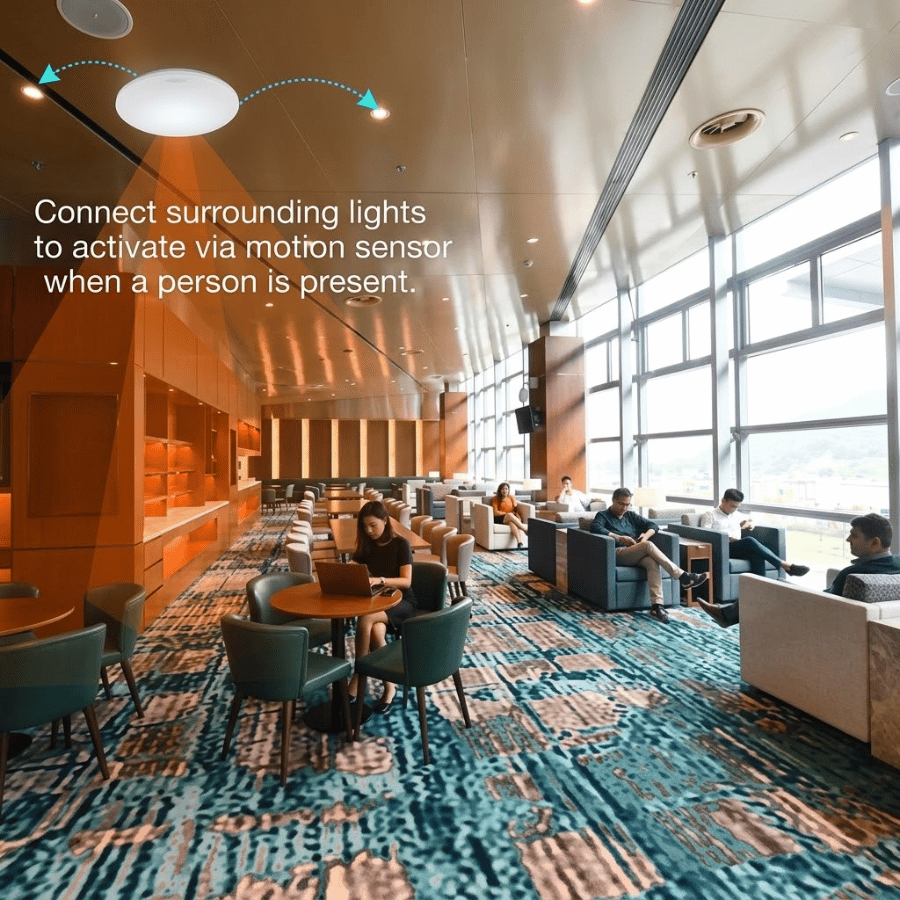

• Waiting rooms, hotels, airports, and bus stations

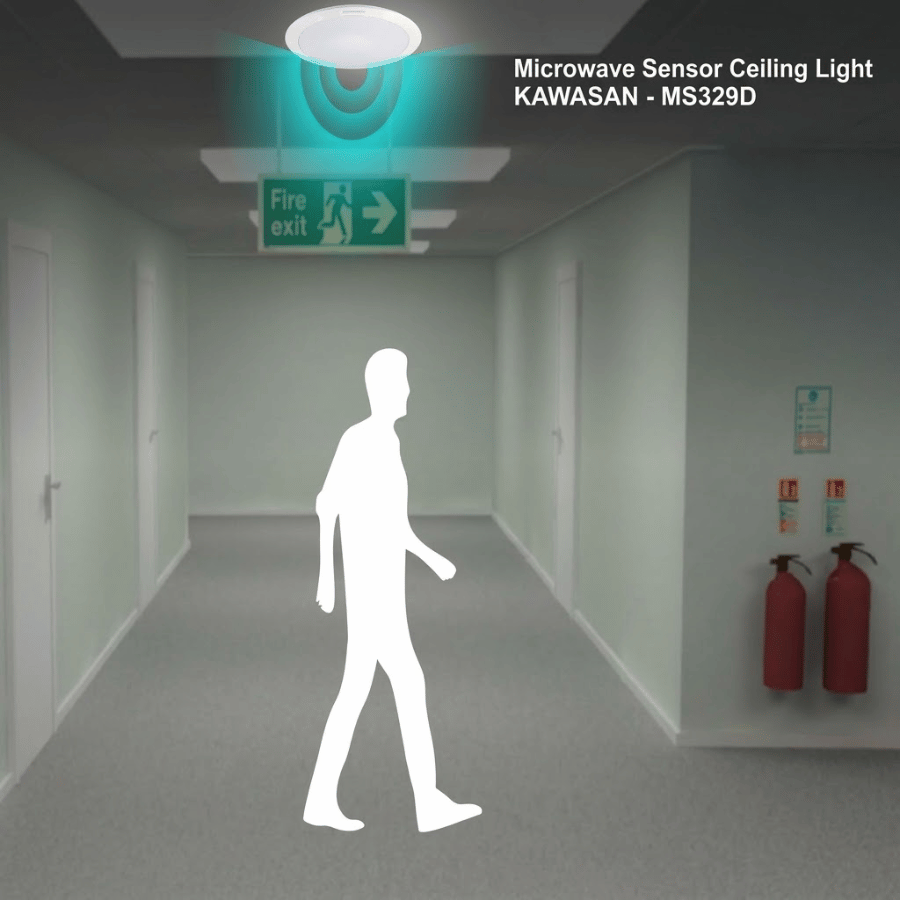

• Emergency exit corridors, parking basements, and more.

DIFFERENCES BETWEEN KAWASAN MICROWAVE SENSOR LIGHTS AND OTHER LIGHTS ON THE MARKET

• KAWASAN MS329D LED Microwave Sensor lights are continuously researched and improved. They have clear certification of origin and meet the needs of consumers and environmental conditions in Vietnam: high sensitivity, accurate detection, stable operation without flickering, and less interference from other factors during use.
• In particular, the MS329D surface-mounted ceiling sensor light has an additional output for auxiliary lights with a maximum load power of 30W. If the space is too large for one MS329D light to provide sufficient illumination, additional lights can be connected to turn on simultaneously with the MS329D sensor light.
• Other microwave sensor lights on the market are less expensive. However, they often do not deliver the stated power, and their sensitivity is not properly adjusted. Some may be overly sensitive, causing the light to remain on continuously, while others may not be sensitive enough to turn on when someone enters.
• Kawasan motion sensor lights typically have a durability of >5 years and a 2-year warranty. In comparison, products on the market generally last approximately 1 year and come with warranties ranging from 3 months to 1 year. Although they are less expensive, the cost of purchasing replacements over 3 years is actually much higher.

MICROWAVE SENSOR LED LIGHTS PROVIDE CONVENIENCE FOR USERS

• Safe for users: Helps protect children and elderly people from electrical hazards and bacterial exposure because there is no need to touch the device directly as with conventional switches.

• Anti-theft: Because the microwave sensor can detect through plasterboard walls, wooden doors, glass doors, plastic, and more, the light may turn on when an intruder approaches the house.

• Energy and cost savings: No need to install multiple infrared sensor lights at the same time. Saves more energy with the option to turn off completely or maintain dim lighting when no movement is detected.

• Using 5.8GHz radar wave technology
• Operating voltage: 220-240VAC/50-60Hz
• Detection Angle: 180° / 360°
• Motion Detection Speed: 0.6–1.5m/s
• Mounting Height: 2–4m
• Detection Radius: 2–8m
• Operating Ambient Temperature: -10°C to +70°C
• Adjustable Auto-Off Time / Time Delay: 10 seconds to 12 minutes
• Adjustable Ambient Light Level: 3 LUX, sensing only in dark environments, to 2000 LUX, sensing in both dark and bright environments
• LED Power: 16W

HƯỚNG DẪN SỬ DỤNG

FUNCTION OF ADJUSTABLE BUTTONS

• LUX Knob :Điều chỉnh chế độ nhận biết môi trường sáng hay tối để kích hoạt chế độ cảm biến hoạt động mở đèn.
  • Nút LUX xoay về phía “sun “thì cảm biến sẽ luôn luôn làm việc cả ngày và đêm.
  • Nút LUX xoay về phía “Số 30 “thì cảm biến chỉ làm việc bật đèn trong môi trường sáng mờ.
  • Nút LUX xoay về phía “Số 300 “thì cảm biến sẽ làm việc trong môi trường có sánh sáng nhẹ

Chú ý: Khi ánh sáng của đèn khác chiếu vào làm ảnh hưởng sự cảm nhận ánh sáng môi trường làm cho đèn không cảm ứng thì chỉnh tăng lên, từ 30 lên 300 hoặc từ 300 lên mặt trời.

• Nút SENS: Điều chỉnh khoảng cách phát sóng để nhận chuyển động, tối thiểu 2m “Dấu – “ khoảng cách chỉnh tối đa 8m “Dấu + “
• TIME button: Điều chỉnh thời gian tự tắt. Trong khoảng thời gian có thể chỉnh tự tắt từ 10 giây đến 12 phút. Thời gian trễ này sẽ được bắt đầu tính lại trong chu kỳ cảm ứng mới.

CÁCH LẮP ĐẶT VÀ NỐI DÂY

• Gắn nổi trần, gắn tường…

• Đấu nối nguồn trực tiếp

ATTENTION:

• Turn off the power before connecting the device

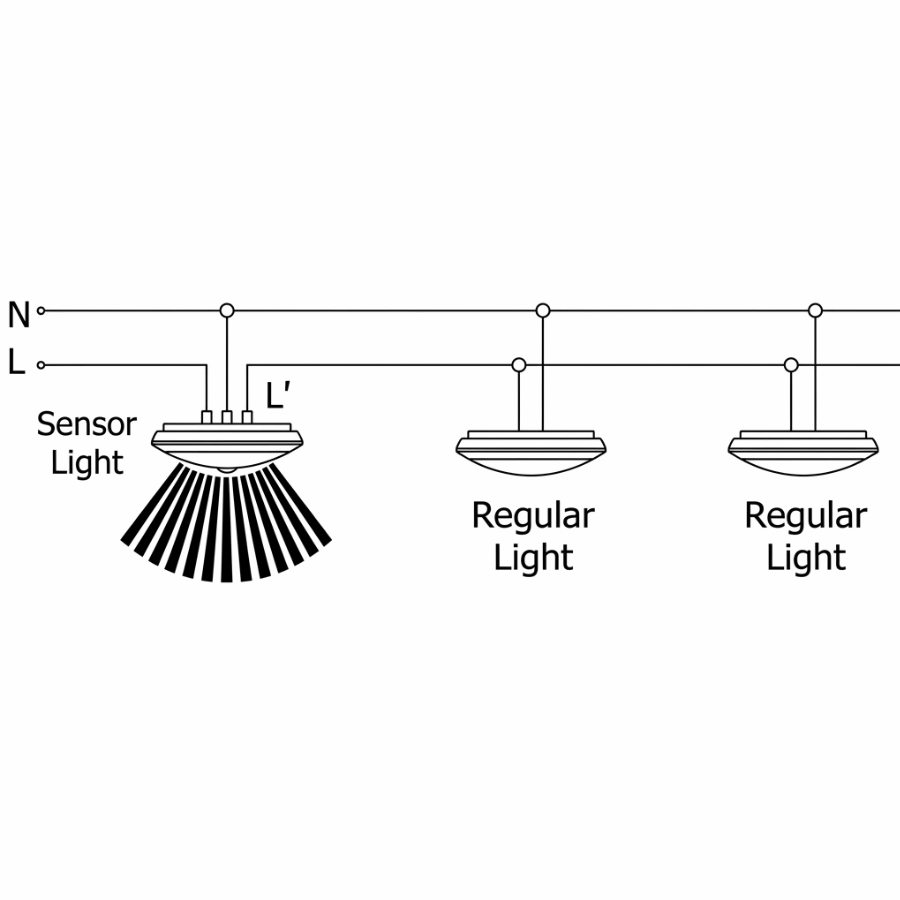

• Kết nối dây nguồn và tải  phụ  như sơ đồ trên (Teminal N and L đấu vào nguồn điện 220v ,N và L’ ra đèn phụ )

Thank you for trusting Kawasan products!
