Infrared Sensor Lamp PS329A-10W
Sold: 16505 sản phẩm
900.000 ₫ 675.000 ₫ (VAT included)
PS329A-10W surface-mounted ceiling infrared sensor light:
- Operating voltage: 110-240VAC/50-60Hz
- Detection Angle: 360°/160°
- Detection Range: 3–4m (>32°C), 5–8m (<28°C)
- Adjustable Auto-Off Time: 10 seconds to 5 minutes
- Active sensor brightness adjustment: from 3 LUX(dark) to 2000LUX(light)
- Operating temperature: -10+40°C
- Low-Brightness Backup Time (2W) During Power Failure: 4–6 hours
- Backup Battery: 3.7V / 1500mAh lithium battery
- Ceiling Mounting Height: 2.2–4m
- Wall Mounting Height: 1.8–2.5m
WHAT IS THE PS329A-10W INFRARED SENSOR LIGHT?
- The PS329-10W infrared sensor light operates based on body heat motion detection corresponding to a human body temperature of 36–37°C. In particular, the PS329A infrared sensor light features emergency lighting during power outages. Its backup battery maintains emergency illumination for 2–3 hours, ensuring that the space remains continuously illuminated for user convenience.
- Standard-quality light without glare and safe for users’ eyes. The surface-mounted ceiling sensor LED light is highly durable, with a lifespan of more than 40,000 lighting hours. Its low power consumption of 10W helps users save energy and reduce replacement costs.

- The Motion Sensor Switch automatically turns on the light when someone moves within the detection area. It also includes an adjustable function that prevents the light from turning on when the surroundings are sufficiently bright. Users can adjust the light/dark detection level from 10–2000 Lux to turn on the light according to their needs.
- The PS329A-10W surface-mounted ceiling sensor light features continuous motion detection. Therefore, the light remains on continuously within the set period. When no further movement is detected within the detection area, the device begins counting down and automatically turns off according to the adjusted delay time.
- Compact design suitable for various installation areas such as balconies, restrooms, corridors, emergency exits, and more.

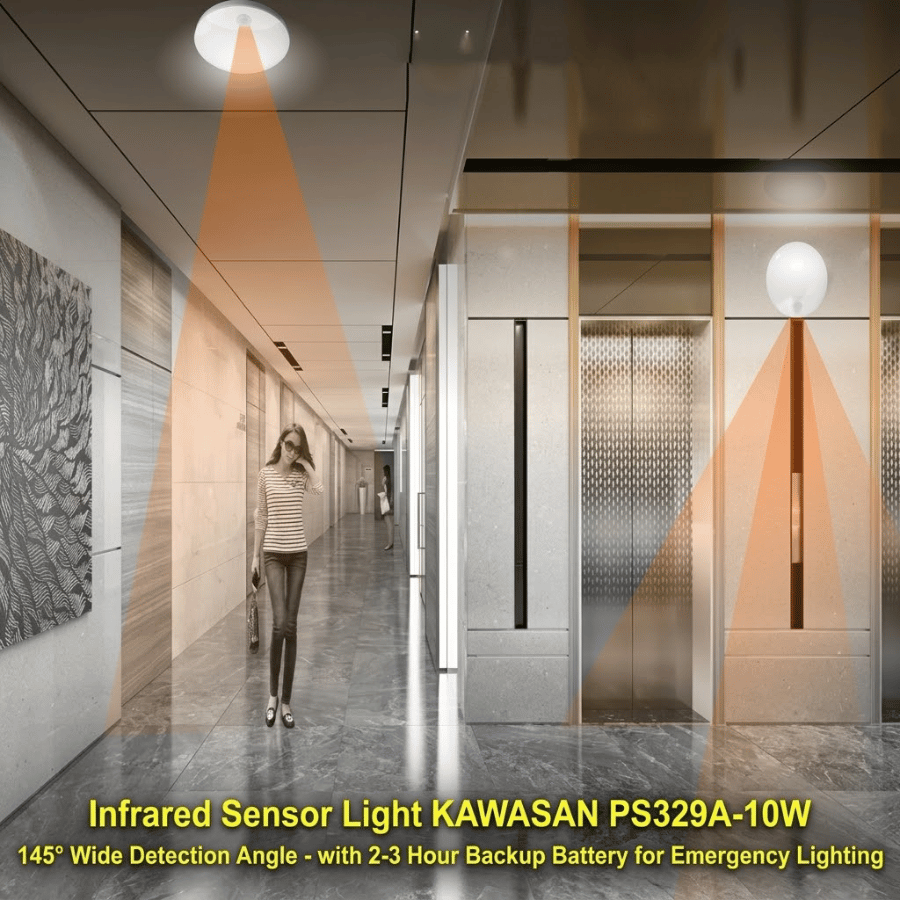

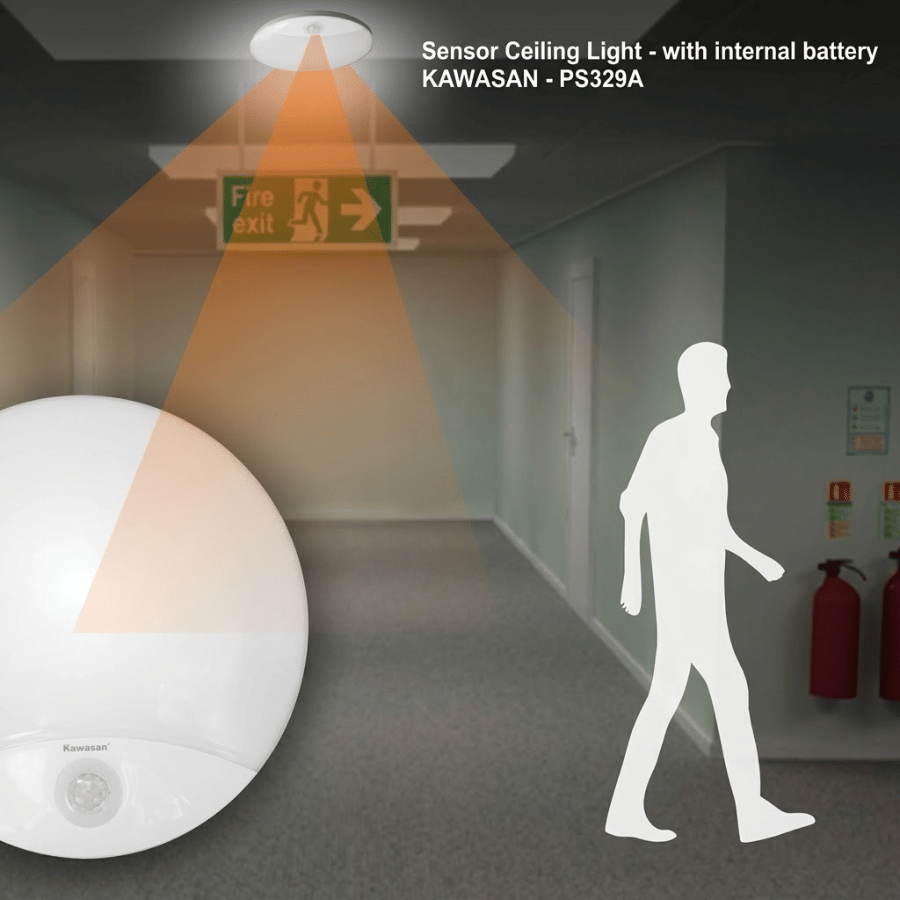

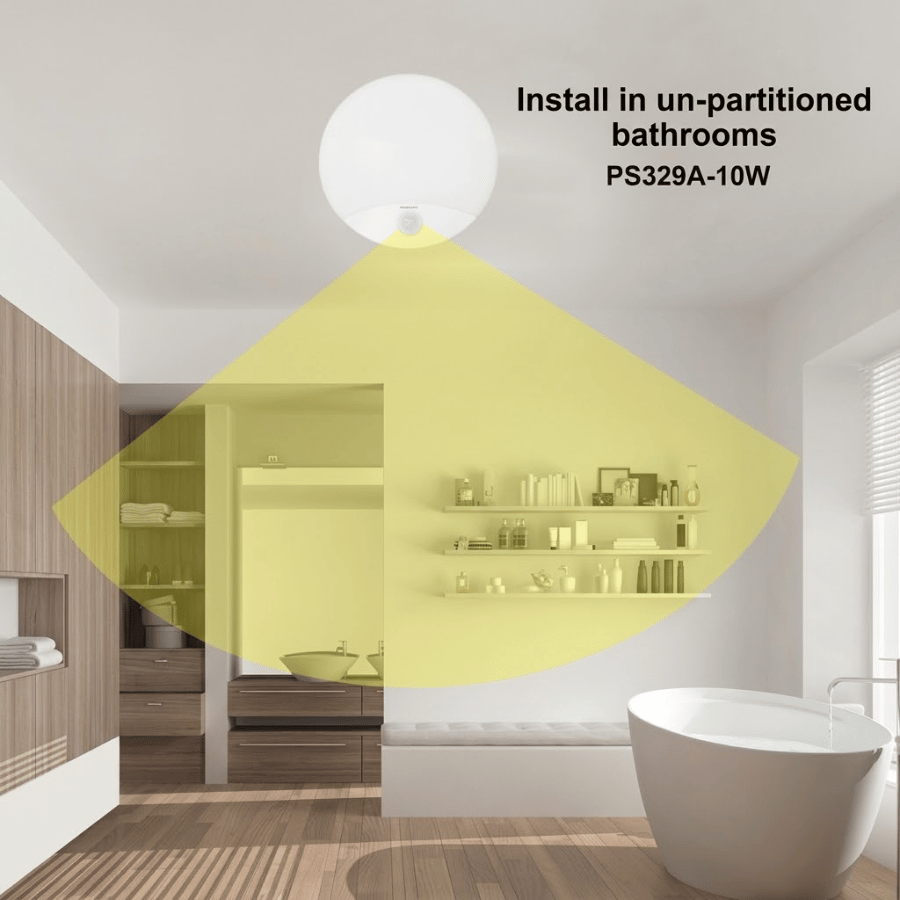

COMMON INSTALLATION AREAS FOR SURFACE-MOUNTED CEILING INFRARED SENSOR LIGHTS
The PS329A surface-mounted ceiling sensor light automatically turns the light ON/OFF to illuminate corridors, stairways, elevator cabins, hotels, basements, emergency exits, office buildings, and more. It provides convenience, safety, and enhanced aesthetics for buildings and your beloved home.


PS329A-10W SENSOR LED LIGHTS PROVIDE MANY BENEFITS
- Effective energy savings: Reduces electricity costs by more than 60% in public areas, including parking areas, corridors in apartment buildings and apartments, stairways, emergency exits, and more.
- Safe for users’ health: No need to touch a manual switch, helping prevent the risk of electrical leakage. Reduces the spread of bacteria caused by multiple people touching light switches.
- Saves time and effort: No need to spend time monitoring or assigning someone to turn the lights ON/OFF every day.
- Greater convenience: Makes daily family activities easier and more enjoyable. No need to worry about forgetting to turn the lights ON/OFF or repeatedly reminding one another.
- Anti-theft: When installed at gates, walkways, rear hallways, balconies, and similar areas, the light turns on when an intruder enters and may scare the intruder away.

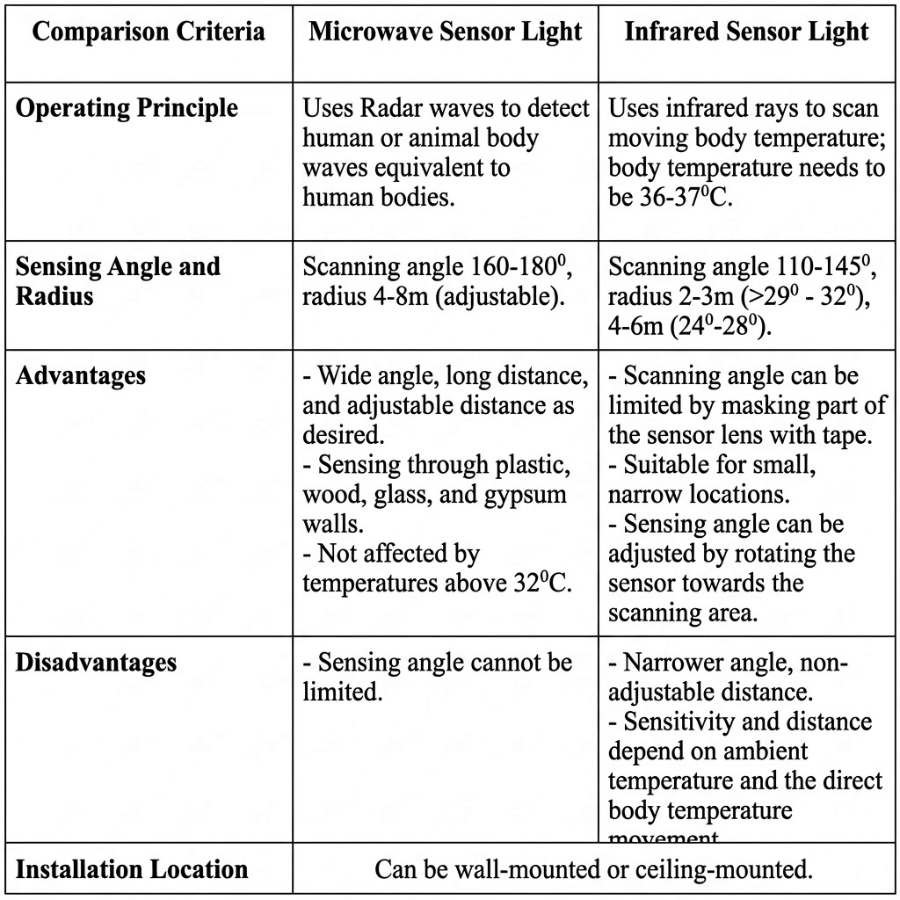

COMPARISON BETWEEN INFRARED SENSOR LIGHTS AND MICROWAVE SENSOR LIGHTS
>>> See more: surface-mounted ceiling microwave sensor lights
DIFFERENCES BETWEEN SURFACE-MOUNTED CEILING INFRARED SENSOR LIGHTS AND OTHER PRODUCTS ON THE MARKET
- KAWASAN infrared sensor LED lights have been researched and improved since 2010. They have clear certification of origin and meet the demand for microwave sensor devices in the Vietnamese market. The sensor lights provide high sensitivity, accurate detection, and stable operation without flickering.
- Other infrared motion sensor lights on the market are less expensive. However, they often do not deliver the stated power, and their sensitivity is not properly adjusted. Some may be overly sensitive, causing the light to remain on continuously, while others may not be sensitive enough to turn on when someone enters.
- Kawasan infrared sensor lights typically have a durability of >5 years and a 2-year warranty. In comparison, products on the market generally last approximately 1 year and come with warranties ranging from 3 months to 1 year. Although they are less expensive, the cost of purchasing replacements over 5 years is actually much higher.

WHY CHOOSE KAWASAN?
- A leading Vietnamese brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
- High durability with selected components – Stable operation even in harsh weather conditions
- Superior warranty policy – Repair support is available even after the warranty period if the product can still be restored
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 support service and a nationwide dealer network
KAWASAN COMMITMENT
Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements. All products are covered by warranty free of charge for 24 months, 1-for-1 replacement within 30 days if it is a technical defect. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant. Customers can purchase products at dealers within NATIONWIDE DISTRIBUTION SYSTEM provinces and cities nationwide, or place orders on the website.Buy genuine products at:
- Contact the sales department directly for wholesale, dealer / distributor pricing: 0825 411 408 / 0911 757234
- Website: www.kawasan.vn (For Kawasan products)
- Website: www.kawaled.com.vn (For Kawaled products)
-
- Refer to product-related articles:
- Watch videos introducing the product, its applications, and instructions for use:
- Product introduction video: ĐÈN CẢM BIẾN HỒNG NGOẠI PS329A-10W – KAWASAN
- Operating voltage: 110-240VAC/50-60Hz
- Detection Angle: 360°/160°
- Detection Range: 3–4m (>32°C), 5–8m (<28°C)
- Adjustable Auto-Off Time: 10 seconds to 5 minutes
- Active sensor brightness adjustment: from 3 LUX(dark) to 2000LUX(light)
- Operating temperature: -10+40°C
- Standby Power: <0.5W
- LED Ring Power: 10W
- Low-Brightness Backup Time (2W) During Power Failure: 4–6 hours
- Backup Battery: 3.7V / 1500mAh lithium battery
- Ceiling Mounting Height: 2.2–4m
- Wall Mounting Height: 1.8–2.5m
CHỨC NĂNG NÚT CHỈNH

- Nút LUX: Điều chỉnh chế độ nhận biết môi trường sáng hay tối để kích hoạt chế độ cảm biến hồng ngoại:
- Nếu điều chỉnh nút LUX xoay về phía “mặt trời “thì cảm biến sẽ luôn luôn được kích hoạt trạng thái sẵn sàng. Để nhận chuyển động thân nhiệt trong vùng quét để bật đèn nghĩa là sẽ cảm ứng cả ngày lẫn đêm.
- Nếu điều chỉnh nút LUX xoay về phía “mặt trăng “thì cảm biến chỉ được kích hoạt trạng thái nhận chuyển động thân nhiệt trong vùng quét để bật đèn khi môi trường thiếu ánh sáng (tối). Nghĩa là chỉ cảm ứng bật đèn trong môi trường tối (hoặc mờ tối tuỳ mức độ điều chỉnh nút Lux)
Once the device has detected movement and turned on the light, the light/dark sensing mode no longer affects body-heat motion detection during that sensing cycle.
- Nút TIME: Điều chỉnh thời gian tự tắt, trong khoảng thời gian có thể chỉnh tự tắt từ 10 giây đến 10 phút. Thời gian trễ này sẽ được bắt đầu tính lại trong chu kỳ cảm ứng mới
CÁCH LẮP ĐẶT VÀ NỐI DÂY
- Gắn trần hoặc tường

KIỂM TRA THIẾT BỊ

- Xoáy nút TIME về mức thấp nhất (-), xoáy ngược chiều kim đồng hồ. Xoáy nút LUX về hướng hình mặt trời để kiểm tra.
SOME COMMON PROBLEMS AND HOW TO FIX THEM
Đèn không sáng:
- Kiểm tra nguồn điện vào đèn đã có điện ra chưa?
- Dùng bút thử điện kiểm tra nguồn vào đã đủ N và L, lắp thử 1 bóng đèn thông thường vào xem đèn có sáng không!
- Kiểm tra nút chỉnh độ Lux có chỉnh thấp quá không?
- Chỉnh tăng độ LUX lên, khoảng giữa hoặc qua vị trí cao nhất “+” để sử dụng.
- Tại nơi lắp đặt có cao không?
- Độ cao lắp đặt quá cáo, làm cho cảm ứng không đủ xa để nhận thân nhiệt chuyển động, có thể chuyển qua dùng đèn ốp trần cảm ứng vi sóng như MS326BE, MS329BE hoặc MS329D.
- Nhiệt độ môi trường tại vị trí lắp có quá nóng >34 độ C không?
- Nhiệt độ môi trường cao sẽ làm cho cảm ứng hồng ngoại không nhận diện được thân nhiệt chuyển động. Cần chuyển qua đèn cảm ứng vi sóng.
Độ nhạy kém:
- Kiểm tra xem vị trí lắp, sao cho tia cảm ứng phải vuông góc với hướng người di chuyển.
- Nếu không di chuyển vị trí của đèn được thì cần chuyển qua lắp đèn ốp trần cảm ứng vi sóng.
- Kiểm tra nhiệt độ môi trường có cao quá không?
- Nguyên lý của đèn cảm ứng hồng ngoại là độ nhạy phụ thuộc vào nhiệt độ môi trường, không thể khắc phục được. Phải chuyển qua cảm ứng vi sóng.
- Kiểm tra chiều cao lắp đặt có quá 2.5m không?
Đèn sáng không tắt:
- Nhiệt độ môi trường <35 độ C sẽ làm cho cảm ứng nhận diện có thân nhiệt liên tục và đèn sẽ sáng liên tục do gió di chuyển, làm đèn sáng liên tục.
- Nên chuyển qua dùng đèn cảm ứng vi sóng để không bị ảnh hưởng bởi nhiệt độ môi trường.
- Kiểm tra xem xung quanh có các vật thể chuyển động liên tục trong vùng cảm ứng không? Ví dụ như cây cối, rem cửa, quạt hút, quạt trần, gió thổi mạnh…
- Nếu không xử lý được các vấn đề trên thì có thể không dùng được đèn cảm ứng khu vực này. Hoặc phải dùng băng keo dán bớt mắt cảm ứng lại để che ví trí bị tác động.
- Kiểm tra xem có lắp gần thiết bị phát sóng cao tần wifi, bếp từ, motor bơm nước, rèm cửa, cây cối không?
- Giải pháp: Nếu đã loại trừ các yếu tố trên mà đèn vẫn sáng không tắt thì cần chuyển qua lắp cảm ứng vi sóng.
Thank you for trusting Kawasan products!
Toll-Free Consulting Hotline: 1800 0058 Or Call Directly: 0911 757 234
Website: www.kawasan.com.vn
