-20%
MS329BE Surface-Mounted Ceiling Microwave Sensor Light
Sold: 22802 sản phẩm
1.120.000 ₫ (VAT included)
MS329BE Surface-Mounted Ceiling Microwave Sensor Light:
- Operating voltage: 220-240VAC/50-60Hz
- Detection Angle: 180° / 360°
- LED Power: 16W
- Dimming Power: 3W, low-brightness mode
- Emergency Lighting: 1.2W
- Adjustable Auto-Off Time: 10 seconds to 12 minutes
- Low-Brightness Duration: 90s, 5 minutes, 10 minutes, 30 minutes, OFF (0s), always low-brightness (∞)
- Adjustable Ambient Light Level: 3 LUX (dark) to 2000 LUX (daylight)
- Detection Range: 2–12m, equivalent to a 2–8m detection radius
- Ceiling Mounting Height: 2–4m; wall mounting height: 1.5–3.5m
- Operating temperature: -10+70°C
OUTSTANDING FEATURES OF THE MS329BE SURFACE-MOUNTED CEILING MICROWAVE SENSOR LIGHT CẢM ỨNG VI SÓNG MS329BE
- The MS329BE surface-mounted ceiling sensor light uses highly sensitive microwave sensor technology. It detects movement with a temperature equivalent to the human body temperature of 36–37°C. The microwave sensor is not affected by ambient temperatures above 32°C. It can effectively detect through obstacles such as wood, glass, plasterboard walls, and more.
- The MS329BE motion sensor light has a backup battery that provides 3W illumination for approximately 2 hours during a power outage. It maintains dim 3W illumination when no one is present, ensuring that the corridor remains visible from a distance. When someone enters, the light operates at its normal brightness of 16W, helping save energy more effectively.
- Standard-quality light without glare. The ceiling sensor light has an IP66 waterproof rating, making it suitable for indoor or outdoor installation. Its simple design and high sensitivity make it easy to install and use. Suitable for public restrooms, fitting rooms with multiple partitions, balconies, elevators, office buildings, and more.
DIFFERENCES BETWEEN KAWASAN MICROWAVE SENSOR LIGHTS AND OTHER LIGHTS ON THE MARKET
- KAWASAN microwave sensor LED lights are researched, improved, and manufactured in Vietnam. They have clear certification of origin and meet the needs of the Vietnamese market. They provide high sensitivity, accurate detection, stable operation without flickering, and are less affected by other factors.
- The ceiling sensor light also has a backup battery that provides 3W illumination for approximately 2 hours during a power outage. When no one is moving, the light switches to dim 3W illumination; during normal operation, it provides 16W illumination. In addition, the various adjustable light ON/OFF time settings help save energy and extend the light’s lifespan. (Includes instructions for use in Vietnamese)
- The surface-mounted ceiling microwave sensor light is a premium sensor light, unlike conventional lights on the market that are less expensive. However, these products often do not deliver the stated power, and their sensitivity is not properly adjusted. Some may be overly sensitive, causing the light to remain on continuously, while others may not be sensitive enough to turn on when someone enters.
- Kawasan motion sensor lights typically have a durability of >5 years and a 2-year warranty. In comparison, products on the market generally last approximately 1 year and come with warranties ranging from 3 months to 1 year. Although they are less expensive, the cost of purchasing replacements over 3 years is actually much higher.
WHERE ARE MOTION SENSOR LIGHTS COMMONLY USED?
KAWASAN microwave sensor lights can be installed on ceilings or walls in locations such as:- Balconies, hallways, two-way staircases, living rooms, waiting rooms, kitchens, and more.
- Public areas such as changing rooms, restrooms, emergency exits, and more.
- Stores, showrooms, warehouses, offices, hotels, garages, and more.
SURFACE-MOUNTED CEILING MICROWAVE SENSOR LIGHTS PROVIDE CONVENIENCE FOR USERS
- Safe for users: Helps protect children and elderly people from electrical hazards and bacterial exposure because there is no need to touch the device directly as with conventional switches.
- Anti-theft: Because the microwave sensor can detect through plasterboard walls, wooden doors, glass doors, plastic, and more, the light may turn on when an intruder approaches the house.
- Energy and cost savings: No need to install multiple infrared sensor lights at the same time. Saves more energy with the option to turn off completely or maintain dim lighting when no movement is detected.

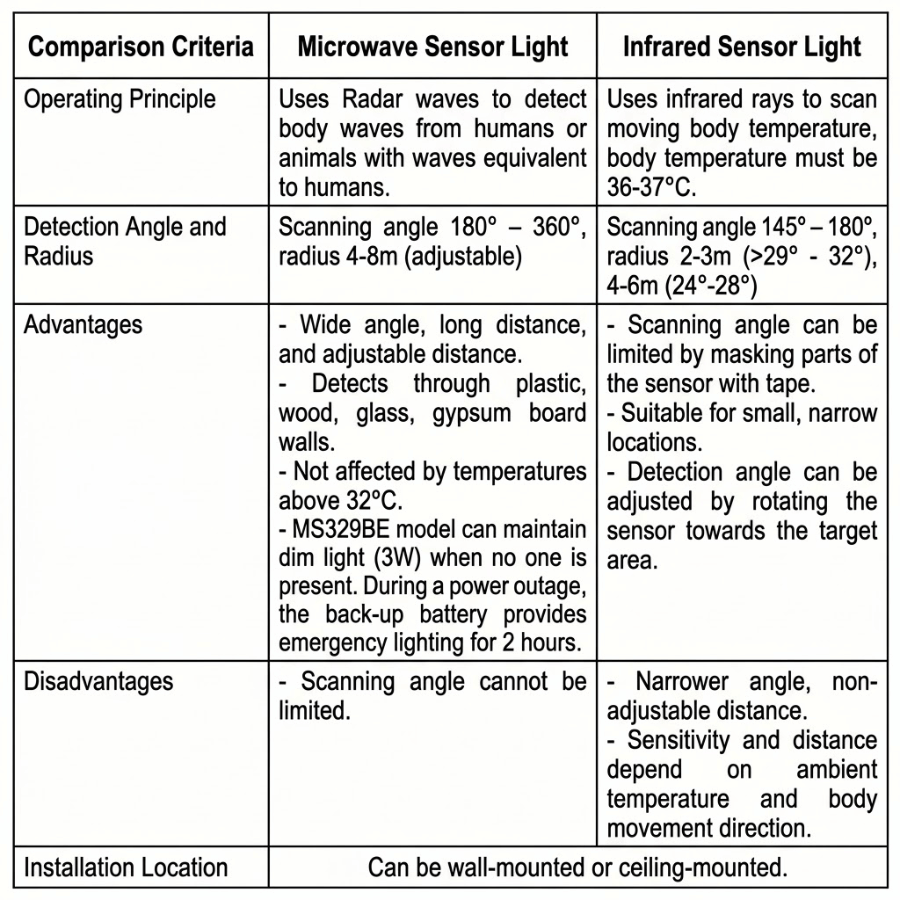

COMPARISON BETWEEN INFRARED SENSOR LIGHTS AND MICROWAVE SENSOR LIGHTS
>>> See more: Kawasan infrared sensor lights
- Using 5.8GHz radar wave technology
- Operating voltage: 220-240VAC/50-60Hz
- Detection Angle: 180° / 360°
- LED Power: 16W
- Dimming Power: 3W, low-brightness mode
- Emergency Lighting: 1.2W
- Adjustable Auto-Off Time: 10 seconds to 12 minutes
- Low-Brightness Duration: 90s, 5 minutes, 10 minutes, 30 minutes, OFF (0s), always low-brightness (∞)
- Adjustable Ambient Light Level: 3 LUX (dark) to 2000 LUX (daylight)
- Detection Range: 2–12m, equivalent to a 2–8m detection radius
- Ceiling Mounting Height: 2–4m; wall mounting height: 1.5–3.5m
- Operating temperature: -10+70°C
FUNCTION OF ADJUSTABLE BUTTONS:
- LUX Knob :Điều chỉnh chế độ nhận biết môi trường sáng hay tối để kích hoạt chế độ cảm biến hoạt động mở đèn:
- Nếu người dùng điều chỉnh nút LUX xoay về phía “sun “thì cảm biến sẽ luôn luôn làm việc trong bất kỳ môi trường sáng hoặc tối, nghĩa là hoạt động cả ngày và đêm.
- Nếu người dùng điều chỉnh nút LUX xoay về phía “Số 30 “thì cảm biến chỉ làm việc khi môi trường thiếu ánh sáng (sáng mờ) nghĩa là chỉ cảm ứng bật đèn trong môi trường sáng mờ.
- Nếu người dùng điều chỉnh nút LUX xoay về phía “Số 300 “thì cảm biến sẽ làm việc trong môi trường có sánh sáng nhẹ (ánh sáng đèn hắt hoặc trời chuyển mưa..)
Chú ý: Khi ánh sáng của đèn khác chiếu vào làm ảnh hưởng sự cảm nhận ánh sáng môi trường làm cho đèn không cảm ứng thì chỉnh tăng lên, từ 30 lên 300 hoặc từ 300 lên mặt trời.
- Nút SENS: Điều chỉnh khoảng cách phát sóng để nhận chuyển động, tối thiểu 2m“Dấu – ; “ khoảng cách chỉnh tối đa 8m“Dấu + “
- TIME button :Điều chỉnh thời gian tự tắt, trong khoảng thời gian có thể chỉnh tự tắt từ 10 giây đến 12 phút.Thời gian trễ này sẽ được bắt đầu tính lại trong chu kỳ cảm ứng mới
- Nút STBY:
- 0s: Không để chế độ sáng mờ (khi không có người thì tắt hẳn)
- 90s – 5min – 10min-30min: Là thời gian đén sẽ duy trì sáng mờ (3w) sau khi không có người di chuyển (90 giây, 5 phút, 10 phút, 30 phút).
- ∞: Chức năng sáng mờ (3w) duy trì liên tục khi không có người di chuyển
CÁCH LẮP ĐẶT VÀ ĐẤU DÂY:
- Gắn nổi trần, gắn tường…
- Cắm Jack nối nguồn Pin sạc dự phòng
- Đấu nối nguồn chính
- Cố Định Mâm Đèn Lên Trần
MÔ TẢ GÓC QUÉT CẢM ỨNG:
ATTENTION:
- Turn off the power before connecting the device
- Kết nối dây nguồn ( Teminal N and L đấu vào nguồn điện 220VAC, N là dây mass)
MỘT SỐ VẤN ĐỀ THƯỜNG XẢY RA VÀ CÁCH KHẮC PHỤC:
-
Tải không làm việc (Đèn Led không sáng):
a. Check whether the power source to the light bulb connected to the sensor is output?
b. Check to see if there is any problem with the light bulb.
c. Kiểm tra nút chỉnh Lux đã phù hợp với ánh sáng làm việc của môi trường chưa?.
-
Poor sensitivity:
a. Kiểm tra nút SENS đã chỉnh khoảng cách hợp lý chưa?
b. Check installation height.
-
Cảm ứng không thể tự tắt tải (Đèn Led không tắt):
a. Kiểm tra xem có bị nhiễu tín hiệu cao tần trong vùng làm việc không?
b.Kiểm tra xem xung quanh có thân nhiệt liên tục di chuyển trong vùng cảm ứng không?
c.Kiểm tra nút SENS điều chỉnh khoảng cách quá xa không?
d. Thời gian trễ Time điều chỉnh có dài quá không?
Thank you for trusting Kawasan products!
Toll-Free Consulting Hotline: 1800 0058 Or Call Directly: 0911 757 234
Website: www.kawasan.com.vn
