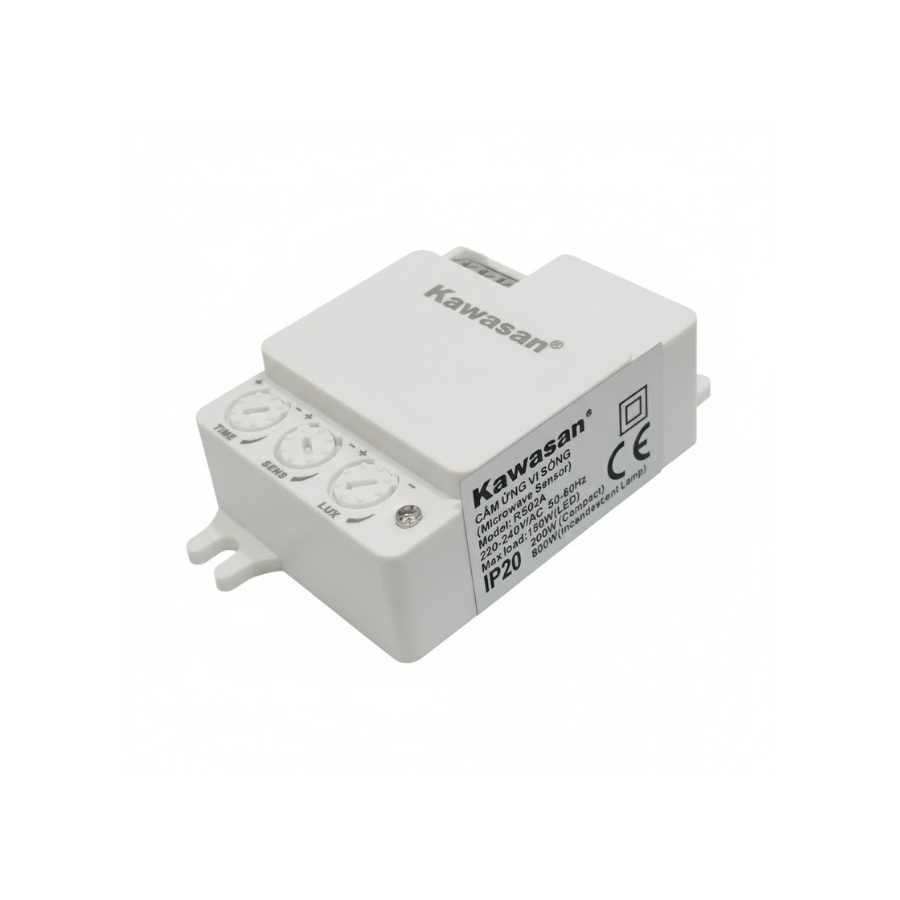

Microwave Touch Switch RS02A

Sold: 5 sản phẩm

256.000  (VAT included)

Microwave touch switch RS02A:

  • Using 5.8GHz radar wave technology (does not affect health)
  • Operating voltage: 110-240VAC/50-60Hz
  • Detection Angle: 360° / 180°
  • Sensing radius: 2-6m
  • Auto-off adjustment time: 10 (+/-3) seconds to 15 (+/-3) minutes
  • Operating sensor brightness adjustment: from 3LUX(dark) to 2000LUX(bright)
  • No-load power consumption: <0.5W
  • Output power: 150W (LED), 1200W (incandescent lamp), 300W (compact lamp)
  • Operating temperature: -10+70°C
  • Installation height: 2-6m
SKU: RS02A

FEATURES OF MICROWAVE TOUCH SWITCH RS02A

  • RS02A is a 5.8GHz radar microwave sensor switch, super sensitive motion sensor. When there is movement in the sensor area, a signal will be activated to tell the switch (Relay) to turn on the light. Not affected by ambient temperature >32°C. Can penetrate obstacles such as: wooden walls, glass, thin walls, plaster...
  • Sensor switch RS02A automatically turns on the light when someone moves in the scanning area. With distance adjustment function (SENS), helps adjust the touch radius to suit the space used.
  • Combined with degree adjustment function LUX (light/dark) of the environment. The sensor can be adjusted day/night or night depending on usage needs.
  • Knot TIME Adjustable auto-off delay time, continuous motion detection feature. So the light opening time is maintained within the set time, until there is no more movement in the sensor area, the device will turn the light on and off.

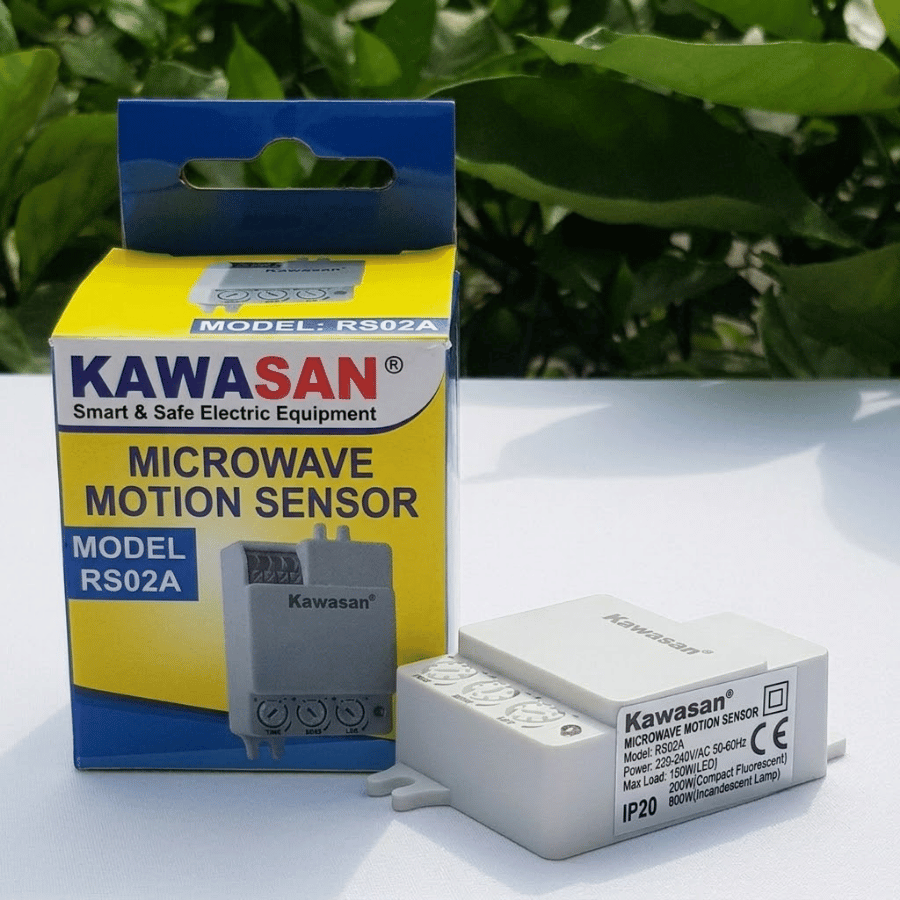

Công tắc cảm biến vi sóng RS02A
Microwave sensor switch RS02A

BENEFITS WHEN USING MOTION SENSOR SWITCHES

  • Safe for children and the elderly who have to fumble for the switch to turn on the stairs and toilet lights when going to the bathroom. Avoid the risk of electric shock, due to electric leakage or wet hands coming into contact with traditional mechanical switches.
  • Save energy because you avoid forgetting to turn off the power every time you leave. Especially families with children.
  • Save costs when you don't need to install many infrared sensors. Can be recessed into lighting fixtures such as ceiling lights, balcony lights, etc.
  • Helps families prevent theft because microwave sensors can penetrate plaster walls, wooden doors, glass doors, plastic doors, etc., so they can turn on the light if a thief approaches the house.
  • Not affected by environmental temperatures above 32 degrees Celsius
  • Can be recessed into existing ceiling lights, turning them into touch lights without needing to replace them. Install the mark on the ceiling, inside the plastic switch, avoid sticking out and causing loss of aesthetics,...​

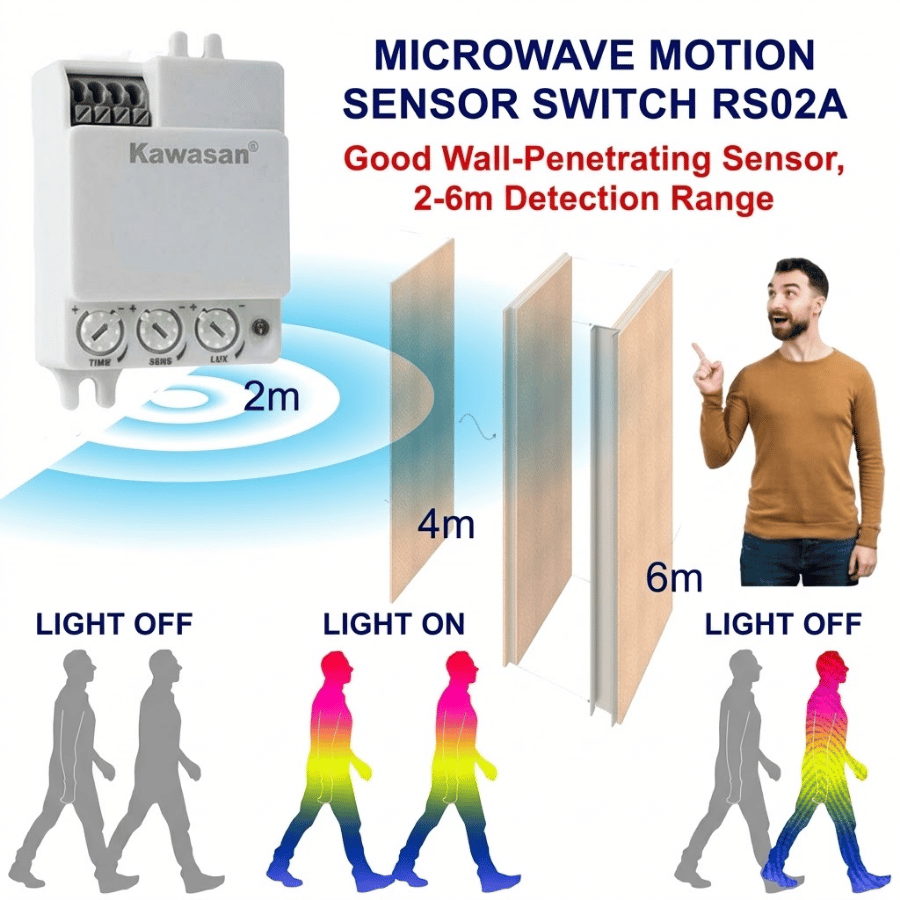

Cảm ứng xuyên vật cản tốt và không bị ảnh hưởng bởi nhiệt độ
The sensor penetrates obstacles well and is not affected by temperature

HOW IS RS02A MICROWAVE RADAR SENSOR APPLIED?

  • Install additional ceiling lights, ceiling lights or tube lights in: showrooms, bus station waiting rooms, apartment corridors, stairs, warehouses...
  • Install additional lights on public WCs, family WCs with partitions: WCs often have built-in ceiling lights, 1.2m lights, recessed ceiling lights..., and add microwave sensors to become touch lights. Some toilets with partitions need to install microwave sensors to be able to sense through the partition. If you install an infrared sensor, it will not be suitable.

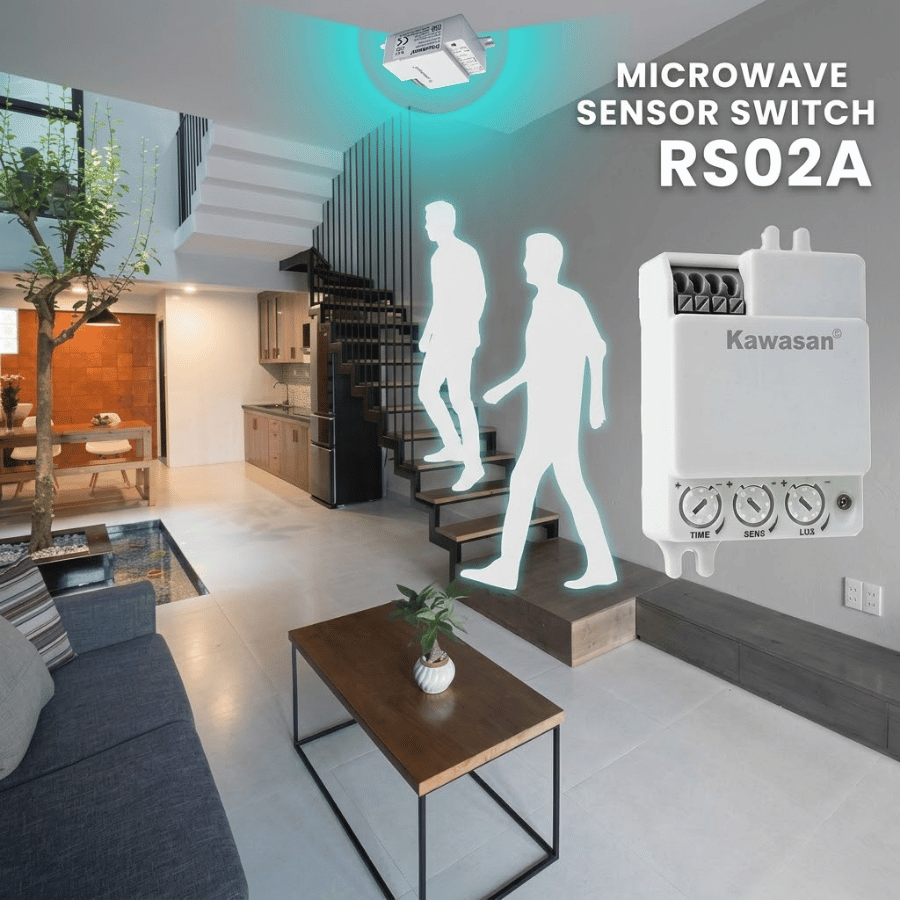

Công tắc cảm ứng vi sóng RS02A phù hợp lắp đặt cho hành lang, cầu thang...
Microwave touch switch RS02A is suitable for installation in hallways, stairs...

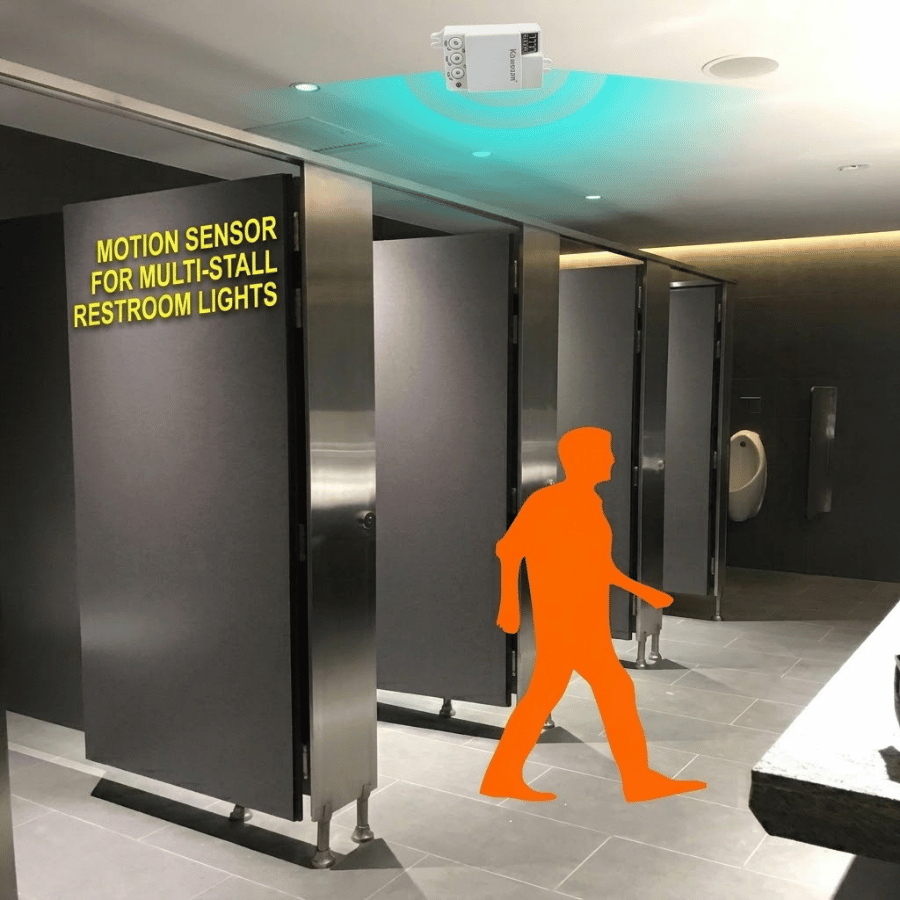

Ứng dụng cho nhà vệ sinh có vách ngăn hoặc phòng thử đồ tại các shop
Application for toilets with partitions or fitting rooms at shops

WHY YOU SHOULD CHOOSE KAWASAN MOTION SENSOR SWITCH

  • Kawasan is the leading smart electricity brand in Vietnam from 2007 to present. The product is developed based on thorough research on Vietnamese consumer habits. Environmental temperature conditions follow Vietnam's climate, can withstand heat, and are little affected by environmental temperature.
  • Products are constantly researched and improved, and the quality is increasingly improving. All components are carefully selected, ensuring high durability. Meets the harshest environmental and continuous use conditions.
  • 2-year warranty policy and guaranteed durability of over 5 years. During 5 years, we commit to a free warranty if the goods have technical errors due to objective factors.
  • Kawasan has a system of care and warranty offices throughout the North - Central - South regions. Distributors in most provinces and cities nationwide. Warranty service is always ready to support customers in the best way.

WHY CHOOSE KAWASAN?

  • A Leading Vietnamese Brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
  • High durability with selected components– Stable operation even in harsh weather conditions
  • Superior Warranty Policy– Repair support is available even after the warranty period if the product can still be restored
  • Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
  • 24/7 Support Service, with a nationwide dealer network

Kawasan Commitment

Kawasan is committed to providing products genuine – durable – safe, fully meeting all technical standards and practical usage requirements. All products are covered by warranty free of charge for 24 months, with 1-for-1 replacement within 30 days for technical defects. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant. Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.

Thank you for trusting Kawasan products!

Toll-Free Consulting Hotline: 1800 0058

Website:  www.kawasan.vn

Website:  www.kawaled.com.vn

  • Using 5.8GHz radar wave technology (does not affect health)
  • Operating voltage: 110-240VAC/50-60Hz
  • Detection Angle: 360° / 180°
  • Sensing radius: 2-6m
  • Auto-off adjustment time: 10 (+/-3) seconds to 15 (+/-3) minutes
  • Operating sensor brightness adjustment: from 3LUX(dark) to 2000LUX(bright)
  • No-load power consumption: <0.5W
  • Output power: 150W (LED), 1200W (incandescent lamp), 300W (compact lamp)
  • Operating temperature: -10+70°C
  • Installation height: 2-6m
Attention: Do not install the device in a metal box, near a microwave, etc., as this will reduce the touch sensitivity.
Thông số kỹ thuật
Specifications
Cấu tạo chi tiết công tắc cảm biến RS02A
Detailed structure of RS02A sensor switch

SOME COMMON PROBLEMS AND HOW TO FIX THEM

The load does not work (the light bulb does not light up):

a. Check whether the power source to the light bulb connected to the sensor is output?
b. Check to see if there is any problem with the light bulb.
c. Check whether the Lux adjustment button is suitable for the working light of the environment?

 Poor sensitivity:

a. Check if the SENS button is adjusted to a reasonable distance?
b. Check installation height.
c. Is the light from another lamp shining on the sensor? If so, should it be adjusted?
Lux level increases to increase touch sensitivity.
d. Check to see if there are any metal or wooden obstacles >10mm thick?

The sensor cannot automatically turn off the load (the light does not turn off):

a. Check to see if there is high frequency signal interference in the working area?
b. Check to see if there is body heat constantly moving around in the sensor area?
c. Check if the distance adjustment SENS button is too far?
d. Is the adjustment time delay too long?
e. Check to see if the electrical wiring installation is correct?

Thank you for trusting Kawasan products!

Technical consulting phone number: 1800.0058 (toll free) or call directly: 0911 757 234

Website: www.kawasan.com.vn

Description

FEATURES OF MICROWAVE TOUCH SWITCH RS02A

  • RS02A is a 5.8GHz radar microwave sensor switch, super sensitive motion sensor. When there is movement in the sensor area, a signal will be activated to tell the switch (Relay) to turn on the light. Not affected by ambient temperature >32°C. Can penetrate obstacles such as: wooden walls, glass, thin walls, plaster...
  • Sensor switch RS02A automatically turns on the light when someone moves in the scanning area. With distance adjustment function (SENS), helps adjust the touch radius to suit the space used.
  • Combined with degree adjustment function LUX (light/dark) of the environment. The sensor can be adjusted day/night or night depending on usage needs.
  • Knot TIME Adjustable auto-off delay time, continuous motion detection feature. So the light opening time is maintained within the set time, until there is no more movement in the sensor area, the device will turn the light on and off.
Công tắc cảm biến vi sóng RS02A
Microwave sensor switch RS02A

BENEFITS WHEN USING MOTION SENSOR SWITCHES

  • Safe for children and the elderly who have to fumble for the switch to turn on the stairs and toilet lights when going to the bathroom. Avoid the risk of electric shock, due to electric leakage or wet hands coming into contact with traditional mechanical switches.
  • Save energy because you avoid forgetting to turn off the power every time you leave. Especially families with children.
  • Save costs when you don't need to install many infrared sensors. Can be recessed into lighting fixtures such as ceiling lights, balcony lights, etc.
  • Helps families prevent theft because microwave sensors can penetrate plaster walls, wooden doors, glass doors, plastic doors, etc., so they can turn on the light if a thief approaches the house.
  • Not affected by environmental temperatures above 32 degrees Celsius
  • Can be recessed into existing ceiling lights, turning them into touch lights without needing to replace them. Install the mark on the ceiling, inside the plastic switch, avoid sticking out and causing loss of aesthetics,...​
Cảm ứng xuyên vật cản tốt và không bị ảnh hưởng bởi nhiệt độ
The sensor penetrates obstacles well and is not affected by temperature

HOW IS RS02A MICROWAVE RADAR SENSOR APPLIED?

  • Install additional ceiling lights, ceiling lights or tube lights in: showrooms, bus station waiting rooms, apartment corridors, stairs, warehouses...
  • Install additional lights on public WCs, family WCs with partitions: WCs often have built-in ceiling lights, 1.2m lights, recessed ceiling lights..., and add microwave sensors to become touch lights. Some toilets with partitions need to install microwave sensors to be able to sense through the partition. If you install an infrared sensor, it will not be suitable.
Công tắc cảm ứng vi sóng RS02A phù hợp lắp đặt cho hành lang, cầu thang...
Microwave touch switch RS02A is suitable for installation in hallways, stairs...
Ứng dụng cho nhà vệ sinh có vách ngăn hoặc phòng thử đồ tại các shop
Application for toilets with partitions or fitting rooms at shops

WHY YOU SHOULD CHOOSE KAWASAN MOTION SENSOR SWITCH

  • Kawasan is the leading smart electricity brand in Vietnam from 2007 to present. The product is developed based on thorough research on Vietnamese consumer habits. Environmental temperature conditions follow Vietnam's climate, can withstand heat, and are little affected by environmental temperature.
  • Products are constantly researched and improved, and the quality is increasingly improving. All components are carefully selected, ensuring high durability. Meets the harshest environmental and continuous use conditions.
  • 2-year warranty policy and guaranteed durability of over 5 years. During 5 years, we commit to a free warranty if the goods have technical errors due to objective factors.
  • Kawasan has a system of care and warranty offices throughout the North - Central - South regions. Distributors in most provinces and cities nationwide. Warranty service is always ready to support customers in the best way.

WHY CHOOSE KAWASAN?

  • A Leading Vietnamese Brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
  • High durability with selected components– Stable operation even in harsh weather conditions
  • Superior Warranty Policy– Repair support is available even after the warranty period if the product can still be restored
  • Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
  • 24/7 Support Service, with a nationwide dealer network

Kawasan Commitment

Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements.
All products are covered by warranty free of charge for 24 months, with 1-for-1 replacement within 30 days for technical defects. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant.

Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.

Thank you for trusting Kawasan products!

Toll-Free Consulting Hotline: 1800 0058

Website:  www.kawasan.vn

Website:  www.kawaled.com.vn
