Description

FEATURES OF THE SS30B INFRARED SENSOR SWITCH

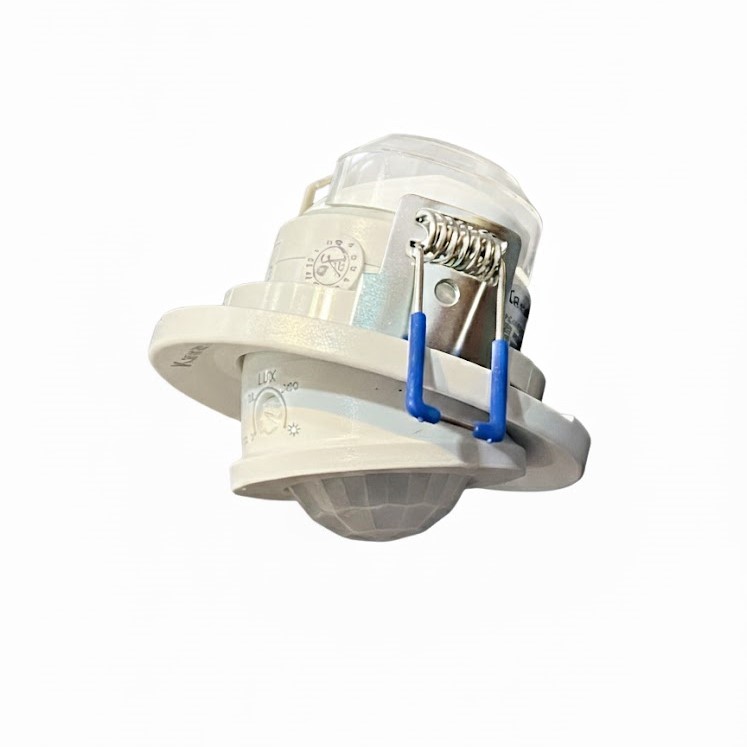

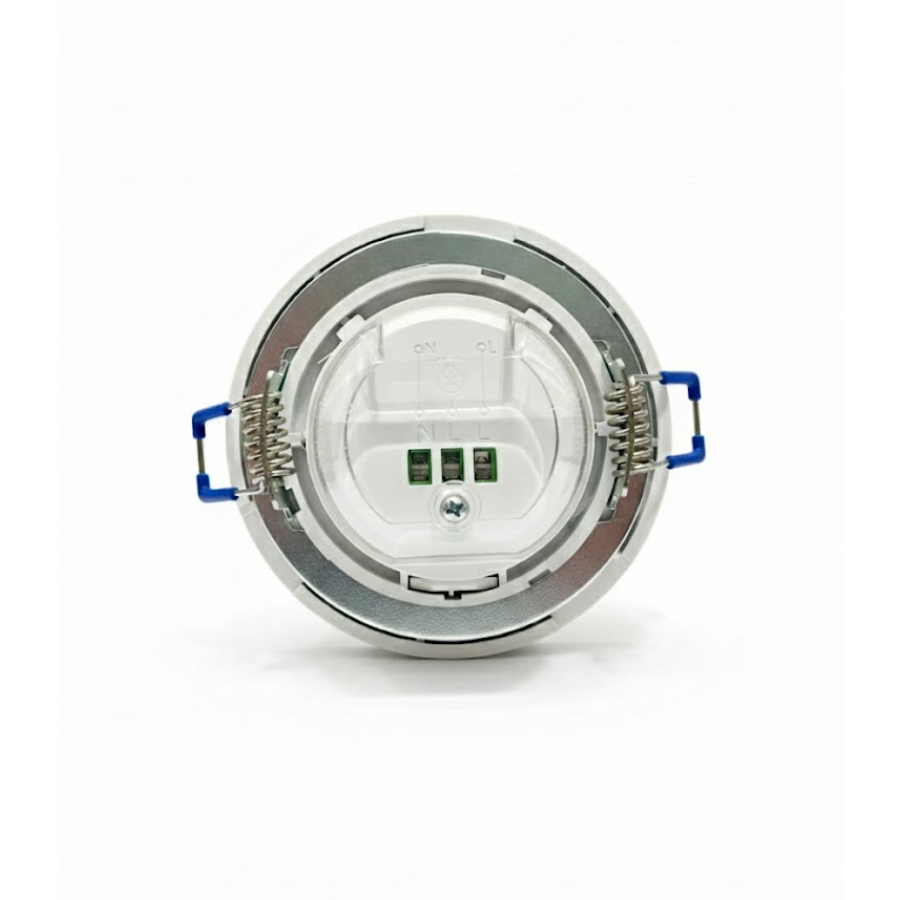

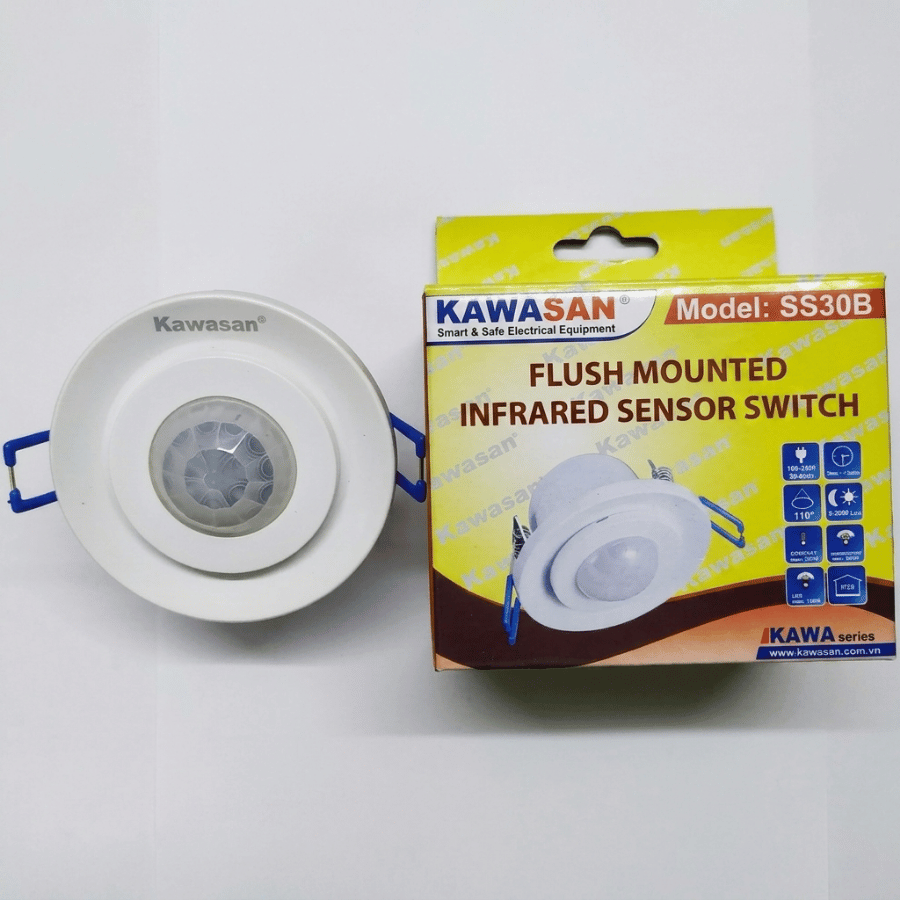

The SS30B is a highly sensitive recessed ceiling infrared sensor switch. It can detect body-heat movement from people and animals at approximately 36–37°C. Its compact and attractive design is suitable for recessed installation in plaster ceilings. In particular, the sensor eye can be rotated toward the required detection areas, helping limit detection toward unnecessary directions or areas.

The SS30B motion sensor switch has 2 adjustment knobs:

When body-heat movement is detected within the sensing area, the light switch automatically turns ON. In addition, it also has a light sensor to measure the brightness of the surrounding environment. If the user adjusts the LUX knob to the nighttime setting, the sensor will stop detecting body-heat movement when there is sufficient ambient light. This function allows the sensor to operate fully automatically. Users do not need to turn off the switch during the daytime when there is enough natural light in areas such as staircases, balconies, hallways, and yards, because the sensor automatically detects the ambient light level. Only when the environment is dark will it activate the infrared sensing function.

In addition, the SS30B motion sensor switch also has a TIME knob for adjusting the delay time. When no one is moving within the sensing area, the countdown begins and the light automatically turns OFF. If someone continues moving within the sensing area during the set delay time, the switch will remain ON. This helps maintain the necessary lighting while users are present, especially in commercial areas such as showrooms, waiting rooms, garages, parking areas, and more.

WHERE SHOULD THE SS30B INFRARED SENSOR SWITCH BE USED?

• Organizations that need to save electricity: Areas such as waiting rooms, showrooms, and garages require a large amount of electricity to maintain lighting. When no one is present or when there are no customers late at night, the lights may still remain fully ON, causing unnecessary electricity waste. Some organizations also assign staff to monitor and turn off the lights, creating additional and unnecessary personnel costs.
• Office buildings, apartments, and residential buildings: Areas such as staircases, hallways, emergency exits, and more often have lights turned ON continuously. Even during the daytime when there is sufficient natural light, the lights may still remain ON, although the electricity costs are paid by companies and residents. However, by saving electricity, the investment cost of purchasing the equipment can be recovered within a short period of time. It also helps contribute to reducing environmental pollution.
• Households: Suitable areas include hallways, staircases, restrooms, garages, and more. Although the amount of electricity saved may not be significant, it is still completely worthwhile in terms of convenience, safety, and security.

UNEXPECTED BENEFITS OF INFRARED SENSOR SWITCHES

• Every day, we go outside, come into contact with many people, and touch many surfaces. When we return home and touch switches in restrooms, staircases, and other areas to turn on the lights, we may unintentionally bring germs and viruses into the home. Young children and elderly people are more vulnerable to respiratory illnesses, colds, digestive problems, and more. Medical treatment costs may be much higher!
• For families with elderly people, installing sensor switches in restrooms, hallways, and staircases is very useful. Elderly people often have poor eyesight and difficulty walking, so having to search for and turn on a light switch can be dangerous.
• For families living in areas where theft is common, if an intruder enters the house, the light will automatically turn ON. The intruder may panic, think someone has woken up and turned on the light, and then run away.

WHICH TYPE OF MOTION SENSOR SWITCH IS SUITABLE AND HIGH QUALITY?

Khác với đui đèn cảm ứng thông thường (chỉ lắp được 1 bóng đèn, đui xoáy E27). Công tắc cảm ứng chuyển động SS30B có thể lắp ra 1 hoặc nhiều bóng đèn song song.

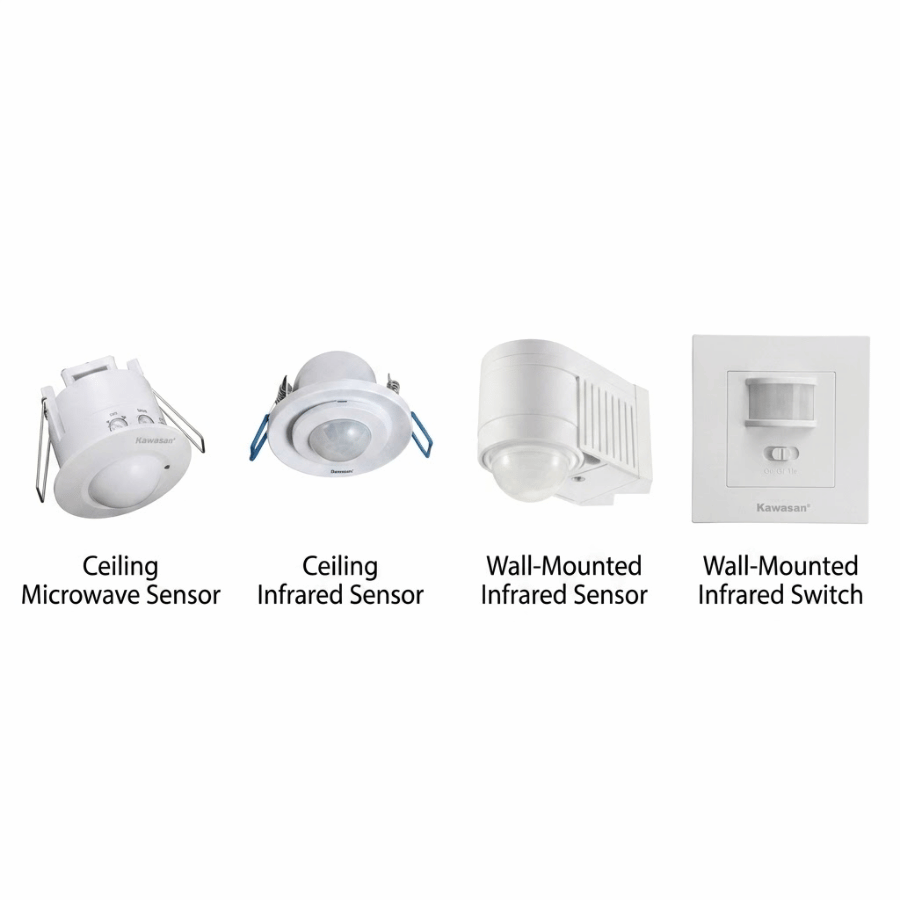

Đối với công tắc cảm ứng chuyển động, thường có 2 kiểu nguyên lý hoạt động là cảm biến hồng ngoại và cảm biến vi sóng Rada. Hình dáng thiết kế cũng rất đa dạng gồm loại 1 mắt cảm biến, loại 3 mắt cảm biến. Còn có loại lắp nổi trần, lắp âm trần, lắp nổi tường, lắp âm tường, lắp góc tường…Vậy nên chọn loại nào phù hợp là điều không hề đơn giản.

See detailed information about motion sensor switch on the Kawasan website.

Việc chọn sản phẩm chất lượng, độ bền cao >5 năm, dịch vụ sau bán tốt thì còn phức tạp hơn nhiều. Vì trên thị trường hiện nay, việc nhập hàng từ nước ngoài về để đặt một nhãn hiệu rồi bán ra kiếm lời là không hề khó. Khá nhiều người dùng mất dần lòng tin về chất lượng của thiết bị điện tự động nói chung và công tắc cảm ứng nói riêng. Đa phần người dùng đều phát biểu là sản phẩm không ổn định, mau hư, cảm ứng loạn xạ, không dùng được…!

Below are specific situations and recommendations on which type to choose for suitable and reliable use.

1. For small restrooms: Choose the SS702B surface-mounted ceiling infrared sensor or SS30B recessed ceiling infrared sensor. It should be connected in series with the existing light, with the delay time set to 3–5 minutes or more.
2. For large restrooms with glass partitions: Choose the RS04 recessed ceiling microwave sensor or the RS03B slim surface-mounted ceiling microwave sensor, and adjust the detection range to suit the required area.
3. For staircases: Choose a microwave sensor such as RS02D or RS03B. Install it in the middle of the staircase, next to the existing light, to provide a wide 150–160° detection angle, covering both the upper and lower staircase areas.
4. For hallways and balconies:

• If the hallway or balcony is close to a walkway or road with many people passing by, choose an infrared sensor. Part of the sensing area facing the road can be covered with tape to prevent the light from turning on unnecessarily.
• For hallways and walkways in hotels, bus stations, and showrooms, use RS03B or RS04 microwave sensors for longer detection range and higher sensitivity.
• For outdoor hallways, choose the SS782 infrared sensor. The RS05B microwave sensor can also be used because it provides excellent moisture resistance.

Kawasan is a reputable brand in the market, established since 2007. Kawasan is committed to a service life of more than 5 years and has a professional technical consulting team. It is always a top choice for customers.

WHY SHOULD YOU CHOOSE KAWASAN INFRARED SENSOR SWITCHES?

• Kawasan has been a leading sensor electrical brand in Vietnam since 2007. Its products are developed based on careful research into the habits of Vietnamese consumers and Vietnam’s climate conditions. The devices can withstand high temperatures and are less affected by ambient temperature.
• Kawasan continuously improves its products and carefully selects components to ensure high durability and reliable performance, even under continuous use and demanding conditions.
• Customer consultation and after-sales service are highly valued. Consultation is available through a 24/7 toll-free hotline. Kawasan has a network of offices and distributors in most provinces and cities nationwide. Warranty services are always ready to provide customers with the best possible support. Even after the 2-year warranty period, if a technical issue can still be repaired, Kawasan is willing to provide free repair service, helping users minimize repair and replacement costs.

WHY CHOOSE KAWASAN?

• A Leading Vietnamese Brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
• High durability with selected components– Stable operation even in harsh weather conditions
• Superior Warranty Policy– Repair support is available even after the warranty period if the product can still be restored
• Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
• 24/7 Support Service, with a nationwide dealer network

Kawasan Commitment

Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements.
All products are covered by warranty free of charge for 24 months, with 1-for-1 replacement within 30 days for technical defects. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant.

Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.

Thank you for trusting Kawasan products!
