OUTSTANDING FEATURES OF THE SS282 INFRARED SENSOR SWITCH
The SS282 is a high-end infrared sensor switch. It is integrated with 3 sensor eyes, providing excellent sensitivity and detection range. The infrared switch can detect body-heat movement at 36–37°C to turn lights ON and OFF, even with very small movements.
The SS282 switch can detect body-heat movement from all directions without reduced sensitivity like conventional single-eye infrared sensors. The
SS282 Infrared Sensor Switch features a new compact and attractive design. It is equipped with an outer cover to protect the adjustment knobs inside and help reduce false triggering.
With high sensitivity and a long detection range, it is suitable for public areas such as waiting rooms, parking areas, large yards, wide hallways, and more.
SS282 Infrared Sensor SwitchThe back panel provides complete information for convenient use.
The TIME delay can be extended up to 15 minutes. This helps keep public lighting systems continuously ON when people are frequently passing through the area. The light will only turn OFF completely when no movement is detected for a continuous 15-minute period (when the TIME knob is set to the maximum). It is suitable for surface-mounted ceiling installation in areas such as garages, hallways, waiting rooms, and more.
Waiting areas, platforms, parking basements, large living rooms, and more.
Waiting areas, platforms, parking basements, large living rooms, and more.
WHICH SENSOR SWITCHES HAVE 3 SENSOR EYES LIKE THE SS282?
Most conventional infrared sensor switches are designed with only 1 PIR infrared sensor inside. Therefore, they have limitations in detection distance, sensitivity, and the direction of body-heat movement (movement must cross the sensing beam).
Kawasan has introduced 4 sensor switch models with 3 infrared sensor eyes. Below are 3 different designs to meet customers’ various installation needs:
1/ SS302 Infrared Sensor Switch. Mainly used for recessed ceiling installation, suitable for waiting rooms, showrooms, and other areas with plaster ceilings. (Not recommended for small areas under 10m²).2).
SS302 Infrared Sensor Switch
2/ SS782 Infrared Sensor Switch. Mainly used for surface-mounted wall installation or mounting on wall corners/columns to provide a 270° detection angle.0 Suitable for areas such as garages, parking areas, hallways, large yards, and more.
SS782 Infrared Sensor Switch
3/ SS786 Infrared Sensor Switch. Mainly used for installation on concrete ceilings and walls. The sensor can be rotated and tilted to adjust the detection angle, making it suitable for locations where it is difficult to position the sensor for the desired detection coverage.
SS786 Infrared Sensor Switch

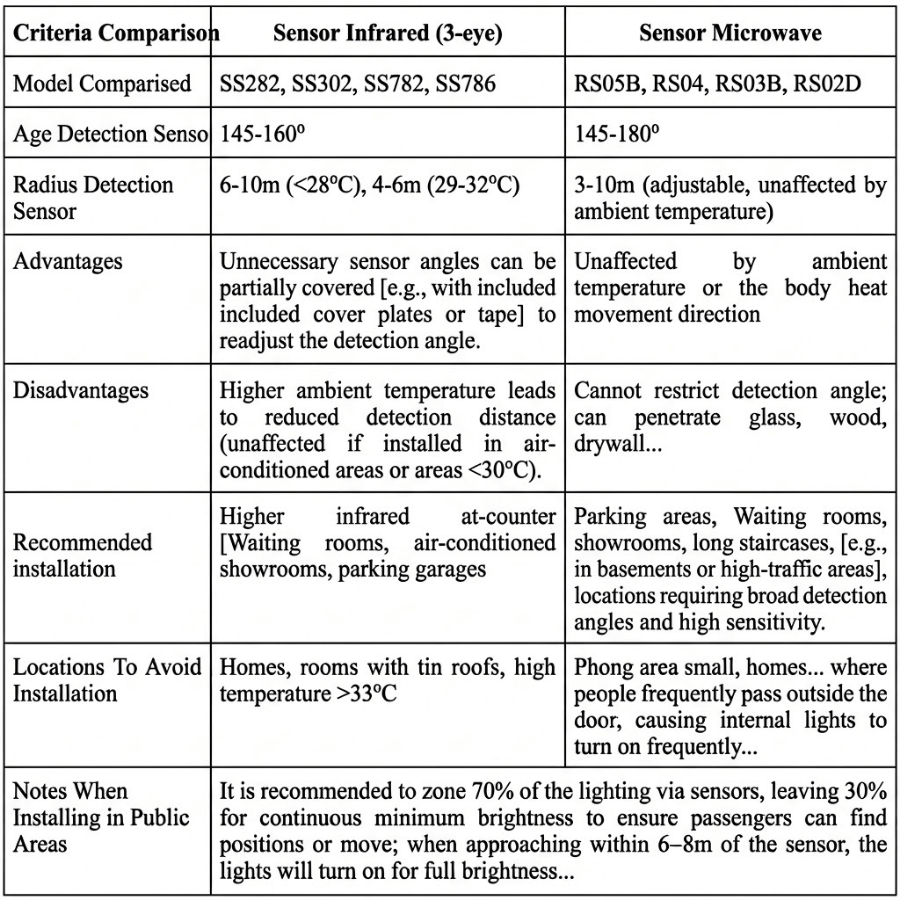

HOW IS A 3-PIR INFRARED SENSOR DIFFERENT FROM A MICROWAVE SENSOR?
WHAT BENEFITS DO 3-PIR INFRARED SENSOR SWITCHES PROVIDE?
Save electricity, invest with great capital return and profit: For public areas such as waiting rooms, garages, and parking areas, electricity consumption for lighting is very high. If 30–50% of electricity can be saved, the amount saved is significant. The investment can be recovered in only about 12–24 months, while Kawasan products have a service life of more than 5 years.
Reduce personnel costs and save time: Most waiting rooms and public parking areas are very large, so staff often need to be assigned to monitor and control the lighting system. This can create unnecessary personnel costs.
Reduce maintenance costs, purchase and replacement costs of light bulbs:The lighting system does not need to operate continuously when no one is present. This helps extend lamp life by up to 50% and reduce annual maintenance costs for organizations.
Reduce the risk of fire and explosion: Lighting systems and exhaust fans do not need to operate continuously, helping reduce heat generation and limit the risk of fire.
Safe for users
Anti-theft: When installed at gates, walkways, rear hallways, balconies, and similar areas, the light turns on when an intruder enters and may scare the intruder away.
Helps homeowners deter intruders
MOTION SENSOR SWITCHES ARE WIDELY USED IN MANY DIFFERENT AREAS
Surface-mounted ceiling installation, connected to existing lighting and decorative lights to automatically turn the lighting system ON/OFF in areas such as:
Bus station/airport waiting rooms, showrooms, hospitals.
Hallways, balconies, and wide staircases in apartment buildings, homes, and hotels.
Tunnel lights, emergency exits, parking areas, garages, and more.
Sensor switches are commonly installed in waiting rooms and hallwaysSensor switches are commonly installed in waiting rooms and hallways
WHICH TYPE OF SENSOR SWITCH IS SUITABLE AND HIGH QUALITY?
Sensor switches generally come in 2 types: infrared sensors and microwave radar sensors. Their designs are also very diverse, including single-sensor-eye and 3-sensor-eye models. There are also surface-mounted ceiling, recessed ceiling, surface-mounted wall, recessed wall, wall-corner installation types, and more. Therefore, choosing the most suitable type is not always simple.
See detailed information about motion sensor switch on the Kawasan website.
Choosing a high-quality product with a service life of more than 5 years and good after-sales service is even more complicated. In today’s market, it is not difficult to import products from overseas, apply a brand name, and sell them for profit. Many users are gradually losing confidence in the quality of automatic electrical devices in general and sensor switches in particular. Most users complain that products are unstable, break down quickly, have erratic sensing, or cannot be used properly.
Below are specific situations and recommendations on which type to choose for suitable and reliable use.
For small restrooms: Choose the SS702B surface-mounted ceiling infrared sensor or SS30B recessed ceiling infrared sensor. It should be connected in series with the existing light, with the delay time set to more than 5 minutes.
For staircases: Choose a microwave sensor such as RS02D or RS03B. Install it in the middle of the staircase, next to the existing light, to provide a wide 150–160° detection angle, covering both the upper and lower staircase areas.
For large areas with blind spots, square corners, or flat walls: Use the SS786/SS782 sensor switch. These infrared sensor switches can be tilted up and down and rotated to adjust the sensing angle. They are suitable for public areas such as parking areas, waiting rooms, wide hallways, and more.
For hallways and balconies:
If the hallway or balcony is close to a walkway or road with many people passing by, choose an infrared sensor. Part of the sensing area facing the road can be covered with tape to prevent the light from turning on unnecessarily.
For hallways and walkways in hotels, bus stations, and showrooms, use RS03B or RS04 microwave sensors. The SS282 infrared sensor switch can also be used because these models provide longer detection ranges and higher sensitivity. công tắc cảm biến hồng ngoại SS282. Vì các loại này có độ xa và độ nhạy cao hơn.
For outdoor hallways, choose the SS782 infrared sensor. The RS05B microwave sensor can also be used because it provides excellent moisture resistance.
Kawasan is a reputable brand in the market, established since 2007. Kawasan is committed to a service life of more than 5 years and has a professional technical consulting team. It is always a top choice for customers.
WHY CHOOSE KAWASAN?
A Leading Vietnamese Brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
High durability with selected components– Stable operation even in harsh weather conditions
Superior Warranty Policy– Repair support is available even after the warranty period if the product can still be restored
Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
24/7 Support Service, with a nationwide dealer network
Kawasan Commitment
Kawasan is committed to providing products genuine – durable – safe, fully meeting all technical standards and practical usage requirements.
All products are covered by warranty free of charge for 24 months, with 1-for-1 replacement within 30 days for technical defects. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant.
Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.Buy genuine products at:
Contact the Sales Department directly for wholesale prices, dealer / distributor prices: 0825 411 408 / 0911 757 234
Load Power: 1200W incandescent lamp, 300W compact lamp, 150W LED
Motion Detection Speed: 0.6–1.5m/s
Specifications
CHỨC NĂNG NÚT CHỈNH CỦA CÔNG TẮC CẢM ỨNG
Nút TIME: Điều chỉnh thời gian tự tắt từ 10 giây đến 15 phút. Khi không còn người di chuyển trong vùng quét, công tắc cảm biến sẽ tự tắt đèn sau khoảng thời gian đã chọn. Nếu có người di chuyển liên tục vào vùng quét trong khoảng thời gian đã chỉnh, công tắc sẽ duy trì luôn bật. Giúp duy trì ánh sáng cần thiết khi người dùng đang sinh hoạt.
*** Nên chỉnh khoảng 90s~3 phút (khoảng 30%~50% vị trí điều chỉnh) để hạn chế đèn bị thường xuyên bật tắt. Tránh gây cảm giác không thoải mái khi sử dụng.
Nút LUX: Điều chỉnh chế độ nhận biết môi trường sáng hay tối để kích hoạt chế độ cảm biến. hồng ngoại:
+ Để vị trí mặt trăng: Là điều kiện môi trường tối hoàn toàn cảm ứng mới làm việc
+ Xoay 20%: Là điều kiện môi trường tối tương đương khoảng 18h~19h
+ Xoay 50%: Là điều kiện môi trường sáng ít, tương đương 17h~18h
+ Để vị trí hình mặt trời: Là cảm ứng sẽ làm việc cả môi trường tối và sáng ban ngày
Chú ý: Khi cảm ứng đã bật đèn thì tính năng Lux không còn tác dụng. Khi chỉnh lại độ Lux thì phải tắt nguồn điện và bật lại cho cảm ứng khởi động lại để dò ánh sáng lại.
***Nếu khi tối đèn không bật thì cần tăng độ LUX lên sao cho đèn bật thì mới phù hợp với điều kiện ánh sáng môi trường tại vị trí lắp.
Cách lắp đặt sao cho hướng di chuyển của người vuông góc với tia cảm ứng:
Cách lắp đặt và nối dây:
Cách nối dây điện: L và N là cấp nguồn 220V, A và N là ra đèn
***Chú ý lắp xong cho mạch khởi động và đèn có thể chớp trong vòng 1~2 phút đầu.
Cách lắp đặt và nối dây
CHÚ Ý & CẢNH BÁO:
Người lắp đặt phải có kiến thức và kỹ năng lắp đặt điện
Turn off the power before connecting the device
Kết nối dây nguồn và bóng đèn cho cảm ứng như sơ đồ hướng dẫn
Không lắp thiết bị trong vùng gần mặt phản chiếu mạnh như gương, mặt gỗ bóng…
Không lắp thiết bị trong vùng có tác nhân của gió làm chuyển động rèm cửa, cây cối, quạt hút, lò vi sóng
Chú ý: Khi thử thì nên chỉnh Lux ở vị trí Mặt Trời và thời gian nhỏ nhất ~10s để theo dõi, trong 30 giây đầu cảm ứng cần khởi động và sau đó mới bật đèn khi di chuyển.
MỘT SỐ VẤN ĐỀ THƯỜNG XẢY RA VÀ CÁCH KHẮC PHỤC:
Bóng đèn không làm việc (bóng đèn không sáng):
Check if there is power to the light bulb connected to the sensor?
Check to see if the light bulb has any problems?
Kiểm tra Nút Lux đã phù hợp với ánh sáng làm việc của môi trường chưa. Nên xoay về vị trí mặt trời, nếu chỉnh vị trí (-) Lux thì phải dùng túi đen chụp cảm ứng lại để tạo môi trường giả tối cho cảm ứng hoạt động.
Chỉnh độ LUX để phù hợp với điều kiện môi trường sáng
Poor sensitivity:
Kiểm tra phía trước mắt cảm ứng xem có bị che khuất bởi vật cản không?
Kiểm tra nơi lắp cảm ứng có bị ảnh hưởng bởi ánh sáng đèn khác tác động không, nếu có thì chỉnh Lux lên cao hơn (xoay 30% hoặc 50%)
Kiểm tra xem nhiệt độ môi trường có quá cao không?
Kiểm tra xem hướng di chuyển của người có vuông góc với tia cảm ứng không?
Kiểm tra xem có bị nhiễu tín hiệu sóng từ, sóng hồng ngoại khác trong vùng làm việc không?
Check installation height.
Hướng di chuyển vuông góc với tia cảm ứng sẽ hoạt động tốt hơn
The sensor cannot turn itself off: (the light does not turn off)
Người di chuyển liên tục trong cùng cảm ứng đèn sẽ không tắt
Kiểm xem xung quanh có thân nhiệt liên tục di chuyển trong vùng cảm ứng không? Có gần cửa sổ có gió lùa mạnh không? Có gần lò vi sóng không? Có thể dùng băng keo trắng dán bớt kính cảm ứng lại để hạn chế góc quét.
Is the delay too long?
Check for changes in ambient temperature near sensors, near air conditioning equipment, or near heaters. etc…no?
Không nên lắp công tắc ở các khu vực có gió lùa, cây cảnh nhiều
Cảm ứng hồng ngoại này có thể lắp ra được bao nhiêu bóng đèn, công suất bao nhiêu?
Đa phần cảm ứng hồng ngoại của Kawasan cho ra công suất sử dụng <150w (Đèn LED). Vì vậy có thể lắp song song ra nhiều bóng đèn và tổng công suất cộng lại không được vượt quá 150W. Tuy nhiên, nếu muốn ra đèn có công suất cao hơn thì cần lắp thêm Relay trung gian hoặc khởi động từ để chịu tải lớn hơn.
