Introduction to the KAWASAN RF10A-2RM2C High-Power Remote Control Panel

In today's large-scale industrial and agricultural operations, operating high-power machinery requires accuracy and reliability. However, manually turning electrical equipment on and off can be inconvenient. This traditional method is time-consuming and may involve electrical safety risks.

Therefore, the KAWASAN RF10A-2RM2C High-Power Remote Control Panel was developed. This device is specially designed for electrical systems with very high load requirements. It allows users to quickly and safely turn electrical circuits on or off remotely. The electrical system maintains stable operation under different weather conditions. To explore more high-quality smart solutions, visit the KAWASAN Smart Electrical Products.

The product is especially suitable for high-power water pumps and three-phase motors. It is widely used to control various types of heavy industrial electrical machinery. The manufacturer has designed the product with a strong, enclosed housing. All internal electrical components are neatly and properly arranged. This high-quality construction helps ensure reliable and long-lasting operation in real production environments. The product works well in manufacturing workshops, farms, and large-scale irrigation systems.

Technical Specifications and Identification Features of the 7HP – 63A Version

• Brand: KAWASAN.

• Product Model: RF10A-2RM2C.

• Available Load Ratings: The highest-power 7HP (63A) version is pre-selected and configured on the device. Other available versions include 3HP (25A) and 5HP (40A).

• Operating Voltage: AC 220V.

• Included Remote Control: Operates through a high-quality RM2C RF wireless remote control.

• Remote Control Range: Wireless signal transmission can reach hundreds of meters, depending on the surrounding environment and obstacles.

Detailed Hardware Components and Construction

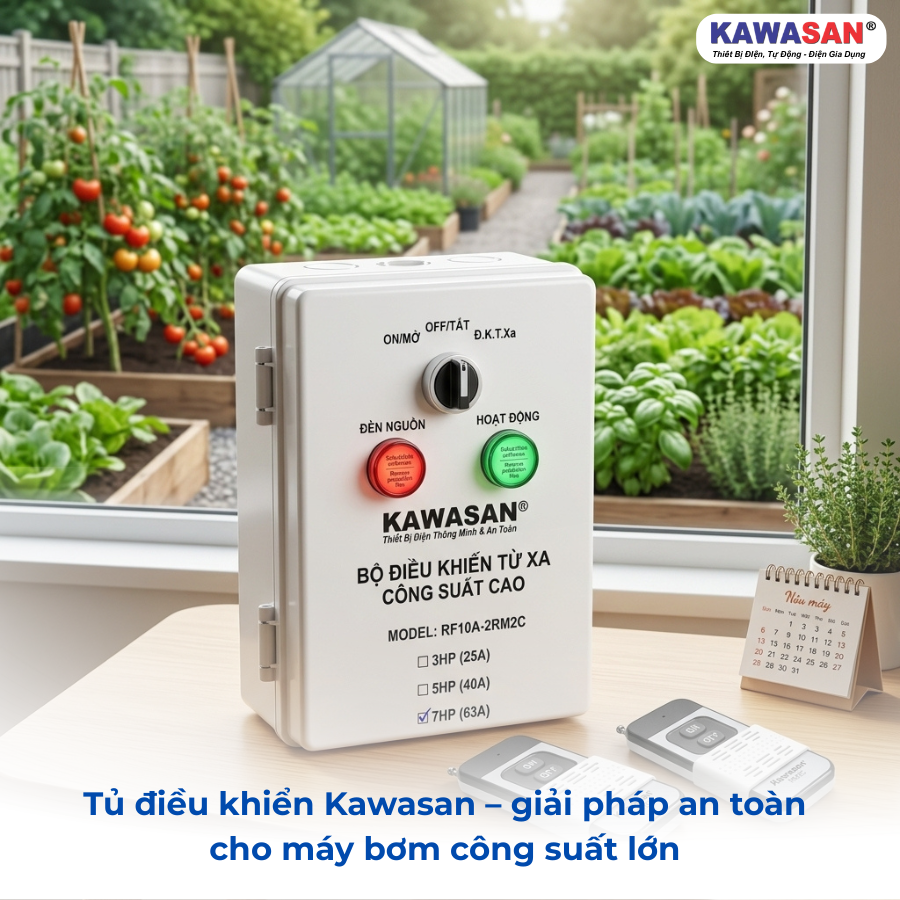

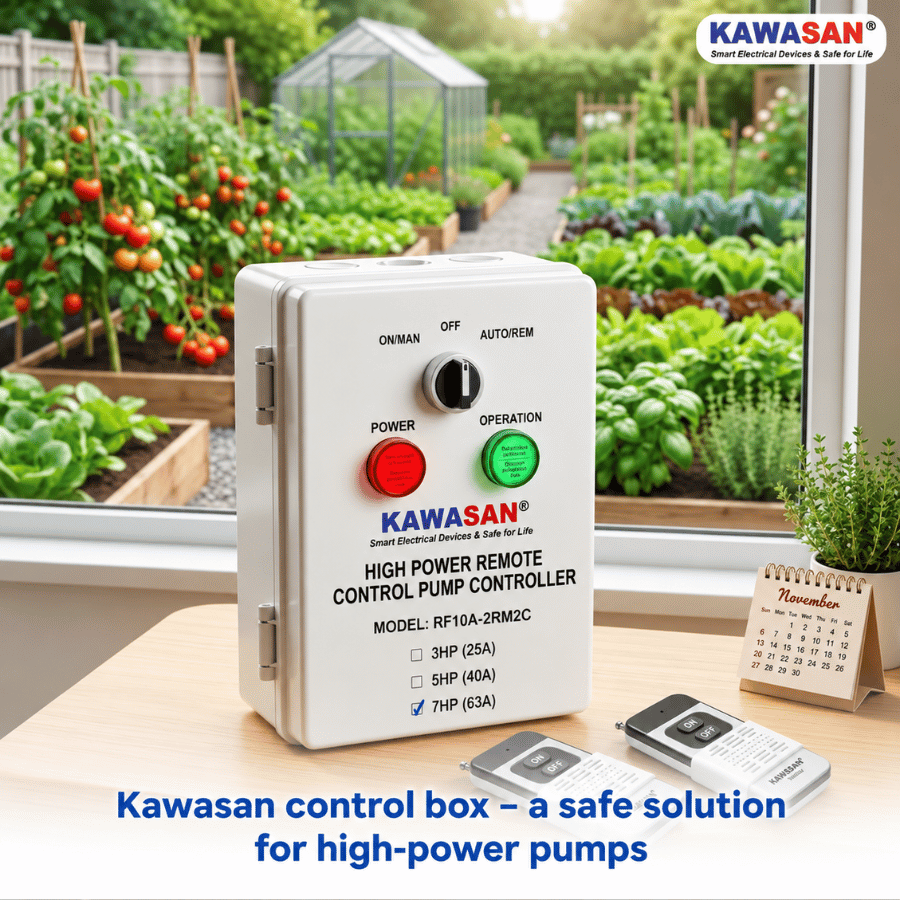

1. Three-Position Rotary Selector Switch

The KAWASAN High-Power Remote Control Panel features a durable rotary selector switch with three operating modes:

• ON Mode: Allows users to manually turn on and supply power to the connected load directly at the control panel.

• OFF Mode: Completely disconnects the power supply for safe system maintenance.

• REMOTE Mode (Đ.K.T.Xa): Enables remote ON/OFF control using the handheld RF remote control.

2. LED Status Indicators

• 🔴 Red Power Indicator: Shows that the main input power supply is connected and ready for operation.

• 🟢 Green Operating Indicator: Shows that the output load is receiving power and operating.

3. High-Quality Internal Electrical Components for Safety Protection

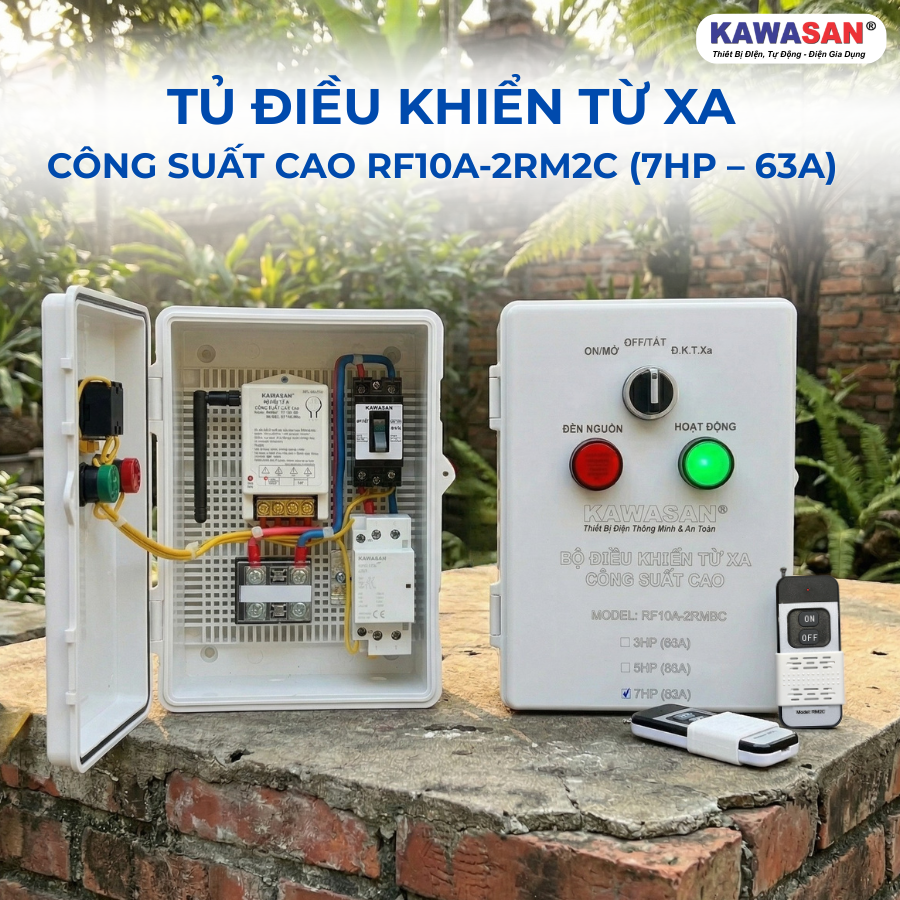

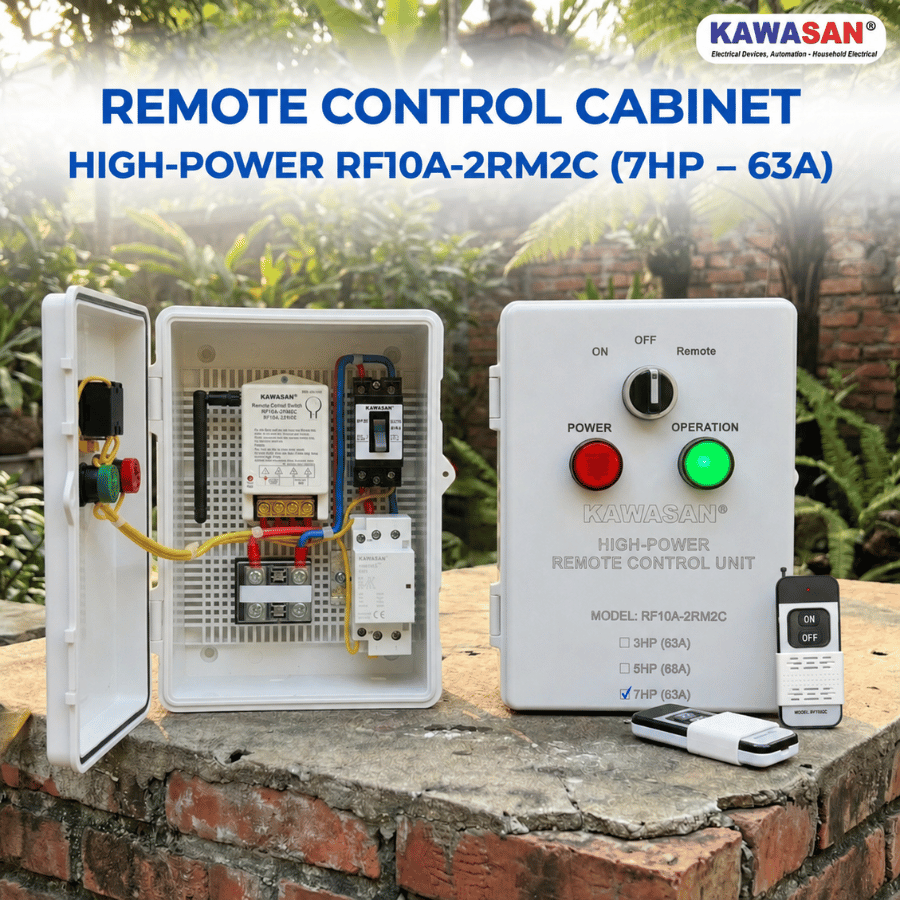

Looking inside the control panel, users can easily identify the following components:

• Built-in RF wireless receiver module with an extended external antenna for improved signal reception.

• Equipped with a high-quality 40A circuit breaker (CB) to help protect the electrical system against overloads and short circuits.

• Features a KWC2-63 (63A) magnetic contactor designed for switching high-power electrical loads.

• Sturdy terminal blocks allow large electrical wires to be connected securely and safely.

• All internal electrical wiring is neatly arranged, with clearly identified phase wire colors for easier installation and maintenance.

Key Features and Benefits of the High-Power Remote Control Panel

• Remotely control electrical equipment without having to approach it.
• Supports high-power loads up to 7HP (63A).
• Improved safety with a circuit breaker (CB) and magnetic contactor.
• Three flexible operating modes: Manual ON – OFF – Remote Control.
• Stable operation with reduced signal interference thanks to the external antenna.
• Easy to install, suitable even for users without specialized experience.

Practical Applications:

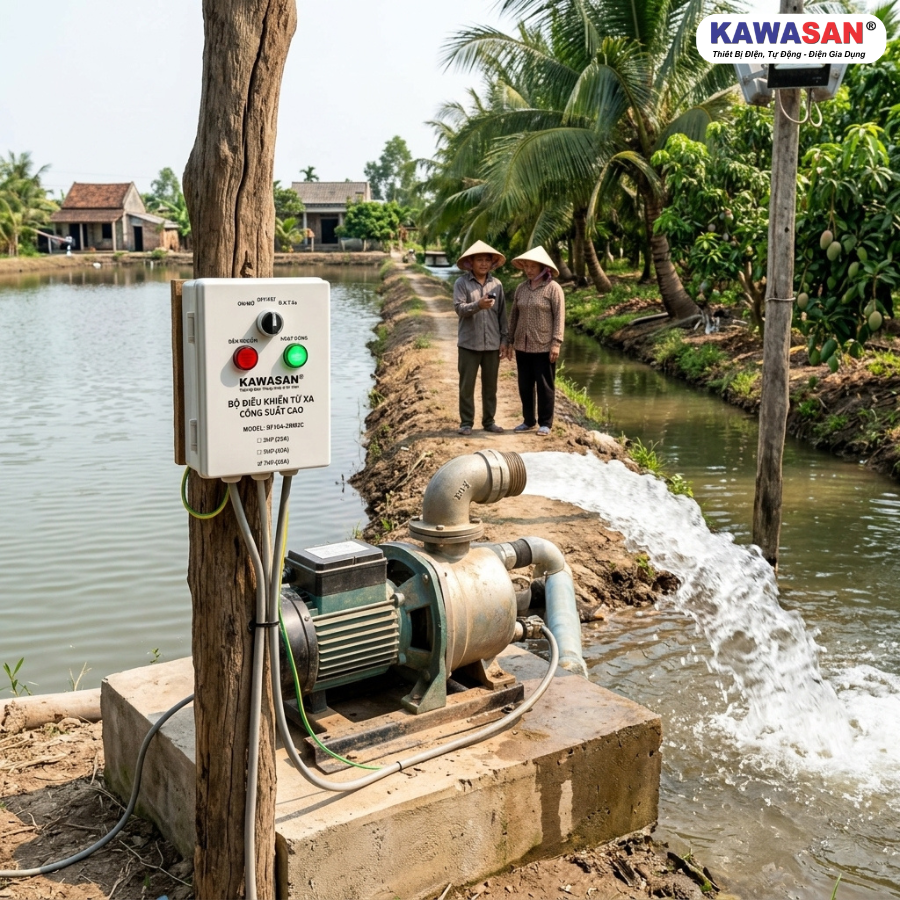

• Remote control of high-power water pumps for agriculture and ponds.

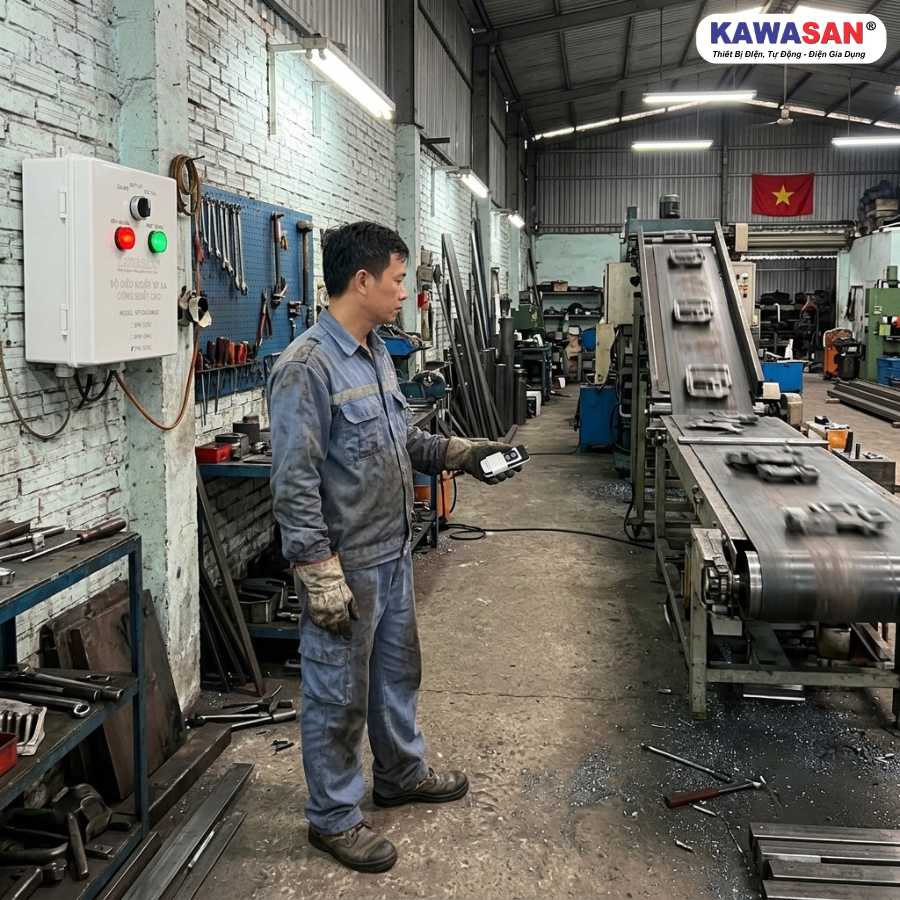

• Control of electric motors in factories and workshops.
• Automatic irrigation systems.
• Suitable for farms, industrial zones, and construction sites.

TECHNICAL SPECIFICATIONS

• Control Coil Power Supply: 220–240V AC / 50–60Hz.
• Motor/Pump Power Output: Single-phase / Three-phase.
• Radio Frequency: RF433MHz.
• Load Capacity: Depending on the contactor rating: 18A (less than 3kW), 25A (less than 5kW), 32A (less than 7kW), 40A (less than 10kW).
• Remote Control Range (Without Obstacles):
• RM2/RM2C: 200-500m – RM2D: 500m – 1000m.
• Number of Remote Controls: Supports up to 16 remote controls.
