Introduction to the KAWASAN RF10A-2RM2C High-Power Remote Control Panel

In modern life and large-scale production, improving the management of electrical equipment is always a priority. However, having to go directly to the equipment to turn high-power loads on or off can be inconvenient. This traditional method is time-consuming and may involve electrical safety risks.

Therefore, the product line High-Power Remote Control Unit The KAWASAN RF10A-2RM2C was developed as a convenient solution that allows users to quickly and easily turn the power supply on or off remotely. The electrical system maintains safe and efficient operation. To explore more high-quality smart solutions, you can visit our product category. KAWASAN Smart Electrical Products.

The product is especially suitable for controlling water pumps and drive motors. It can also safely control high-power household electrical equipment. In addition, the device meets the demanding requirements of agricultural and industrial applications. The manufacturer has designed the device with a strong, enclosed housing. All internal electrical components are neatly and properly arranged. This design helps ensure stable operation and user safety.

PRODUCT DESCRIPTION

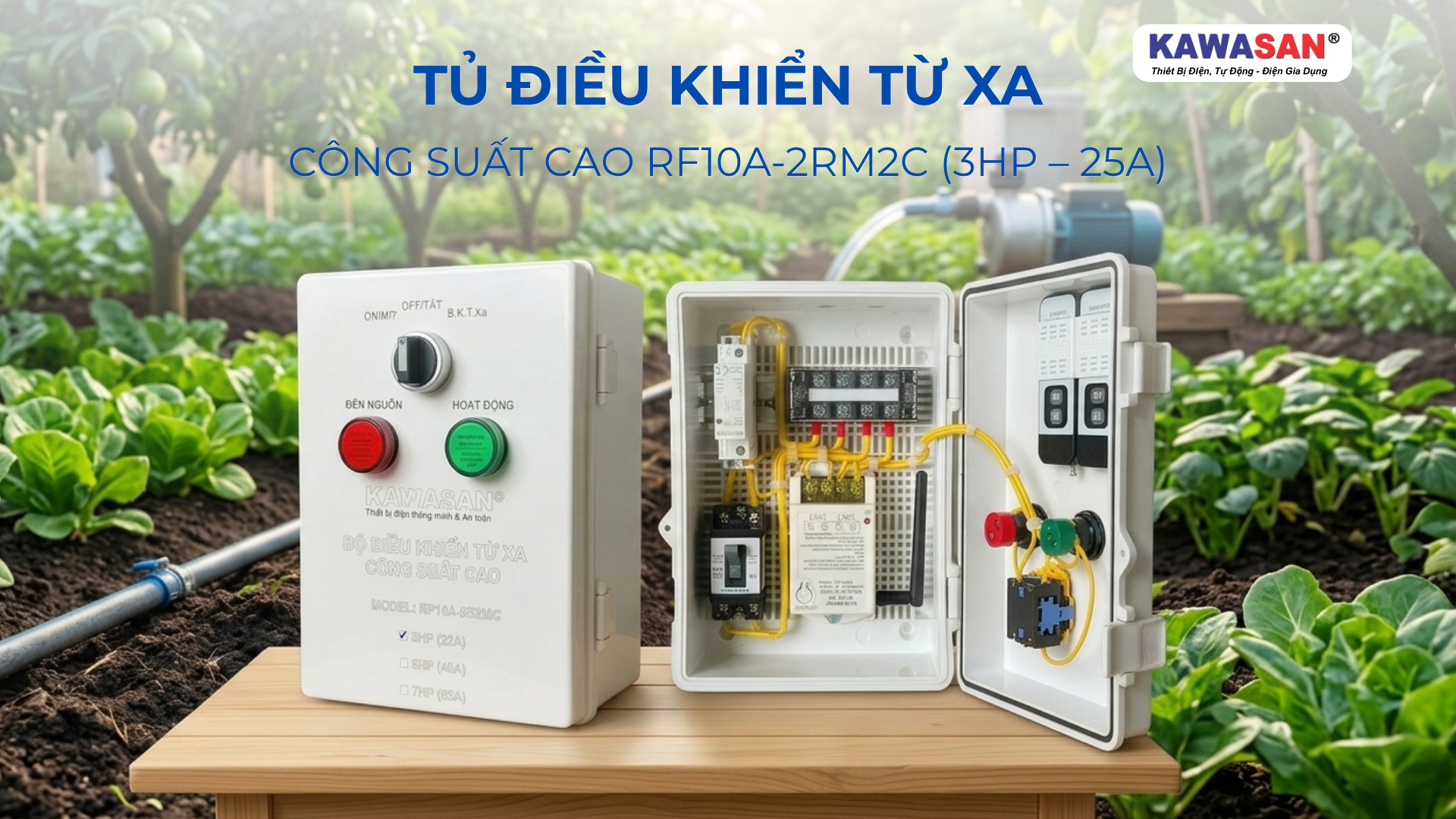

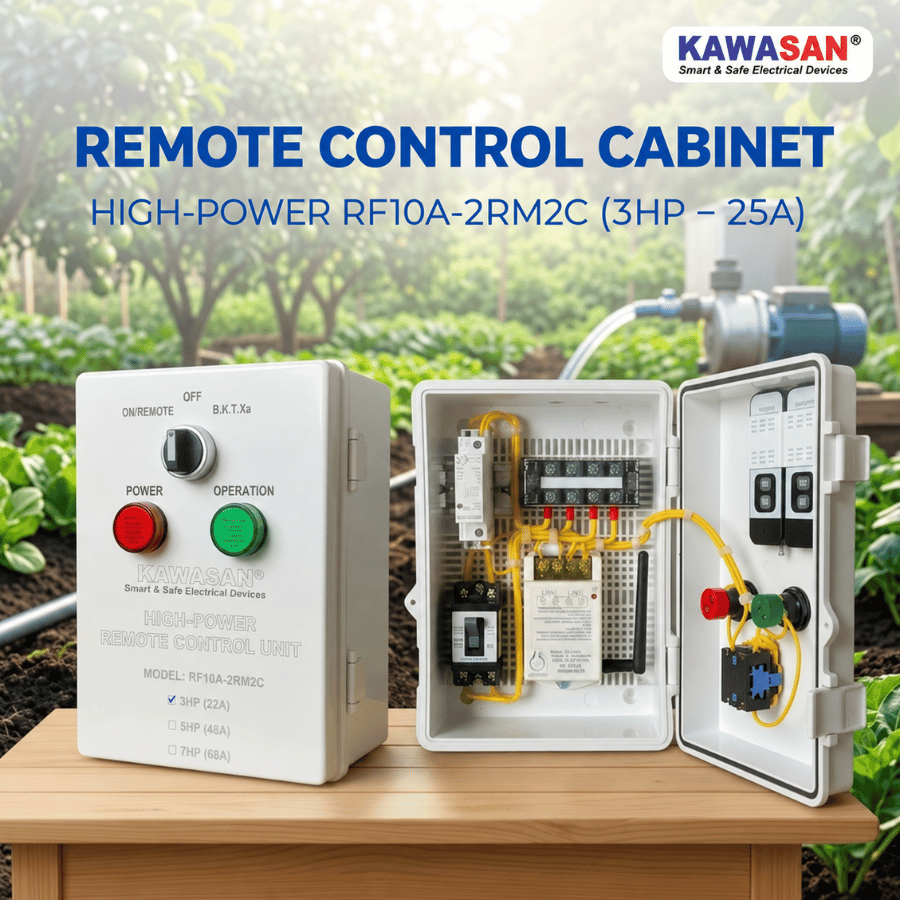

The KAWASAN RF10A-2RM2C high-power remote control panel is a convenient solution that allows users to turn electrical equipment on or off remotely, quickly, safely, and efficiently. The product is suitable for controlling water pumps, motors, and high-power electrical equipment in residential, agricultural, and industrial applications.

The device features a sturdy enclosed control box containing essential electrical components such as a protective circuit breaker (CB), contactor, RF receiver module, and terminal blocks, helping ensure stable and safe operation.

⚙️ Technical Specifications and Identification Features of the 3HP – 25A Version

• Brand: KAWASAN.

• Product Model: RF10A-2RM2C.

• Available Load Ratings: The 3HP (25A) version is pre-selected and marked on the product. Other available versions include 5HP (40A) and 7HP (63A).

• Operating Voltage: AC 220V / 50Hz.

• Included Remote Controls: Operates through high-quality RF remote controls (2 remotes included).

• Remote Control Range: Wireless signal transmission can reach hundreds of meters, depending on the surrounding environment and obstacles.

Main Hardware Components and Features

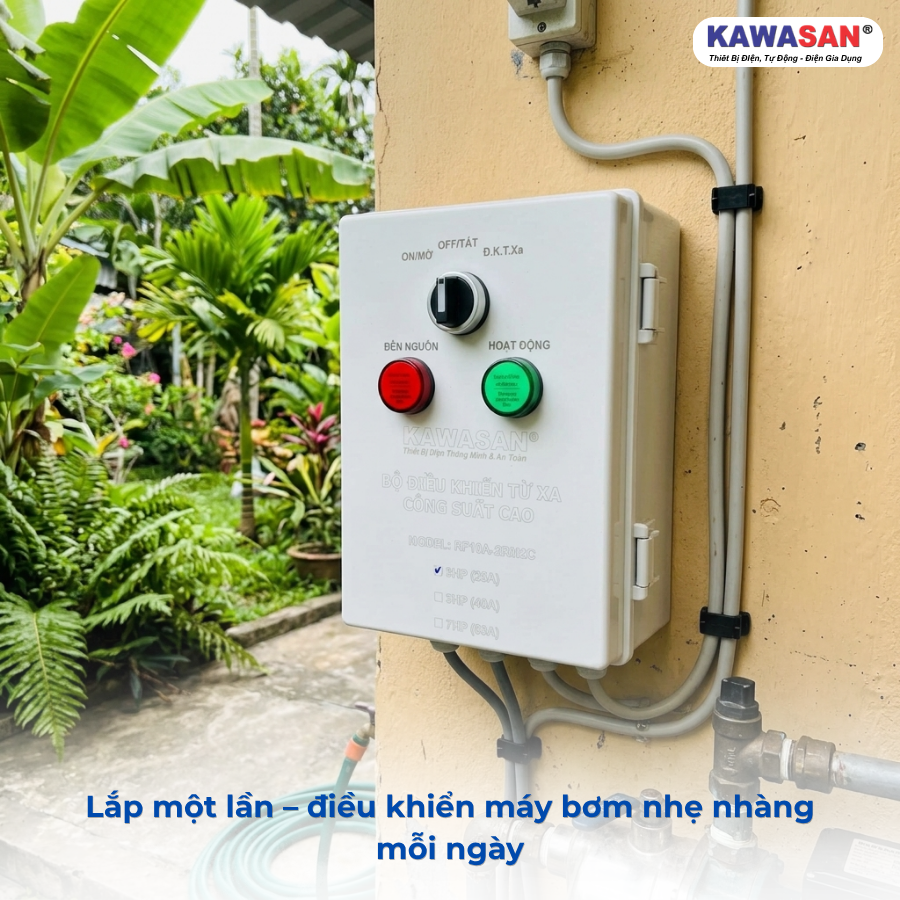

1. Three-Position Rotary Selector Switch

The KAWASAN high-power remote control panel features a durable rotary selector switch with three operating modes:

• ON Mode: Allows users to manually turn on and supply power to the connected load directly at the control panel.

• OFF Mode: Completely disconnects the power supply for safe system maintenance.

• REMOTE Mode (Đ.K.T.Xa): Enables remote ON/OFF control using the handheld RF remote control.

2. LED Status Indicators

• 🔴 Red Power Indicator: Shows that the main input power supply is connected and ready for operation.

• 🟢 Green Operating Indicator: Shows that the output load is receiving power and operating.

3. High-Quality Internal Electrical Components for Safety Protection

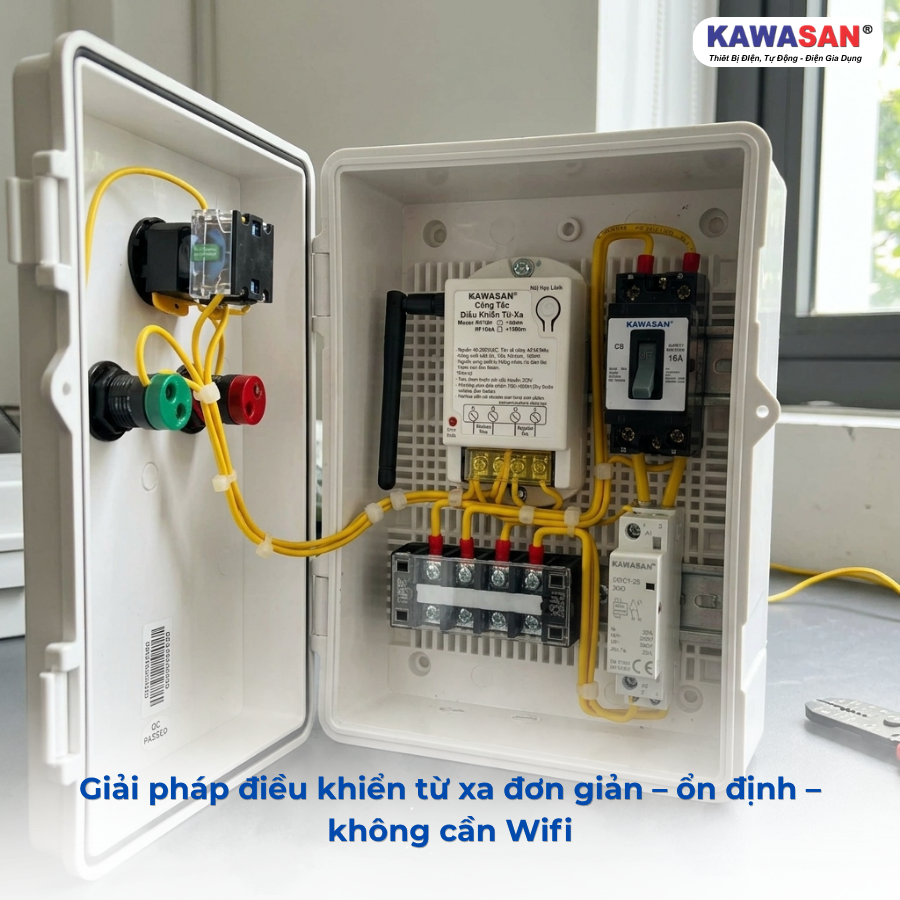

Looking inside the control box, users can easily identify the following components:

• Includes 2 high-quality RM2C remote controls with separate ON and OFF buttons for remote operation.

• Built-in RF wireless receiver module with an external antenna wire to improve signal stability.

• Equipped with a high-quality 16A circuit breaker (CB) to help protect the system against overloads and short circuits.

• Features a KWC1-25 2NO magnetic contactor for safely switching high-power electrical loads.

• All internal electrical wiring is neatly arranged, with secure and well-organized connections.

Features & Benefits

• Remotely control electrical equipment without having to approach it.
• Suitable for water pumps, motors, industrial fans, and high-power lighting systems.
• Improved safety with a circuit breaker and contactor.
• Easy to use with three flexible operating modes: Manual ON – OFF – Remote Control.
• Quick installation, suitable even for users without specialized experience.

BUY GENUINE PRODUCTS AT KAWASAN:

• Business hotline for wholesale / dealer / distributor pricing: 0825 411 408 or 0911 757 234

• Official websites:

  • www.kawaled.com.vn For KAWALED lighting products

  • www.kawasan.vn For KAWASAN smart electrical products

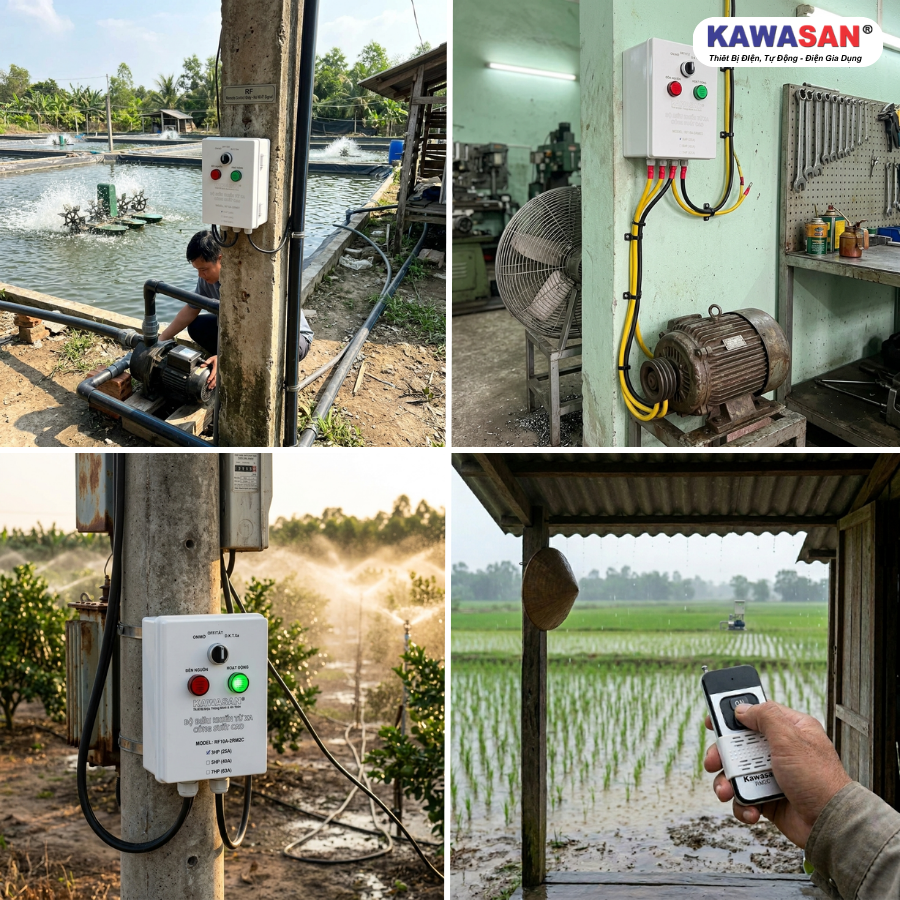

Practical Applications:

• Remote control of agricultural irrigation pumps.
• Remote ON/OFF control of motors on farms.
• Control of electrical systems in factories and workshops.
• Suitable for gardens, ponds, and construction sites.

TECHNICAL SPECIFICATIONS

• Control Coil Power Supply: 220–240V AC / 50–60Hz.
• Motor/Pump Power Output: Single-phase / Three-phase.
• Radio Frequency: RF433MHz.
• Load Capacity: Depending on the contactor rating: 18A (less than 3kW), 25A (less than 5kW), 32A (less than 7kW), 40A (less than 10kW).
• Remote Control Range (Without Obstacles):
• RM2/RM2C: 200-500m – RM2D: 500m – 1000m.
• Number of Remote Controls: Supports up to 16 remote controls.
