Introduction:

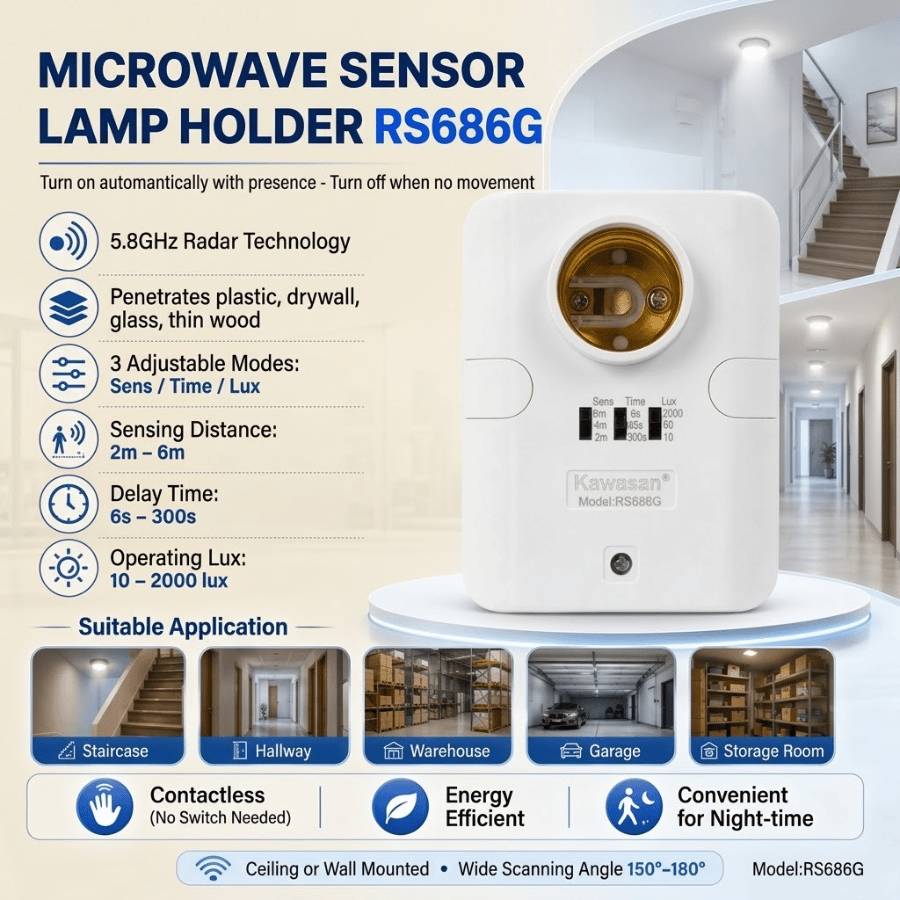

The lamp holder uses 5.8GHz microwave radar sensor technology, which does not affect human health. It automatically turns the light on when someone is present and turns it off when no further movement is detected.
The product is suitable for locations with high temperatures, obstacles, or where a wide detection angle is required, such as stairways, warehouses, hallways, and similar areas.

The KW-RS686G turns a conventional light bulb into an automatic motion-activated lighting system. When someone enters the detection area, the device detects the movement and activates the light. When motion is no longer detected and the preset delay time has elapsed, the light automatically turns off.

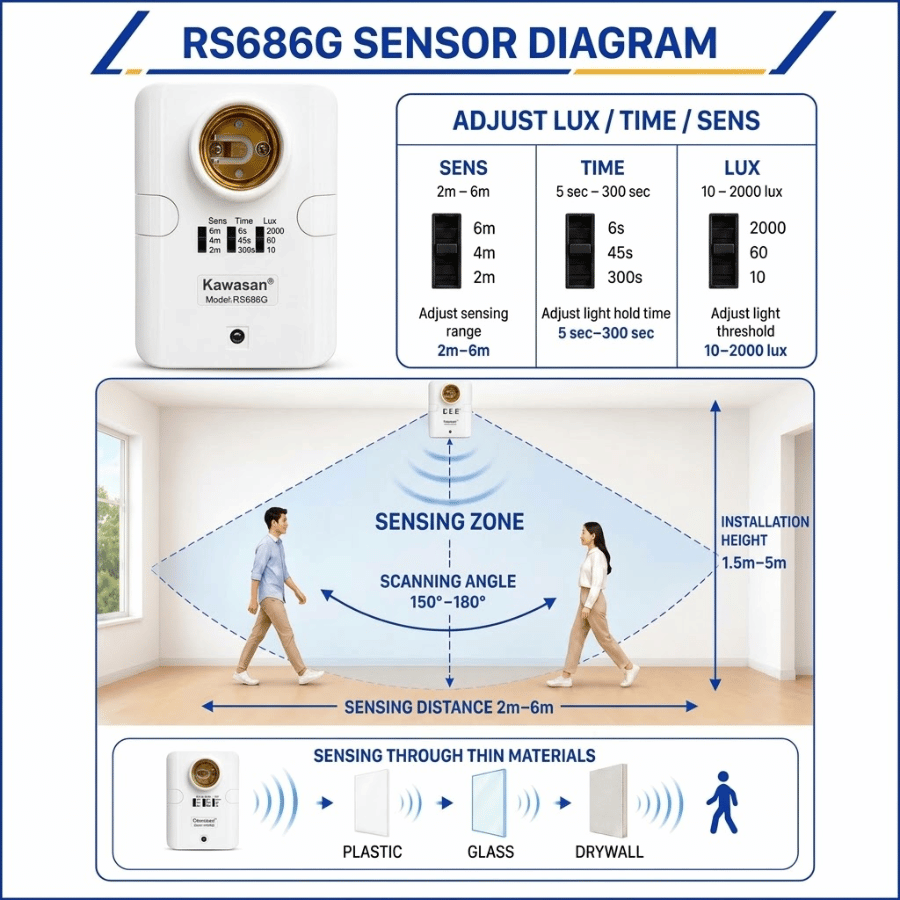

A convenient feature of the product is that users can adjust the detection distance, light duration, and operating mode according to the ambient light level, allowing the settings to be tailored to each area instead of using a fixed detection level.

Microwave technology also allows the device to detect movement through certain thin materials, such as plastic, plasterboard, glass, and thin wood. Therefore, the product is especially suitable for spaces with blind spots or installation locations where the sensor does not have a direct line of sight to people moving.

Practical Applications:

Microwave technology is mainly used in locations where motion detection through obstacles and a wide detection angle are required.

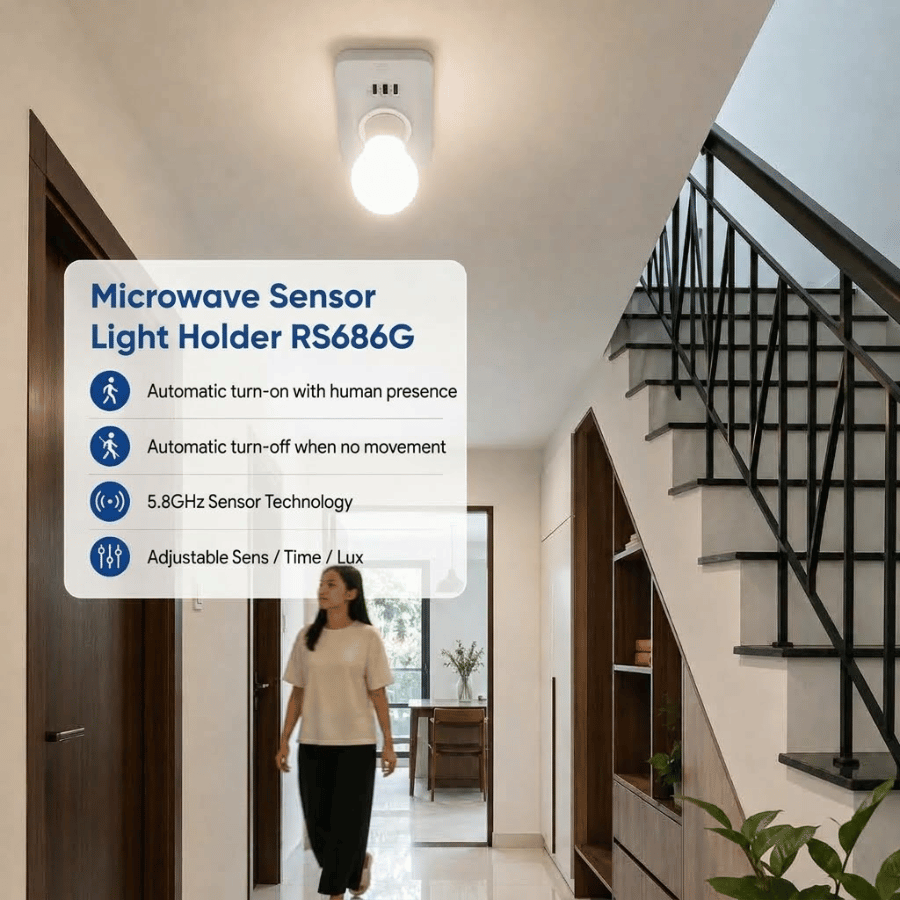

The RS686G can be used in various areas, such as

• Indoor stairways
• Hallways
• Warehouses
• Warehouses
• Storage rooms
• Technical areas
• Garages and parking areas
• Changing rooms
• Areas with thin partitions
• Locations requiring the light to turn on automatically when motion is detected

In areas with blind spots, users do not necessarily have to move directly in front of the sensor for the device to activate. However, because the microwave sensor is highly sensitive and can detect motion through certain thin materials, the installation location and detection range should be selected carefully to prevent the light from being activated by movement in unintended areas.

Benefits:

• Safe for users because there is no need to touch electrical switches frequently, especially switches in restrooms, as hygiene experts have stated that electrical switches can harbor germs that spread infectious diseases.
• Helps deter intruders because the light automatically turns on when an intruder enters, which may scare the intruder away.
• Saves energy by preventing the light from being left on when users leave, especially in families with children.

In addition to the benefits above, the RS686G also provides greater convenience in daily life. When carrying items, moving around at night, or passing through stairways and hallways, users do not need to search for the light switch.

Automatically turning off after the preset time also helps prevent the light from remaining on for many hours when the area is no longer in use.

Specifications

• Điện áp định mức: AC 180–260V, 50/60Hz
• Load Power: 300W
• Time Delay: 2m – 4m – 6m (Điều chỉnh được)
• Automatic Off Time: 6 giây – 45 giây – 300 giây (Điều chỉnh được)
• Operating Lux Level: 10lux – 60lux – 2000 lux (Điều chỉnh được)
• Installation Height: 1,5m–5m (Suitable for ceiling or wall mounting)
• Góc quét: 180 độ
• Dimensions: 95 × 75 × 40 mm
• Operating Temperature: -20°C đến 40°C

Attention:

Limit the use of the RS686G lamp holder in locations such as restrooms, gates, and walkways where many other people move within a radius of 4m–6m, as the light may remain on continuously.

To set the sensor to operate only in dark environments, adjust the Lux setting to the middle position. To make the sensor operate continuously, adjust it toward the sun symbol.
