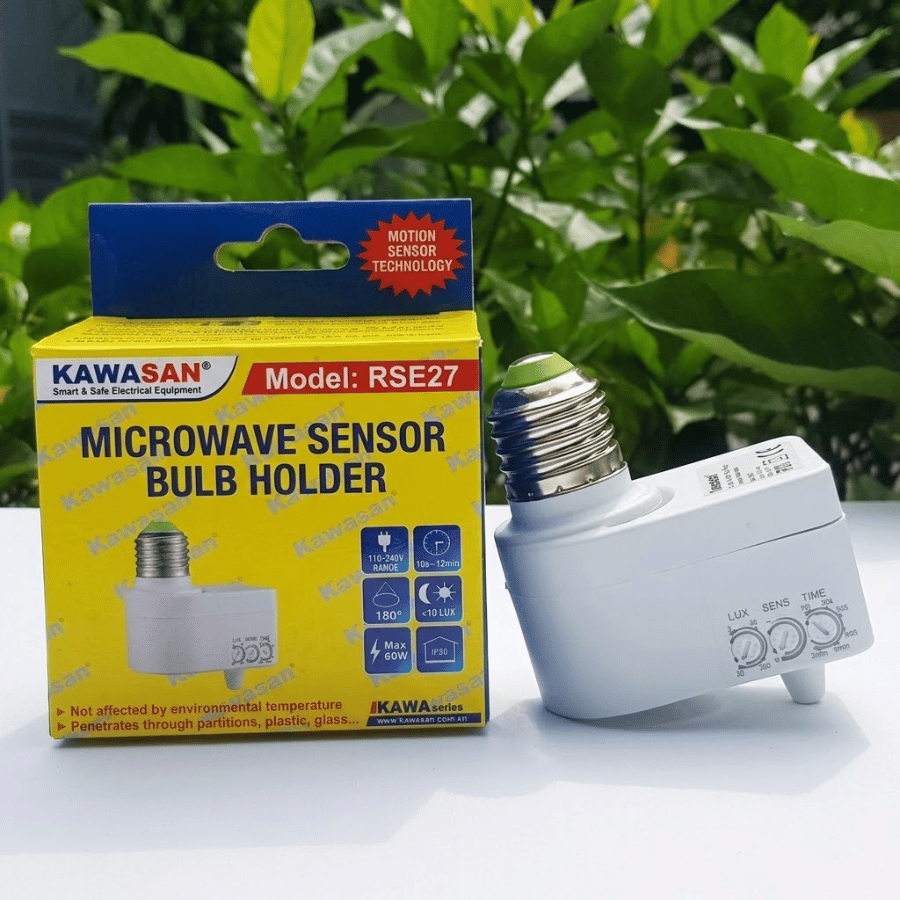

MOST POPULAR RSE27 MICROWAVE SENSOR LAMP HOLDER

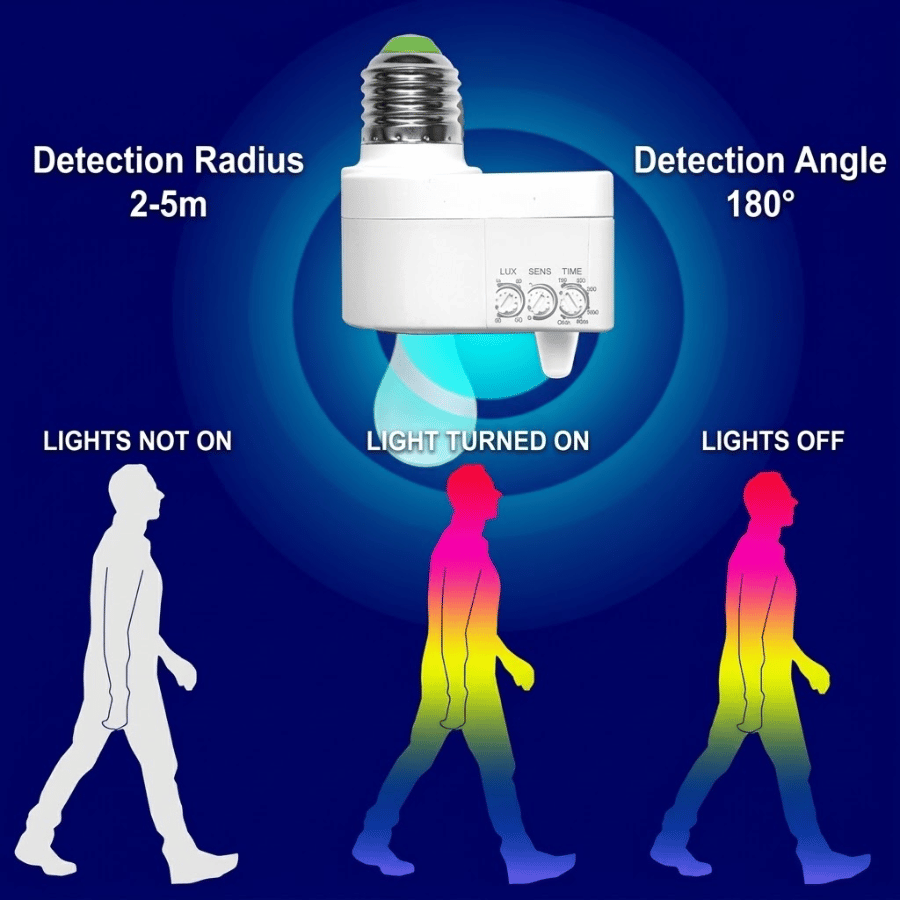

• The RSE27 sensor lamp holder is a highly sensitive microwave sensor device. It uses 5.8GHz radar waves to detect moving human body heat. It can detect through obstacles such as wood, glass, thin walls, and similar materials. It automatically turns the light on when someone moves within the detection area.
• The screw-base sensor lamp holder can be used with standard E27 lamp holders commonly used in homes. It features an adjustable Lux (light/dark) control that detects the ambient light level. The sensor can be set to turn the light on only when the surroundings begin to get dark. If the area is sufficiently bright, the microwave sensor does not operate.
• The Time control adjusts the delay time (automatic off time) from 10 seconds–12 minutes. If someone continues moving within the detection area, the light remains on continuously.
• The Sens control adjusts the motion detection distance from 2–5m.

OUTSTANDING FEATURES OF THE RSE27 SENSOR LAMP HOLDER

• Overcome the disadvantages of infrared sensor lamp holders such as: narrow scanning angle, affected by temperature, cannot penetrate obstacles...
• The microwave sensor lamp holder can effectively detect through obstacles such as glass, wood, thin walls, and similar materials. It can detect movement from a distance and automatically turn the light on for users.
• The RSE27 smart lamp holder is not affected by ambient temperatures above 32°C, helping reduce random ON/OFF activation.
• The standard E27 screw-base lamp holder design is easy to replace and install in conventional light fixtures.
• Specifications and instructions are provided in Vietnamese, making the product easy to use.
• The Kawasan RSE27 lamp holder is researched and manufactured in Vietnam, making it more suitable for the usage habits of Vietnamese consumers.

DIFFERENCES BETWEEN KAWASAN SENSOR LAMP HOLDERS AND OTHER PRODUCTS ON THE MARKET

• Most lamp holders on the market are infrared sensors, so the scanning angle is narrow and the sensitivity is lower. Especially when the weather is hot > 320C, the sensor works very poorly.
• Other touch lamp holders are cheaper and have flimsy adjustment buttons. When adjusting, it often slips and cannot be adjusted because there is no limit mark. This makes it impossible for users to control the maximum level.
• Products on the market often cannot adjust the touch distance. Lights often turn on randomly, causing discomfort and reducing the life of sensors and bulbs.
• Conventional lamp holders generally have a lifespan of approximately 1 year and a warranty ranging from 3 months–1 year. Although they are less expensive, their replacement costs over 5 years—the lifespan of a Kawasan lamp holder—are actually much higher.

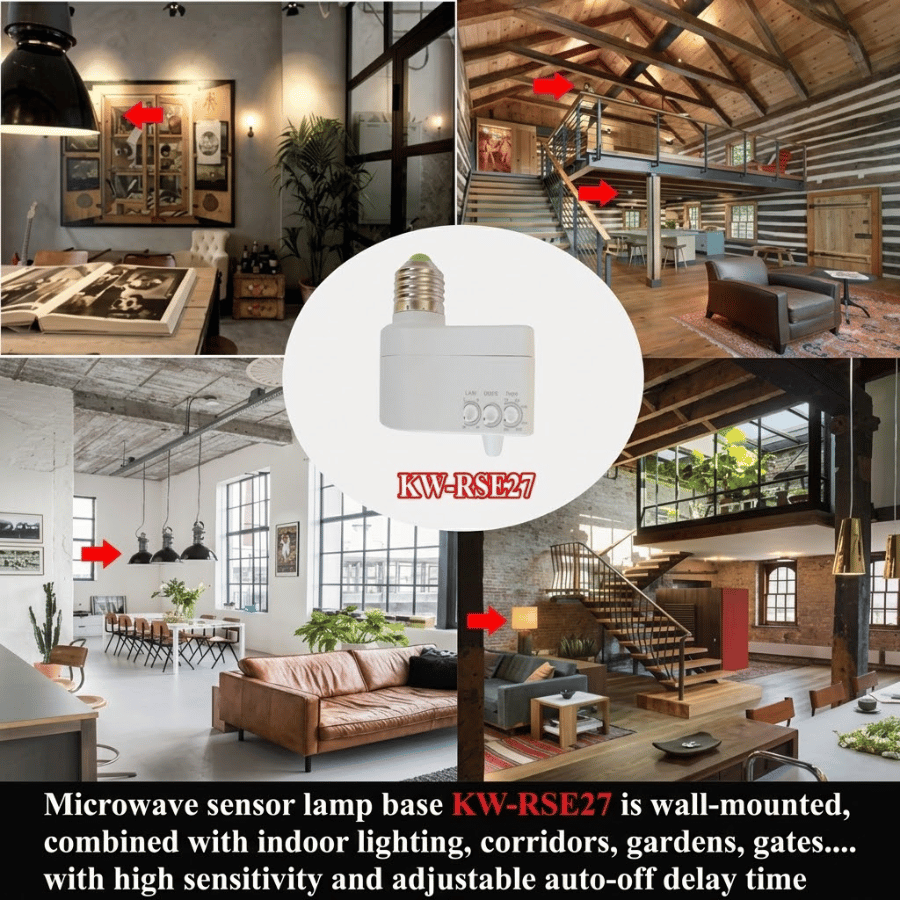

APPLICATIONS OF THE RSE27 MOTION SENSOR LAMP HOLDER

• Used to turn lights ON/OFF in restrooms, living rooms, waiting rooms, hallways, stairways in hotels or homes, and similar areas.
• Suitable for long stairways. When installed at the stairway light position, the sensor detects movement both upstairs and downstairs and turns on the light.
• A solution for office buildings, factories, factory changing rooms, and similar areas.

BENEFITS OF THE RSE27 SMART LAMP HOLDER

• Save energy and time because you avoid forgetting to turn off the power every time you leave. Especially families with children and the elderly.
• Safe for users' health because they do not have to frequently touch the switch to turn on the light. Especially the switch in the toilet because it can be a source of germs that spread disease.
• Safe for children and the elderly who have to fumble for the switch to turn on the light when going to the bathroom. Avoid the risk of electric shock due to electric leakage.
• Has anti-theft ability because when someone breaks in, the light will turn on and the thief will not dare to enter.

WHY CHOOSE KAWASAN?

• A leading Vietnamese brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
• High durability with selected components – Stable operation even in harsh weather conditions
• Superior warranty policy – Repair support is available even after the warranty period if the product can still be restored
• Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
• 24/7 support service and a nationwide dealer network

KAWASAN COMMITMENT

Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements. All products are covered by warranty free of charge for 24 months, 1-for-1 replacement within 30 days if it is a technical defect. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant. Customers can purchase products at dealers within NATIONWIDE DISTRIBUTION SYSTEM provinces and cities nationwide, or place orders on the website.

Buy genuine products at:

• Contact the sales department directly for wholesale, dealer / distributor pricing: 0825 411 408 / 0911 757234
• Website: www.kawasan.vn (For Kawasan products)
• Website: www.kawaled.com.vn (For Kawaled products)

Reference Articles and Videos on Applications, Benefits, and User Instructions

• Watch videos introducing the product, its applications, and instructions for use:
  • Product introduction video: ĐUI ĐÈN CẢM ỨNG VI SÓNG KAWASAN RSE27

• Using 5.8GHz radar wave technology
•  Operating voltage: 110-240VAC/50-60Hz
• Detection Angle: 360°/180°
• Detection Distance: 2–5m
• Adjustable Auto-Off Time: 10 seconds to 12 minutes
• Operating sensor brightness adjustment: from 3LUX(dark) to 2000LUX(bright)
• Power consumption: <0.2W
• E27 Screw-Base Lamp Output Power: 60W (compact lamp) Installation Height: 2–4m
• Operating temperature: -10+70°C
• Installation Height: 2–4m
• Cấp độ kín nước: (IP20 lắp trong nhà, chống bụi, hơi nước)​

FUNCTION OF ADJUSTABLE BUTTONS:

• LUX Knob :Điều chỉnh chế độ nhận biết môi trường sáng hay tối để kích hoạt chế độ cảm biến hoạt động mở đèn:
  • Nếu người dùng cần điều chỉnh nút LUX xoay về phía “sun “thì cảm biến sẽ luôn luôn được kích hoạt trạng thái sẵn sàng để nhận chuyển động của con người trong vùng quét để bật đèn nghĩa là sẽ cảm ứng cả ngày lần đêm.
  • Nếu người dùng cần điều chỉnh nút LUX xoay về phía “số 3 “thì cảm biến chỉ được kích hoạt trạng thái nhận chuyển động thân nhiệt trong vùng quét để bật đèn khi môi trường thiếu ánh sáng (tối), nghĩa là chỉ cảm ứng bật đèn trong môi trường tối (hoặc mờ tối tuỳ mức độ điều chỉnh nút Lux)

Once the device has detected movement and turned on the light, the light/dark sensing mode no longer affects body-heat motion detection during that sensing cycle.

• Nút SENS: Điều chỉnh khoảng cách phát radar để nhận chuyển động.khoảng cách chỉnh tối thiểu 1m“Dấu – “ khoảng cách chỉnh tối đa 9m“Dấu + “
• TIME button :Điều chỉnh thời gian tự tắt,trong khoảng thời gian có thể chỉnh tự tắt từ 10 giây đến 12 phút.Thời gian trễ này sẽ được bắt đầu tính lại trong chu kỳ cảm ứng mới

HOW TO INSTALL AND WIRING:

ATTENTION:

• Turn off the power before installing the device
• Install the E27 twisted lamp holder into the ceiling or wall then attach the device

SOME COMMON PROBLEMS AND HOW TO FIX:

The load does not work (the light bulb does not light up):

a. Check whether the power source to the light bulb connected to the sensor is output?

b. Check to see if there is any problem with the light bulb.

c. Kiểm tra nút chỉnh Lux đã phù hợp với ánh sáng làm việc của môi trường chưa?.

Poor sensitivity:

a. Kiểm tra nút SENS đã chỉnh khoảng cách hợp lý chưa?

b. Check installation height.

The sensor cannot automatically turn off the load (the light does not turn off):

a. Kiểm tra xem có bị nhiễu tín hiệu cao tần  trong vùng làm việc không?

b.Kiểm tra xem xung quanh có thân nhiệt liên tục di chuyển trong vùng cảm ứng không?

c.Kiểm tra nút SENS điều chỉnh khoảng cách quá xa không?

d. Thời gian trễ Time điều chỉnh có dài quá không?
