RS06A Microwave Sensor Switch
Sold: 11389 sản phẩm
405.000 ₫ (VAT included)

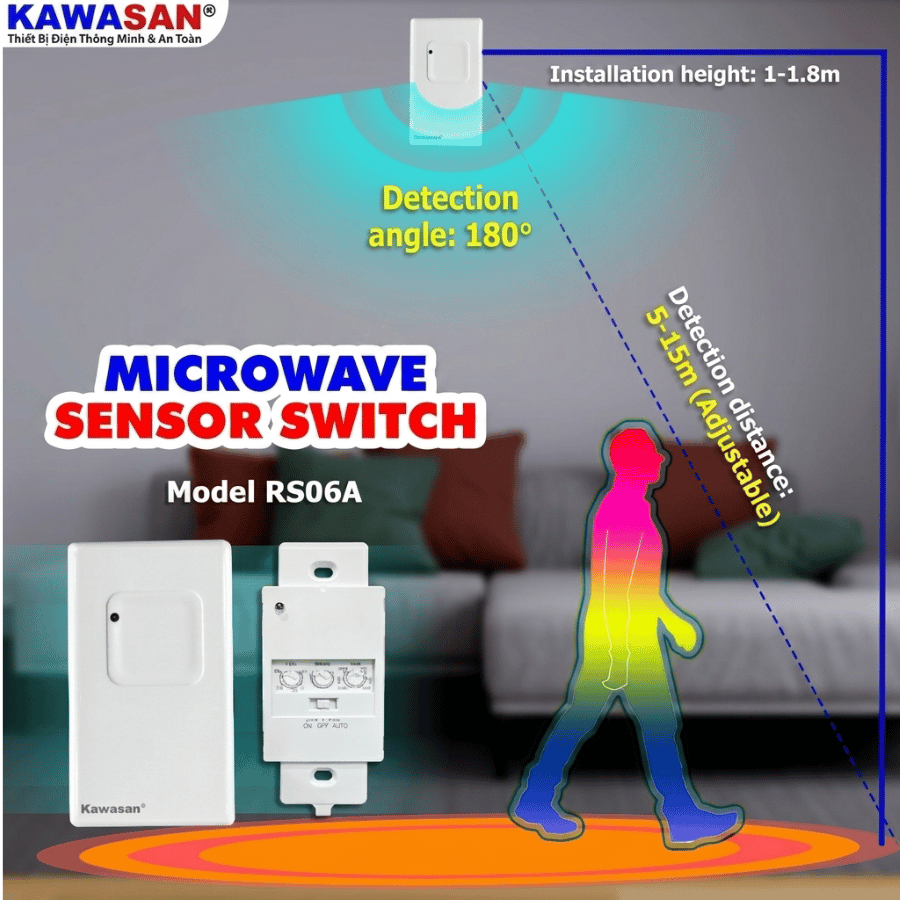

RS06A microwave sensor switch, designed for rectangular recessed wall installation:
- Operating Voltage: 220–240VAC
- Frequency: 50/60Hz - Detection Angle: 180°
- Detection Range: 5–15m, adjustable
- Adjustable Ambient Light Level: <3–2000 LUX, adjustable
- Time Delay: 10 seconds – 12 minutes
- Transmission Power: <0.2mW - Power Consumption: approx. 0.9W
- Mounting Height: 1–1.8m
- Motion Detection Speed: 0.6–1.5m/s
- Load Output: 200W LED
KAWASAN RS06A MICROWAVE SENSOR SWITCH
RS06A is a 5.8 GHz Radar microwave sensor switch that detects the movement of people and objects compatible with this wave frequency. It has very high sensitivity and can detect even the smallest movements. The sensor can detect through obstacles such as wood, glass, thin walls, and more. It is suitable for installation in large areas with many partitions. Unlike infrared sensors, it is not affected by ambient temperatures above 32°C. With a wide detection angle of up to 180° and a long sensing distance of 5–15m, the device can detect movement more effectively and accurately. Its compact recessed wall design enhances the aesthetics of the installation area. In addition, the device is equipped with 3 adjustment knobs: SENS, LUX, and TIME, allowing users to customize the settings according to their needs.
FUNCTIONS OF THE RS06A MICROWAVE SENSOR SWITCH ADJUSTMENT KNOBS
- LUX Knob: Adjusts the ambient light level to determine when the sensor activates the light.
- Turn the LUX knob toward the “sun” symbol → the sensor operates both during the day and at night.
- Turn the LUX knob toward the “moon” symbol → the sensor operates only at night.
- SENS Knob: Adjusts the radar detection distance for motion sensing. The range can be adjusted from 5–15m.
- TIME Knob: Adjusts the automatic switch-off time, from 10 seconds to 12 minutes. This delay time will restart whenever a new sensing cycle is detected.
- Switch location ON: Permanent light
- Switch location OFF: The light turns off completely
- Switch location AUTO: Switches to automatic sensing mode
BENEFITS OF THE RS06B SMART SENSOR SWITCH
- Save energy and time because you avoid forgetting to turn off the power every time you leave. Especially families with children and the elderly.
- Safer for children and elderly people when using the restroom because they do not need to search for the light switch in the dark. Helps reduce the risk of electric shock caused by electrical leakage.
- Helps improve anti-theft protection for homeowners. When installed in walkways, rear hallways, balconies, staircases, and similar areas, the light will automatically turn on when an intruder enters, which may help scare them away
APPLICATIONS OF THE RS06B MICROWAVE SENSOR LIGHT SWITCH
The RS06B recessed sensor switch is used to turn lights ON/OFF in hallways, staircases, balconies, living rooms, restrooms, emergency exits, and more.
- A Leading Vietnamese Brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
- High durability with selected components– Stable operation even in harsh weather conditions
- Superior Warranty Policy– Repair support is available even after the warranty period if the product can still be restored
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 Support Service, with a nationwide dealer network
Reference Articles and Videos on Applications, Benefits, and User Instructions
- Refer to product-related articles:
- Operating Voltage: 220–240VAC
- Frequency: 50/60Hz - Detection Angle: 180°
- Detection Range: 5–15m, adjustable
- Adjustable Ambient Light Level: <3–2000 LUX, adjustable
- Time Delay: 10 seconds – 12 minutes
- Transmission Power: <0.2mW - Power Consumption: approx. 0.9W
- Mounting Height: 1–1.8m
- Motion Detection Speed: 0.6–1.5m/s
- Load Output: 200W LED
HƯỚNG DẪN LẮP ĐẶT
- Tháo nắp che của cảm biến và điều chỉnh các núm TIME, SENS và LUX
- Nới lỏng các vít ở đầu kết nối, sau đó kết nối dây nguồn với đầu kết nối của công tắc cảm biến theo sơ đồ đấu dây dưới đây.
- Lắp đặt công tắc cảm biến vi sóng âm tường vào lỗ hình chữ nhật, cố định bằng vít xuyên qua lỗ lắp.
- Lắp lại tấm che mặt, bật nguồn rồi chạy thử.
Thank you for trusting Kawasan products!
Toll-Free Consulting Hotline: 1800 0058 Or Call Directly: 0911 757 234
Website: www.kawasan.com.vn
- Description
- Reviews (3)
Description
KAWASAN RS06A MICROWAVE SENSOR SWITCH
RS06A là công tắc cảm biến vi sóng Radar tần số 5.8 GHz, nhận diện chuyển động người và vật tương thích với tần số sóng trên. Độ nhạy rất cao, có khả năng phát hiện các chuyển động dù nhỏ nhất.Có khả năng cảm biến xuyên được vật cản tốt như: gỗ, kính, tường mỏng… Thích hợp lắp cho các khu vực rộng, có nhiều vách ngăn. Không bị ảnh hưởng bởi nhiệt độ môi trường trên 32°C, như cảm biến hồng ngoại.
Góc quét rộng lên đến 180 độ, khoảng cách cảm ứng xa 5-15m giúp nhận diện chuyển động tốt và chính xác hơn. Thiết kế nhỏ gọn, dạng âm tường làm tăng tính thẩm mỹ cho không gian lắp đặt. Ngoài ra, có thêm 3 nút chỉnh Sens, Lux, Time tuỳ chỉnh theo nhu cầu của người dùng.
FUNCTIONS OF THE RS06A MICROWAVE SENSOR SWITCH ADJUSTMENT KNOBS
- LUX Knob: Adjusts the ambient light level to determine when the sensor activates the light.
- Turn the LUX knob toward the “sun” symbol → the sensor operates both during the day and at night.
- Turn the LUX knob toward the “moon” symbol → the sensor operates only at night.
- SENS Knob: Adjusts the radar detection distance for motion sensing. The range can be adjusted from 5–15m.
- TIME Knob: Adjusts the automatic switch-off time, from 10 seconds to 12 minutes. This delay time will restart whenever a new sensing cycle is detected.
- Switch location ON: Permanent light
- Switch location OFF: The light turns off completely
- Switch location AUTO: Switches to automatic sensing mode
BENEFITS OF THE RS06B SMART SENSOR SWITCH
- Save energy and time because you avoid forgetting to turn off the power every time you leave. Especially families with children and the elderly.
- Safer for children and elderly people when using the restroom because they do not need to search for the light switch in the dark. Helps reduce the risk of electric shock caused by electrical leakage.
- Helps improve anti-theft protection for homeowners. When installed in walkways, rear hallways, balconies, staircases, and similar areas, the light will automatically turn on when an intruder enters, which may help scare them away
APPLICATIONS OF THE RS06B MICROWAVE SENSOR LIGHT SWITCH
The RS06B recessed sensor switch is used to turn lights ON/OFF in hallways, staircases, balconies, living rooms, restrooms, emergency exits, and more.
WHY CHOOSE KAWASAN?
- A Leading Vietnamese Brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
- High durability with selected components– Stable operation even in harsh weather conditions
- Superior Warranty Policy– Repair support is available even after the warranty period if the product can still be restored
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 Support Service, with a nationwide dealer network
Kawasan Commitment Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements. All products are covered by warranty free of charge for 24 months, with 1-for-1 replacement within 30 days for technical defects. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant. Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.
Reference Articles and Videos on Applications, Benefits, and User Instructions
- Refer to product-related articles:
