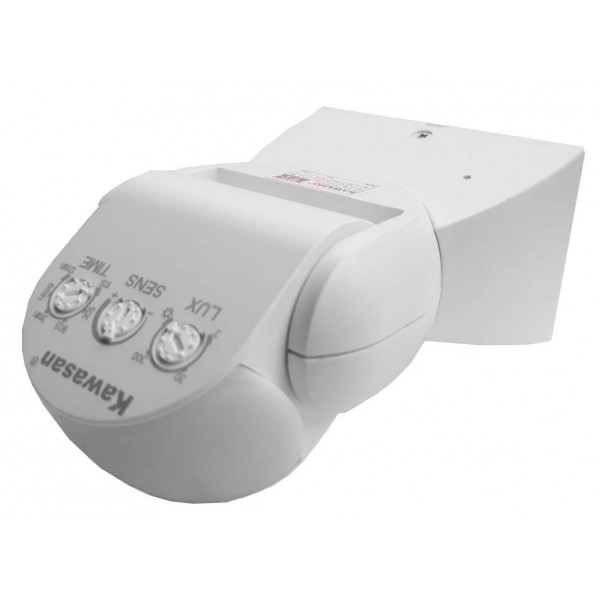

CHARACTERISTICS OF MICROWAVE SENSOR SWITCH

• RS05B is a 5.8GHz frequency Radar microwave sensor switch. Detect human body waves or objects carrying wave frequencies that are sensitive to the above frequency.
• When there is movement in the sensor area, a signal will be activated to tell the switch (Relay) to turn on the light.
• Not affected by environmental temperature >32°C like infrared touch switches, and can be sensed through wooden walls, glass, thin walls, plaster...
• Dust-tight and waterproof design (IP54), suitable for installation in warehouses, walkways around factories, gardens...

• There are 3 multi-function adjustment buttons such as: adjusting delay time, adjusting light environment recognition mode, day/night sensor. At the same time, there is also the function to adjust the sensor distance from near and far, meeting all user needs.

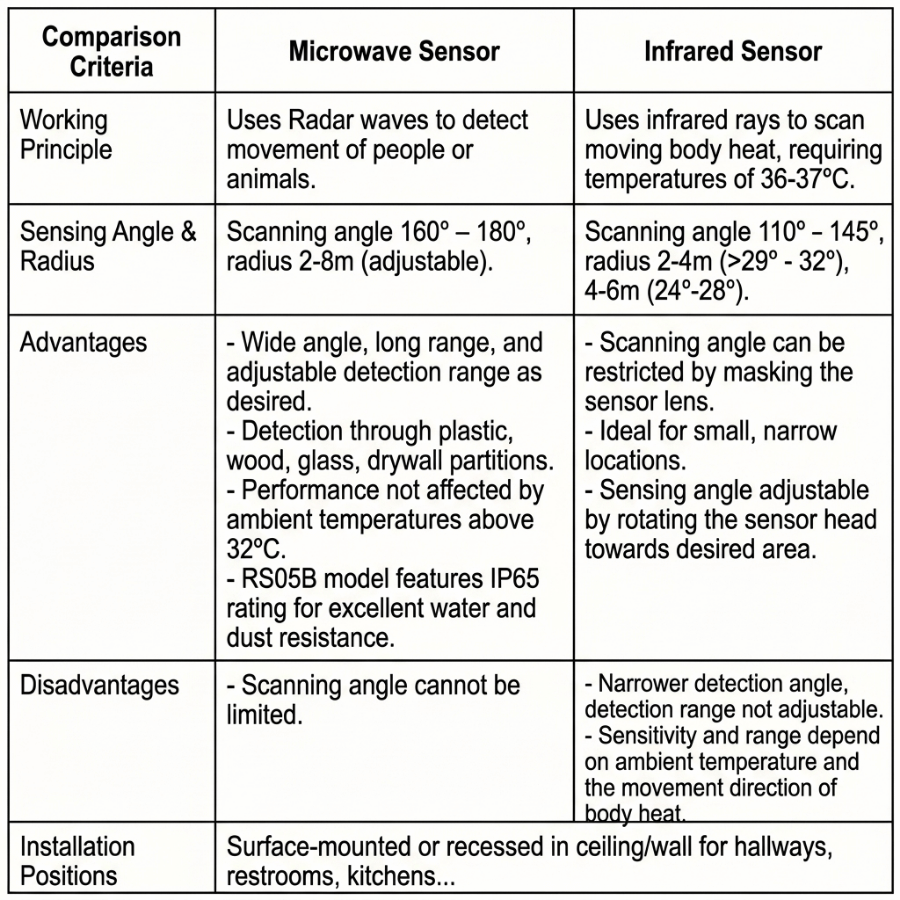

THE DIFFERENCE BETWEEN FEELINGS MICROWAVE TOUCH SWITCH WITH INFRARED TOUCH SWITCH

MICROWAVE RADAR SENSOR SWITCH BRINGS MANY BENEFITS TO USERS

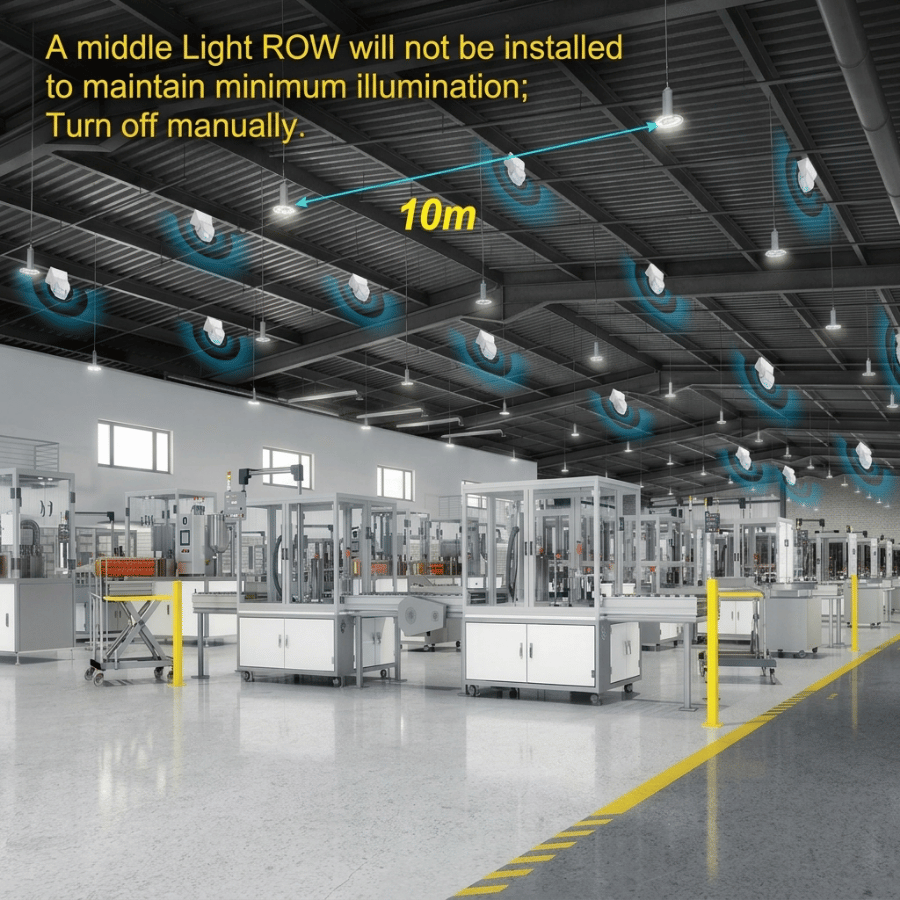

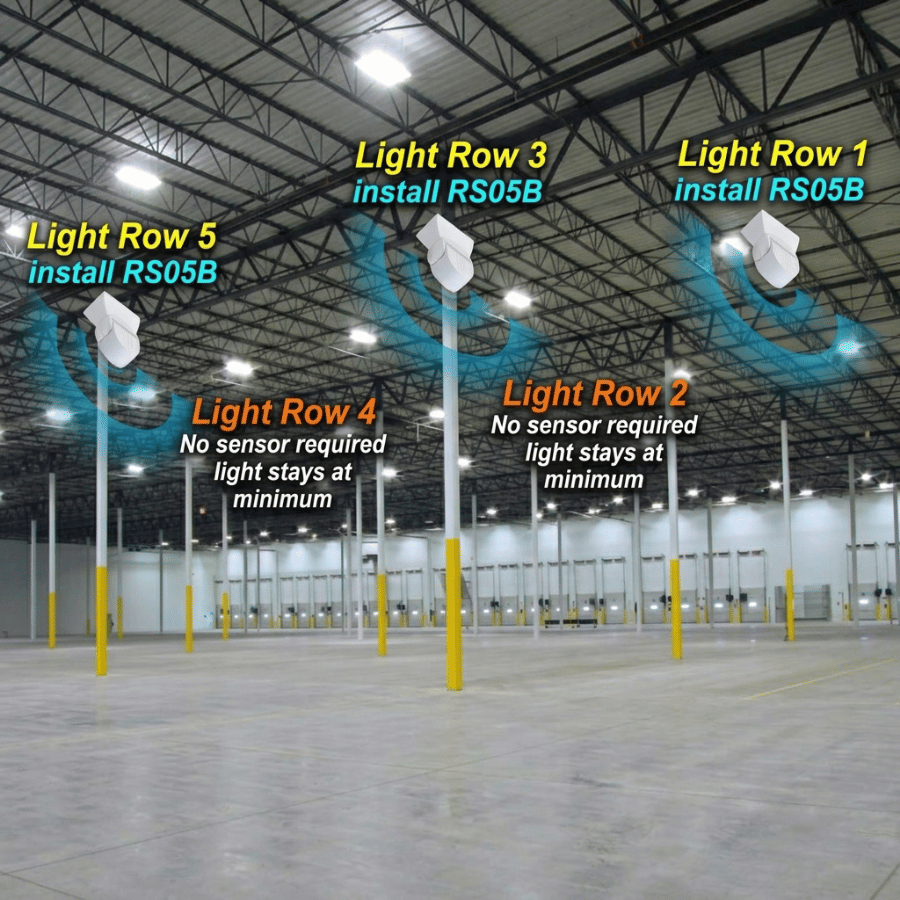

• Save electricity, invest with great capital return and profit: For public places such as garages, parking lots, walkways around factories, large gardens, it is necessary to install many lights. Just add this sensor to the current 60%, you can save 30-50% in electricity consumption.

• Reduce personnel costs and save time: Most parking lots, factories, and public corridors are often very large, so personnel must be assigned to monitor and supervise lighting... This creates unnecessary personnel costs.
• Reduce maintenance costs, purchase and replacement costs of light bulbs: The lighting system will be offloaded and allowed to rest when no one enters. Increase lamp life up to 50%, reducing annual maintenance costs for the organization.

• Reduce the risk of fire and explosion: Lighting systems and exhaust fans do not have to work continuously, reducing heat generation and limiting the possibility of fire...

• Anti-theft: When installed at gates, walkways, hallways behind the house, balconies... because when a thief breaks in, the light will turn on and can chase away the thief.

• User safety: Avoid the risk of electric shock and bacterial infection. Especially, children and the elderly when going to the toilet

THE DIFFERENCE OF KAWASAN MICROWAVE SENSOR SWITCH WITH OTHER PRODUCTS ON THE MARKET

• KAWASAN's RS05B smart touch switch is researched, improved and manufactured in Vietnam. Clear certificate of origin, meeting the needs of microwave sensor equipment in the Vietnamese market: high sensitivity, accuracy, no flicker and less affected by other factors during use .
• Other microwave sensor switches on the market are cheaper. However, there is often not enough power and the sensitivity is not adjusted accordingly. Sometimes it's too sensitive so the light turns on continuously and doesn't turn off, sometimes it's too sensitive and doesn't turn on when someone comes in.
• Reliability touch switch Kawasan usually >5 years, 2 year warranty. Compared to products on the market, they last about 1 year and have a warranty from 3 months to 1 year. Although the price is cheap, in return for the replacement cost within 3 years, the actual cost is much higher.

HOW IS SMART TOUCH SWITCH RS05B APPLIED?

• Install additional outdoor lights in factories, gardens, etc.

• Installed next to existing tube light fixtures in factories, hallways, emergency exits, etc.

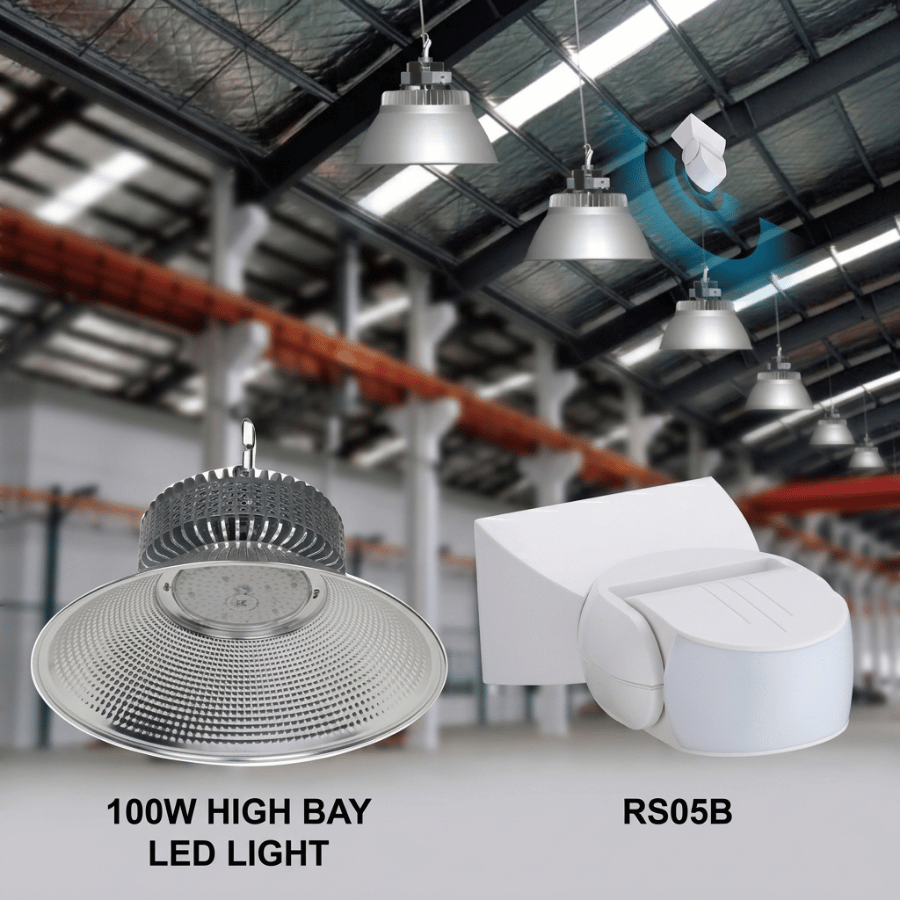

• Install headlights installed at factory and warehouse entrances.

WHY YOU SHOULD CHOOSE KAWASAN MOTION SENSOR SWITCH

• Kawasan has been the leading smart electrical brand in Vietnam since 2007. The product was developed and thoroughly researched about the habits of Vietnamese consumers. Environmental temperature conditions follow Vietnam's climate, can withstand heat, and are little affected by environmental temperature.
• Kawasan is constantly researching and improving, and the quality is increasingly improving. All components are carefully selected, ensuring high durability. Meets the harshest environmental and continuous use conditions.
• Kawasan products have a 2-year warranty and a committed durability of over 5 years. During 5 years we commit to a free warranty. If the goods have technical errors due to objective factors.
• Kawasan has a system of care and warranty offices throughout the North - Central - South regions. Agent and distribution system in most provinces and cities nationwide. Warranty service is always ready to support customers in the best way.

• Operating voltage: 110-240VAC/50-60Hz
• Scanning angle: 180°
• Induction distance: 2-8 m (corresponding to scanning radius of 1-4m)
• Auto-off adjustment time: 10 seconds to 12 minutes
• Active sensor brightness adjustment: from 3 LUX(dark) to 2000LUX(light)
• Power consumption: <0.5W
• Output power: 1200W (incandescent lamp), 300W (compact lamp); 150W (Led)
• Watertight index IP54
• Operating temperature: -10+70°C
• Wall mounting height: 2-4m
• Ceiling mounting height: 2-8m

HOW TO INSTALL AND WIRING:

Ceiling installation, wall installation, recessed lighting

ATTENTION:

• Turn off the power before connecting the device
• Connect the power cord and load for the sensor as shown in the diagram (Teminal N and L connect to the 220V power source, N and L' to the lamp)

SOME COMMON PROBLEMS AND HOW TO FIX THEM

The load does not work (the light bulb does not light up):

1. Check if there is power to the light bulb connected to the sensor?
2. Check to see if the light bulb has any problems?
3. Check whether the Lux adjustment button is suitable for the working light of the environment?

Poor sensitivity:

1. Check if the SENS button is adjusted to a reasonable distance?
2. Check installation height.

The sensor cannot automatically turn off the load (the light does not turn off):

1. Check to see if there is high frequency signal interference in the working area?
2. Check to see if there is body heat constantly moving around in the sensor area?
3. Check if the distance adjustment SENS button is too far?
4. Is the Timer Adjustment delay time too long?
5. Check to see if the electrical wiring installation is correct?

Thank you for trusting Kawasan products!
