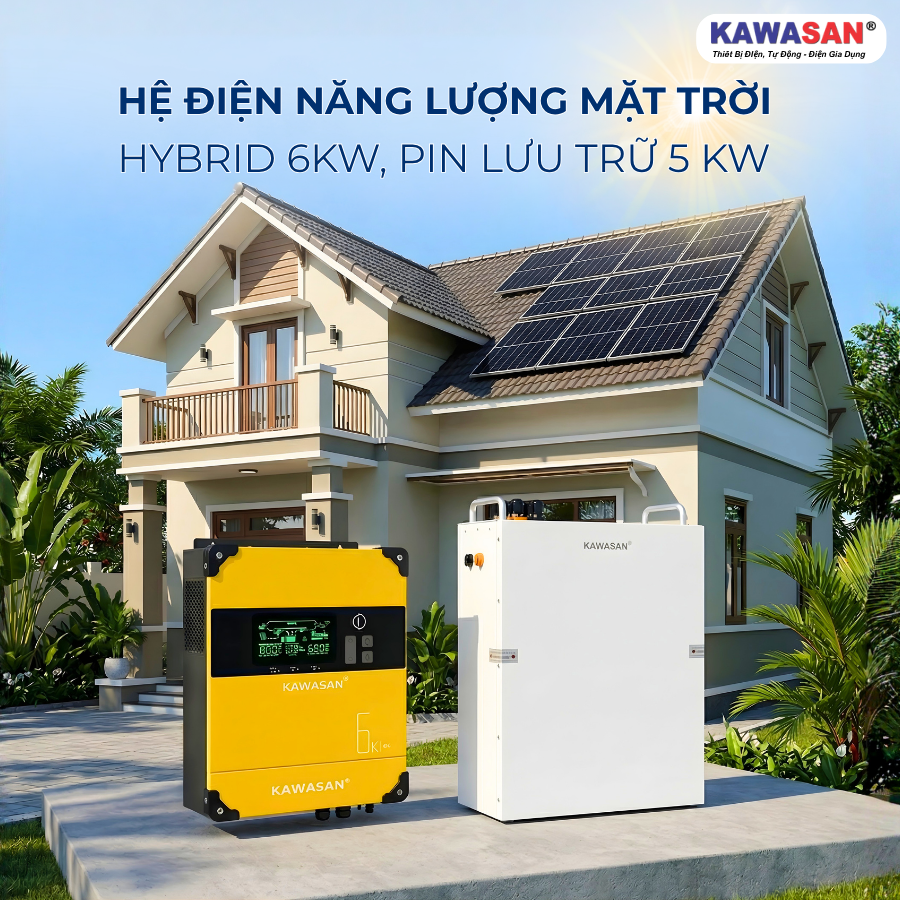

6kW Hybrid Solar Power System with 5kWh Battery Storage
Sold: 91 sản phẩm
75.000.000 ₫ (VAT included)
Details
- 8 Solar Panels: 580W per panel, 20-year warranty
- 1 Hybrid Inverter: 6kW, 5-year warranty
- 1 Kawasan Lithium Storage Battery: 100Ah / 5kWh, 8-year warranty
- Installation Labor and User Instructions Included
Notes: Rooftop mounting frame accessories are not included.
6kW Hybrid Solar Power System with Battery Storage (6.3kW Inverter, 5kWh Battery Storage – 100Ah, Expandable Up to 15kWh)

Why Choose This System?
A Hybrid Solar Power System is a practical solution as household electricity demand continues to increase. Users can expand the system's capacity by adding more battery storage and solar panels without having to replace the inverter in the future, helping reduce upgrade costs.- Suitable Monthly Electricity Bills: 700,000–2,000,000 VND
- Estimated Payback Period: 3–4 years
Installation Requirements
- Roof Area: More than 20m²
- Electrical System: Single-Phase
- Sunlight Conditions: The installation area should not be shaded by nearby tall buildings or trees that block sunlight during the day.
Monthly Electricity Generation and Investment Payback
- Estimated Solar Panel Output: 580W × 8 panels × 80% ≈ 3.7kW
- Average Peak Sunlight Hours: 5 hours per day, generating approximately 18.5kWh/day
- Estimated Monthly Electricity Generation: 555kWh
- Estimated Annual Electricity Generation: 6,660kWh
- Average Electricity Price: 3,200 VND/kWh
- Estimated Annual Electricity Savings: 21,312,000 VND
- Investment Cost: 75,000,000 VND
- Estimated Payback Period: Less than 3.5 years
Detailed Technical Specifications of Each Component

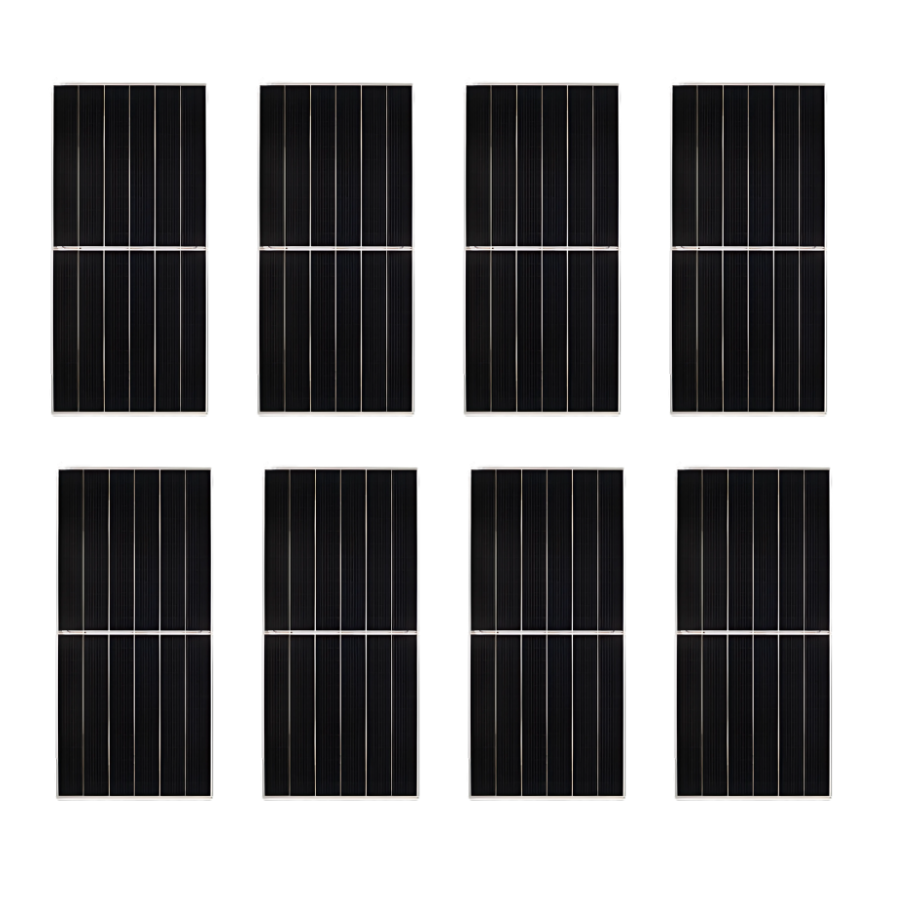

Solar Panels: 8 Panels
- Power Rating: 580Wp or 600Wp, Dimensions: 2278 × 1134 × 30 mm
- Brands: Solarcity, Worl Energy, etc.
- Technology: Solarcity 580W frameless solar panels feature a compact design, with power ratings of up to 615W and module efficiency of up to 23.8%. N-Type TOPCon technology helps improve efficiency, reduce costs, and provide durability under different weather conditions. The panels come with a 30-year performance warranty, helping optimize long-term investment. They are also easy to install in both residential and large-scale solar power systems.

Key Advantages
- Lower System Costs: Helps reduce Balance of System (BOS) costs and the Levelized Cost of Energy (LCOE).
- Stable Performance at High Temperatures: A low temperature coefficient of -0.30%/°C helps maintain efficiency in hot conditions.
- Low Power Degradation: Only 1% degradation in the first year, followed by 0.4% per year.
- Long-Term Warranty: 15-year product warranty and 30-year performance warranty, guaranteeing 87.4% remaining performance after 30 years.
Key Technical Specifications:
- Cell type: N-Type TopCon, Half-cut, M10 (182mm)
- Module efficiency: 22.4% to 23.8%
- Maximum system voltage: 1500VDC
- Dimensions: 2278 x 1134 x 30 mm
- Weight: 31.5 kg
- Number of cells: 144 (Half-cut)
- Wind resistance: 2400 Pa (~244 kg/m²)
- Snow resistance: 5400 Pa (~550 kg/m²)
- Operating temperature: -40°C ~ +85°C
- Cable: 4mm², 350mm long (optional)
- Connection: MC4/MC4 compatible
- Water/dust resistance: IP68
Hybrid Solar Inverter

|

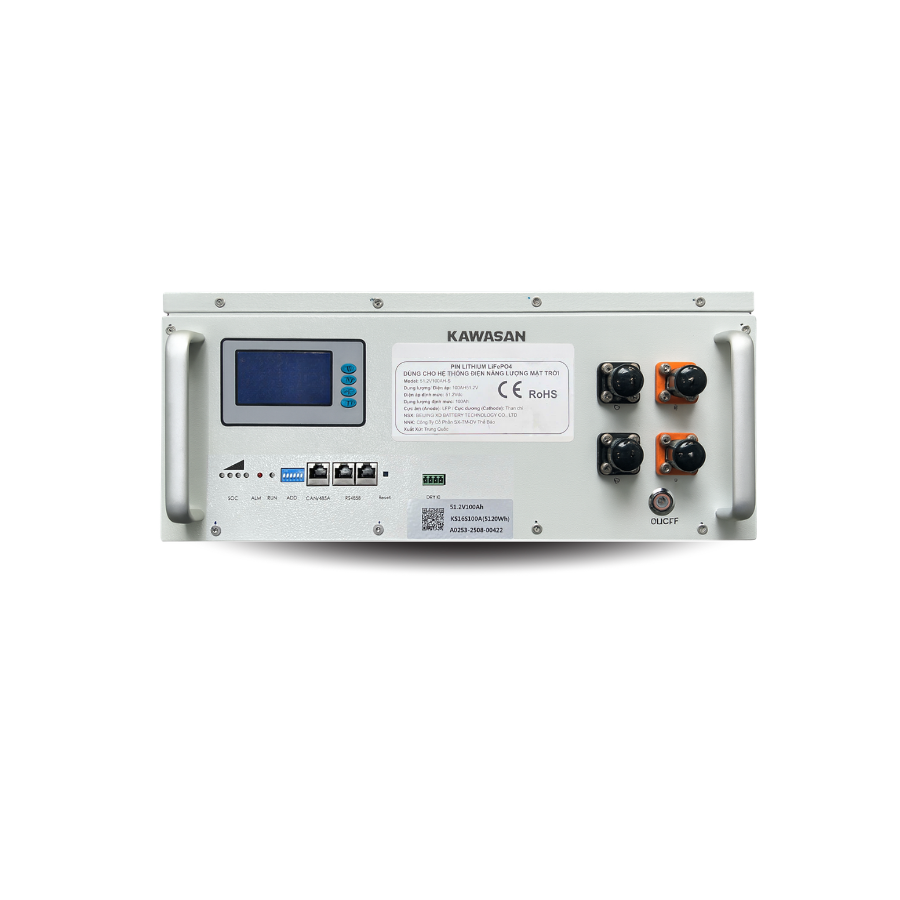

Lithium Battery Storage
- Brands: KAWASAN / Ecopower
- Energy Storage Capacity: 5kWh – 51.2V – 100Ah
- Cycle Life: 6,000 Charge/Discharge Cycles
- Battery Management: Integrated Smart BMS, connected to the inverter for monitoring through an app Warranty: 8 Years

Installation Accessories and Materials
| TÊN THƯƠNG HIỆU | Quantity | Notes | |
| DC and AC Power Cables for Inverter Connections | |||
| Specialized Solar DC Cable, 1 × 4mm² (Single-Core, Red) | 1 | China | |
| Specialized Solar DC Cable, 1 × 4mm² (Single-Core, Black) | China | ||
| AC Power Cable, 6mm² | Cadivi | ||
| PE Grounding Cable, 6mm² (Green/Yellow) | Cadivi | ||
| Hybrid On-Grid / Off-Grid Electrical Cabinet | |||
| Electrical Cabinet | 1 | MPE/Sino | |
| AC Surge Protection Device | 1 | ||
| MCB AC 2P 63A | 2 | Kawasan | |
| Terminal | 1 | ||
| Mounting Support System | |||
| Mounting Brackets, Rails, Screws, etc. | 1 | China/Vietnam | |
| Electrical Accessories | |||
| Electrical Conduits, Cable Lugs, MC4 Connectors, Stainless Steel Bolts, RS485 Communication Cables, Wall Anchors, Cable Ties, etc. | 1 | Vietnam | |
| Transportation of All Equipment and Solar Panels to the Installation Site | |||
| Grounding System | |||
| Grounding System for Inverter, Batteries, and Solar Panels | 1 | Vietnam | |
| Installation Labor | |||
| Solar Power System Installation Labor | 1 | ||
| Solar Panel Installation Labor | |||
| Monitoring Software Setup and User Instructions | |||
Operating Diagram of the Grid-Connected Solar Power System
- Priority: Rooftop Solar Power → Grid Electricity When Solar Power Is Insufficient

Operating Diagram of the Hybrid Solar Power System with Battery Storage
- Priority: Rooftop Solar Power → Battery Storage When Solar Power Is Insufficient → Grid Electricity When Battery Power Is Insufficient

WHY CHOOSE KAWASAN?
- A leading Vietnamese brand in automation, electrical safety, smart electrical equipment, and energy-saving solutions since 2007.
- High durability and carefully selected components – Stable operation even under harsh weather conditions.
- Excellent warranty policy – Repair support is available even after the warranty period if the product can still be repaired.
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 support service and a nationwide dealer network
Kawasan Commitment
KAWASAN is committed to providing genuine, durable, and safe products that meet technical standards and real-world usage requirements. All products come with a 24-month free warranty and a one-for-one replacement within 30 days in the event of a technical defect. In addition, customers can receive repair support after the warranty period if the product can still be repaired. Repairs are free of charge when the cost of replacement components is minimal. Customers can purchase products from authorized dealers in the NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.Buy genuine products at:
- Contact the Sales Department directly for wholesale prices, dealer / distributor prices: 0825 411 408 / 0911 757 234
- Website: kawasan.vn (For Kawasan products)
- Website: kawaled.com.vn (For Kawaled products)
- BUY NOW PRODUCT LINK
- Hotline: 0906 244 993 / 0987 482 518
- Website: www.kawasan.vn
- Head Office: No. 23–25, Street No. 7, Van Phuc Residential Area, Quarter 22, Hiep Binh Ward, Ho Chi Minh City, Vietnam.
- Assembly Workshop: 7/31, TA17 Street, Quarter 1, Thoi An Ward, Ho Chi Minh City, Vietnam.
- Hanoi Branch: Room 168, Van Nam Building, No. 26 Lang Street, Dong Da Ward, Hanoi, Vietnam.
- Da Nang Branch: No. 03, April 30 Street, Hoa Cuong Ward, Da Nang City, Vietnam.
- Cell type: N-Type TopCon, Half-cut, M10 (182mm)
- Module efficiency: 22.4% to 23.8%
- Maximum system voltage: 1500VDC
- Dimensions: 2278 x 1134 x 30 mm
- Weight: 31.5 kg
- Number of cells: 144 (Half-cut)
- Wind resistance: 2400 Pa (~244 kg/m²)
- Snow resistance: 5400 Pa (~550 kg/m²)
- Operating temperature: -40°C ~ +85°C
- Cable: 4mm², 350mm long (optional)
- Connection: MC4/MC4 compatible
- Water/dust resistance: IP68
- Description
- Reviews (2)
Description
6kW Hybrid Solar Power System with Battery Storage (6.3kW Inverter, 5kWh Battery Storage – 100Ah, Expandable Up to 15kWh)
Nội Dung Bài Viết
Toggle
Why Choose This System?
A Hybrid Solar Power System is a practical solution as household electricity demand continues to increase. Users can expand the system's capacity by adding more battery storage and solar panels without having to replace the inverter in the future, helping reduce upgrade costs.
- Suitable Monthly Electricity Bills: 700,000–2,000,000 VND
- Estimated Payback Period: 3–4 years
Installation Requirements
- Roof Area: More than 20m²
- Electrical System: Single-Phase
- Sunlight Conditions: The installation area should not be shaded by nearby tall buildings or trees that block sunlight during the day.
Monthly Electricity Generation and Investment Payback
- Estimated Solar Panel Output: 580W × 8 panels × 80% ≈ 3.7kW
- Average Peak Sunlight Hours: 5 hours per day, generating approximately 18.5kWh/day
- Estimated Monthly Electricity Generation: 555kWh
- Estimated Annual Electricity Generation: 6,660kWh
- Average Electricity Price: 3,200 VND/kWh
- Estimated Annual Electricity Savings: 21,312,000 VND
- Investment Cost: 75,000,000 VND
- Estimated Payback Period: Less than 3.5 years

Detailed Technical Specifications of Each Component
Solar Panels: 8 Panels
- Power Rating: 580Wp or 600Wp, Dimensions: 2278 × 1134 × 30 mm
- Brands: Solarcity, Worl Energy, etc.
- Technology: Solarcity 580W frameless solar panels feature a compact design, with power ratings of up to 615W and module efficiency of up to 23.8%. N-Type TOPCon technology helps improve efficiency, reduce costs, and provide durability under different weather conditions. The panels come with a 30-year performance warranty, helping optimize long-term investment. They are also easy to install in both residential and large-scale solar power systems.

Key Advantages
- Lower System Costs: Helps reduce Balance of System (BOS) costs and the Levelized Cost of Energy (LCOE).
- Stable Performance at High Temperatures: A low temperature coefficient of -0.30%/°C helps maintain efficiency in hot conditions.
- Low Power Degradation: Only 1% degradation in the first year, followed by 0.4% per year.
- Long-Term Warranty: 15-year product warranty and 30-year performance warranty, guaranteeing 87.4% remaining performance after 30 years.

Key Technical Specifications:
- Cell type: N-Type TopCon, Half-cut, M10 (182mm)
- Module efficiency: 22.4% to 23.8%
- Maximum system voltage: 1500VDC
- Dimensions: 2278 x 1134 x 30 mm
- Weight: 31.5 kg
- Number of cells: 144 (Half-cut)
- Wind resistance: 2400 Pa (~244 kg/m²)
- Snow resistance: 5400 Pa (~550 kg/m²)
- Operating temperature: -40°C ~ +85°C
- Cable: 4mm², 350mm long (optional)
- Connection: MC4/MC4 compatible
- Water/dust resistance: IP68
Hybrid Solar Inverter

|
Lithium Battery Storage
- Brands: KAWASAN / Ecopower
- Energy Storage Capacity: 5kWh – 51.2V – 100Ah
- Cycle Life: 6,000 Charge/Discharge Cycles
- Battery Management: Integrated Smart BMS, connected to the inverter for monitoring through an app
Bảo hành 8 năm.

Installation Accessories and Materials
| TÊN THƯƠNG HIỆU | Quantity | Notes | |
| DC and AC Power Cables for Inverter Connections | |||
| Specialized Solar DC Cable, 1 × 4mm² (Single-Core, Red) | 1 | China | |
| Specialized Solar DC Cable, 1 × 4mm² (Single-Core, Black) | China | ||
| AC Power Cable, 6mm² | Cadivi | ||
| Dây cáp động lực PE 6 mm² (Màu Te / Vàng -Xanh) |
Cadivi | ||
| Hybrid On-Grid / Off-Grid Electrical Cabinet | |||
| Electrical Cabinet | 1 | MPE/Sino | |
| AC Surge Protection Device | 1 | ||
| MCB AC 2P 63A | 2 | Kawasan | |
| Terminal | 1 | ||
| Mounting Support System | |||
| Mounting Brackets, Rails, Screws, etc. | 1 | China/Vietnam | |
| Electrical Accessories | |||
| Electrical Conduits, Cable Lugs, MC4 Connectors, Stainless Steel Bolts, RS485 Communication Cables, Wall Anchors, Cable Ties, etc. | 1 | Vietnam | |
| Transportation of All Equipment and Solar Panels to the Installation Site | |||
| Grounding System | |||
| Grounding System for Inverter, Batteries, and Solar Panels | 1 | Vietnam | |
| Installation Labor | |||
| Solar Power System Installation Labor | 1 | ||
| Solar Panel Installation Labor | |||
| Monitoring Software Setup and User Instructions | |||
Operating Diagram of the Grid-Connected Solar Power System
- Priority: Rooftop Solar Power → Grid Electricity When Solar Power Is Insufficient

Operating Diagram of the Hybrid Solar Power System with Battery Storage
- Priority: Rooftop Solar Power → Battery Storage When Solar Power Is Insufficient → Grid Electricity When Battery Power Is Insufficient

WHY CHOOSE KAWASAN?
- A leading Vietnamese brand in automation, electrical safety, smart electrical equipment, and energy-saving solutions since 2007.
- High durability and carefully selected components – Stable operation even under harsh weather conditions.
- Excellent warranty policy – Repair support is available even after the warranty period if the product can still be repaired.
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 support service and a nationwide dealer network
Kawasan Commitment
Kawasan is committed to providing genuine – durable – safe products that fully meet technical standards and practical usage requirements.
All products come with a free 24-month warranty and one-to-one replacement within 30 days in case of technical defects. In addition, customers can receive repair support after the warranty period if the product can still be restored, with no service charge if the cost of replacement components is insignificant.
Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.
Buy genuine products at:
- Contact the Sales Department directly for wholesale prices, dealer / distributor prices: 0825 411 408 / 0911 757 234
- Website: kawasan.vn (For Kawasan products)
- Website: kawaled.com.vn (For Kawaled products)
- BUY NOW PRODUCT LINK
For product consultation, please contact us!
THE BAO MANUFACTURING TRADING SERVICE JOINT STOCK COMPANY
- Hotline: 0906 244 993 / 0987 482 518
- Website: www.kawasan.vn
- Head Office: No. 23–25, Street No. 7, Van Phuc Residential Area, Quarter 22, Hiep Binh Ward, Ho Chi Minh City, Vietnam.
- Assembly Workshop: 7/31, TA17 Street, Quarter 1, Thoi An Ward, Ho Chi Minh City, Vietnam.
- Hanoi Branch: Room 168, Van Nam Building, No. 26 Lang Street, Dong Da Ward, Hanoi, Vietnam.
- Da Nang Branch: No. 03, April 30 Street, Hoa Cuong Ward, Da Nang City, Vietnam.
- Description
- Reviews (2)
Description
6kW Hybrid Solar Power System with Battery Storage (6.3kW Inverter, 5kWh Battery Storage – 100Ah, Expandable Up to 15kWh)
Nội Dung Bài Viết
Toggle
Why Choose This System?
A Hybrid Solar Power System is a practical solution as household electricity demand continues to increase. Users can expand the system's capacity by adding more battery storage and solar panels without having to replace the inverter in the future, helping reduce upgrade costs.
- Suitable Monthly Electricity Bills: 700,000–2,000,000 VND
- Estimated Payback Period: 3–4 years
Installation Requirements
- Roof Area: More than 20m²
- Electrical System: Single-Phase
- Sunlight Conditions: The installation area should not be shaded by nearby tall buildings or trees that block sunlight during the day.
Monthly Electricity Generation and Investment Payback
- Estimated Solar Panel Output: 580W × 8 panels × 80% ≈ 3.7kW
- Average Peak Sunlight Hours: 5 hours per day, generating approximately 18.5kWh/day
- Estimated Monthly Electricity Generation: 555kWh
- Estimated Annual Electricity Generation: 6,660kWh
- Average Electricity Price: 3,200 VND/kWh
- Estimated Annual Electricity Savings: 21,312,000 VND
- Investment Cost: 75,000,000 VND
- Estimated Payback Period: Less than 3.5 years

Detailed Technical Specifications of Each Component
Solar Panels: 8 Panels
- Power Rating: 580Wp or 600Wp, Dimensions: 2278 × 1134 × 30 mm
- Brands: Solarcity, Worl Energy, etc.
- Technology: Solarcity 580W frameless solar panels feature a compact design, with power ratings of up to 615W and module efficiency of up to 23.8%. N-Type TOPCon technology helps improve efficiency, reduce costs, and provide durability under different weather conditions. The panels come with a 30-year performance warranty, helping optimize long-term investment. They are also easy to install in both residential and large-scale solar power systems.

Key Advantages
- Lower System Costs: Helps reduce Balance of System (BOS) costs and the Levelized Cost of Energy (LCOE).
- Stable Performance at High Temperatures: A low temperature coefficient of -0.30%/°C helps maintain efficiency in hot conditions.
- Low Power Degradation: Only 1% degradation in the first year, followed by 0.4% per year.
- Long-Term Warranty: 15-year product warranty and 30-year performance warranty, guaranteeing 87.4% remaining performance after 30 years.

Key Technical Specifications:
- Cell type: N-Type TopCon, Half-cut, M10 (182mm)
- Module efficiency: 22.4% to 23.8%
- Maximum system voltage: 1500VDC
- Dimensions: 2278 x 1134 x 30 mm
- Weight: 31.5 kg
- Number of cells: 144 (Half-cut)
- Wind resistance: 2400 Pa (~244 kg/m²)
- Snow resistance: 5400 Pa (~550 kg/m²)
- Operating temperature: -40°C ~ +85°C
- Cable: 4mm², 350mm long (optional)
- Connection: MC4/MC4 compatible
- Water/dust resistance: IP68

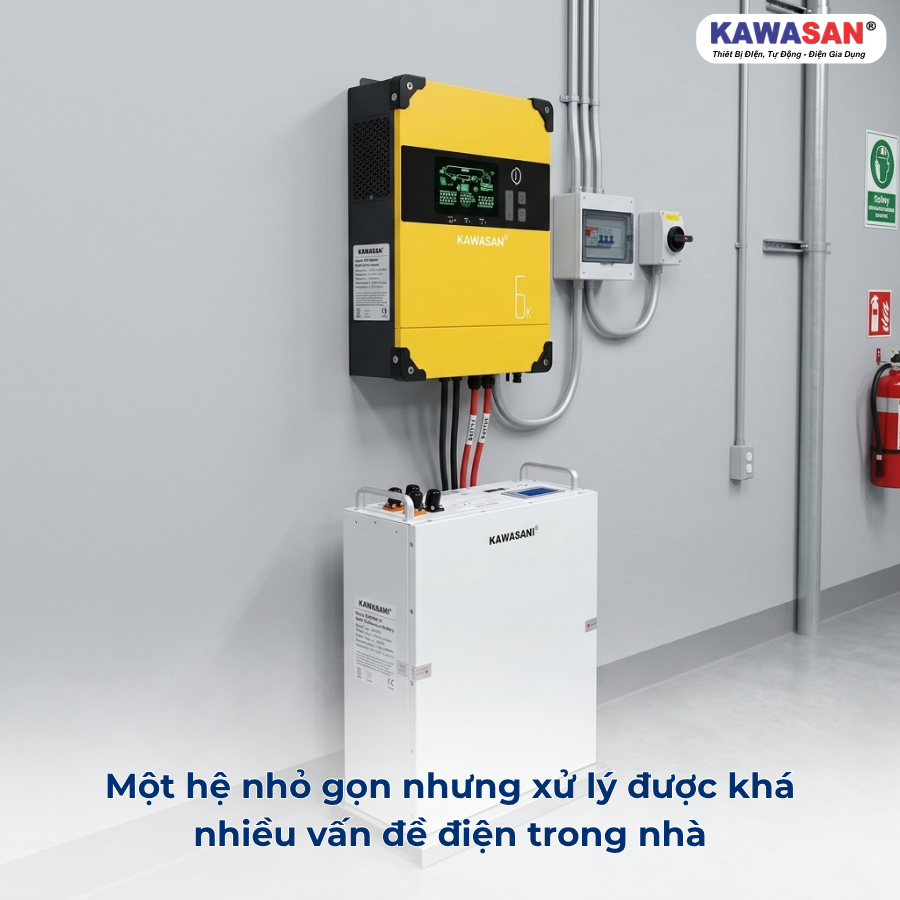

Hybrid Solar Inverter

|
Lithium Battery Storage
- Brands: KAWASAN / Ecopower
- Energy Storage Capacity: 5kWh – 51.2V – 100Ah
- Cycle Life: 6,000 Charge/Discharge Cycles
- Battery Management: Integrated Smart BMS, connected to the inverter for monitoring through an app
Bảo hành 8 năm.

Installation Accessories and Materials
| TÊN THƯƠNG HIỆU | Quantity | Notes | |
| DC and AC Power Cables for Inverter Connections | |||
| Specialized Solar DC Cable, 1 × 4mm² (Single-Core, Red) | 1 | China | |
| Specialized Solar DC Cable, 1 × 4mm² (Single-Core, Black) | China | ||
| AC Power Cable, 6mm² | Cadivi | ||
| Dây cáp động lực PE 6 mm² (Màu Te / Vàng -Xanh) |
Cadivi | ||
| Hybrid On-Grid / Off-Grid Electrical Cabinet | |||
| Electrical Cabinet | 1 | MPE/Sino | |
| AC Surge Protection Device | 1 | ||
| MCB AC 2P 63A | 2 | Kawasan | |
| Terminal | 1 | ||
| Mounting Support System | |||
| Mounting Brackets, Rails, Screws, etc. | 1 | China/Vietnam | |
| Electrical Accessories | |||
| Electrical Conduits, Cable Lugs, MC4 Connectors, Stainless Steel Bolts, RS485 Communication Cables, Wall Anchors, Cable Ties, etc. | 1 | Vietnam | |
| Transportation of All Equipment and Solar Panels to the Installation Site | |||
| Grounding System | |||
| Grounding System for Inverter, Batteries, and Solar Panels | 1 | Vietnam | |
| Installation Labor | |||
| Solar Power System Installation Labor | 1 | ||
| Solar Panel Installation Labor | |||
| Monitoring Software Setup and User Instructions | |||
Operating Diagram of the Grid-Connected Solar Power System
- Priority: Rooftop Solar Power → Grid Electricity When Solar Power Is Insufficient

Operating Diagram of the Hybrid Solar Power System with Battery Storage
- Priority: Rooftop Solar Power → Battery Storage When Solar Power Is Insufficient → Grid Electricity When Battery Power Is Insufficient

WHY CHOOSE KAWASAN?
- A leading Vietnamese brand in automation, electrical safety, smart electrical equipment, and energy-saving solutions since 2007.
- High durability and carefully selected components – Stable operation even under harsh weather conditions.
- Excellent warranty policy – Repair support is available even after the warranty period if the product can still be repaired.
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 support service and a nationwide dealer network
Kawasan Commitment
Kawasan is committed to providing genuine – durable – safe products that fully meet technical standards and practical usage requirements.
All products come with a free 24-month warranty and one-to-one replacement within 30 days in case of technical defects. In addition, customers can receive repair support after the warranty period if the product can still be restored, with no service charge if the cost of replacement components is insignificant.
Customers can purchase products at authorized dealers within NATIONWIDE DISTRIBUTION SYSTEM in provinces and cities nationwide, or place orders directly on the website.
Buy genuine products at:
- Contact the Sales Department directly for wholesale prices, dealer / distributor prices: 0825 411 408 / 0911 757 234
- Website: kawasan.vn (For Kawasan products)
- Website: kawaled.com.vn (For Kawaled products)
- BUY NOW PRODUCT LINK
For product consultation, please contact us!
THE BAO MANUFACTURING TRADING SERVICE JOINT STOCK COMPANY
- Hotline: 0906 244 993 / 0987 482 518
- Website: www.kawasan.vn
- Head Office: No. 23–25, Street No. 7, Van Phuc Residential Area, Quarter 22, Hiep Binh Ward, Ho Chi Minh City, Vietnam.
- Assembly Workshop: 7/31, TA17 Street, Quarter 1, Thoi An Ward, Ho Chi Minh City, Vietnam.
- Hanoi Branch: Room 168, Van Nam Building, No. 26 Lang Street, Dong Da Ward, Hanoi, Vietnam.
- Da Nang Branch: No. 03, April 30 Street, Hoa Cuong Ward, Da Nang City, Vietnam.
2 reviews for Hệ Điện Năng Lượng Mặt Trời Hybrid 6kw, Pin Lưu Trữ 5 Kw
-
5 out of 5
admin. admin –
Hệ này giá hợp lý, Kawasan hơn 18 năm đáng tin cậy chất lượng và bảo hành lâu dài!
-
5 out of 5
Khánh Duy –
Hệ thống chạy khá ổn, ban ngày tận dụng được nguồn điện mặt trời nên cũng giảm bớt điện lưới. Với nhu cầu gia đình mình thì mức này khá phù hợp







admin. admin –
Hệ này giá hợp lý, Kawasan hơn 18 năm đáng tin cậy chất lượng và bảo hành lâu dài!
Khánh Duy –
Hệ thống chạy khá ổn, ban ngày tận dụng được nguồn điện mặt trời nên cũng giảm bớt điện lưới. Với nhu cầu gia đình mình thì mức này khá phù hợp
