KAWASAN RF18A-RM2D HIGH-POWER REMOTE CONTROL SWITCH
Sold: 2232 sản phẩm
404.000 ₫ (VAT included)
- Specifications
- Voltage: 110–240VAC / 50–60Hz
- Frequency: RF433MHz
- Max Power: 25A, 2500W
- Remote Receiving Distance Without Obstacles: 500–1000m, used with RM2D remote
- Note: If there are obstacles, the distance will be limited to 100–300–500m, depending on wireless environment and obstacle material

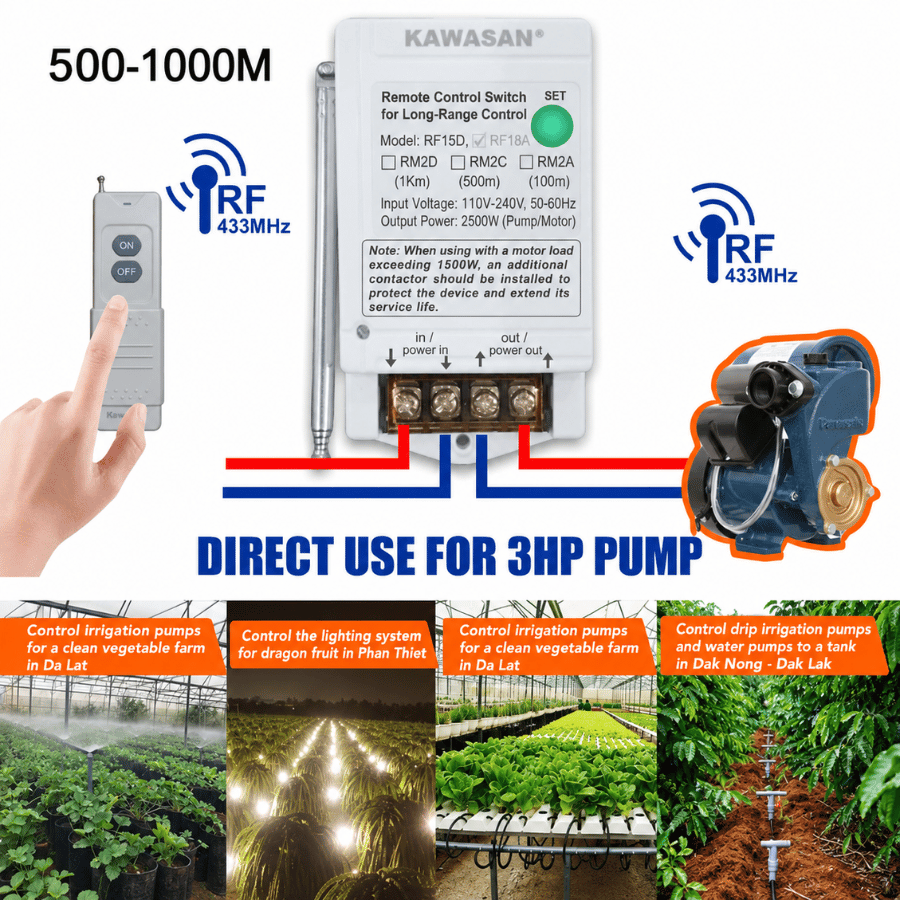

- Suitable for pumps and motors under 1500W without a magnetic contactor
- For loads over 1500W, an additional magnetic contactor is required to protect the device and extend its service life
WHAT MAKES THE KAWASAN REMOTE CONTROL SWITCH DIFFERENT?
The KAWASAN RF18A-RM2D High-Power Remote Control Switch is specially designed for remote control applications such as agricultural irrigation pumps used in coffee plantations, pepper farms, and orchid gardens. The device supports direct control of pumps up to 3 HP and uses an isolated switching power supply with an operating voltage of 110–240V, 50–60Hz and a current rating of 25A. The components used in the device are high-quality parts sourced from well-known manufacturers around the world. It also integrates EMC electromagnetic interference protection, helping prevent accidental switching caused by electromagnetic interference or RF interference from factories and other industrial environments. The device provides good signal transmission through common obstacles such as glass, wood, thin walls, and concrete. The RF18A-RM2D Remote Control Switch features a long external antenna to improve signal reception and extend the remote control range to approximately 500–1000m. The device can also be paired with different types of compatible remote controls operating on the same 433MHz RF frequency. It supports up to 5 remote controls, allowing multiple family members or users to share control when needed.
HOW CAN THE REMOTE CONTROL SWITCH BE USED?
The RF18A-RM2D High-Power Remote Control Switch can be used to control irrigation pump systems for fruit gardens, coffee plantations, and fish pond aeration systems. It allows users to conveniently turn pumps on or off from a distance without having to travel repeatedly to the equipment location, providing more time for other tasks and helping reduce labor costs.
WHY CHOOSE A KAWASAN REMOTE CONTROL SWITCH?
- Kawasan là nhãn hiệu chuyên về các thiết bị thông minh. Trong đó thiết bị điều khiển từ xa đã có mặt trên thị trường gần 17 năm tại Việt Nam. Đồng thời nhãn hiệu Kawasan đã có đăng ký bảo hộ nhãn hiệu tại Việt Nam.
- The products are researched and manufactured in Vietnam and supported by a nationwide distribution network. They come with a 2-year warranty at authorized points of sale or company offices in three major cities.
- The quality of KAWASAN high-power remote control switches is continuously improved, helping ensure stable performance and allowing additional remote controls to be easily paired when needed.
- Product information and instructions are printed in Vietnamese, making installation, setup, and operation easier for local users.
WHY CHOOSE KAWASAN?
- A leading Vietnamese brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
- High durability with selected components – Stable operation even in harsh weather conditions
- Superior warranty policy – Repair support is available even after the warranty period if the product can still be restored
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 support service and a nationwide dealer network
KAWASAN COMMITMENT
Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements. All products are covered by warranty free of charge for 24 months, 1-for-1 replacement within 30 days if it is a technical defect. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant. Customers can purchase products at dealers within NATIONWIDE DISTRIBUTION SYSTEM provinces and cities nationwide, or place orders on the website.Buy genuine products at:
- Contact the sales department directly for wholesale, dealer / distributor pricing: 0825 411 408 / 0911 757234
- Website: www.kawasan.vn (For Kawasan products)
- Website: www.kawaled.com.vn (For Kawaled products)
-
- Refer to product-related articles:
- Watch videos introducing the product, its applications, and instructions for use:
- Product introduction video: Giới Thiệu Thiết Bị Điều Khiển Từ Xa Công Suất Cao | KAWASAN | Model RF18A
Công tắc điều khiển từ xa công suất cao RF18A
- Voltage: 110–240VAC / 50–60Hz
- Frequency: RF433MHz
- Max Power: 25A, 2500W
- Remote Receiving Distance Without Obstacles: 500–1000m, used with RM2D remote
- Note: If there are obstacles, the distance will be limited to 100–300–500m, depending on wireless environment and obstacle material
Cách tích hợp thêm Remote:
Chú ý: Nút nào trên Remote đã tích hợp rồi thì không tích hợp lại được nữa. Nếu muốn tích hợp lại thì phải bấm RESET (xóa hết) rồi tích hợp lại từ đầu.
Bước 1: Nhấn giữ Nút Học Lệnh (SET) trên công tắc 3~ 4 giây. Đèn Báo nhấp nháy thì thả tay ra.
Bước 2: Bấm 1 nút (ví dụ nút A) trên remote 2 lần, mỗi lần cách nhau 1 giây thấy đèn tắt là đã hoàn thành. Lúc này nút vừa bấm (Nút A) trên remote là nút điều khiển tắt và mở công tắc.
Trường hợp muốn chọn 1nút bật và 1 nút tắt riêng biệt thì thực hiện như sau:
Bước 1: Tương tự như trên
Bước 2: Bấm lần 1 nút ON hoặc A sau đó bấm lần 2 nút OFF hoặc B, lúc này nút bấm lần đầu là nút bật và bấm lần 2 là nút tắt.
Cách xóa tất cả các remote đã cài đặt từ trước (RESET): Nhấn giữ Nút Học Lệnh trong 8-12 giây, đèn báo nháy chậm qua nháy nhanh và sau đó tắt hẳn thì nhả tay ra.
(Chú ý: Khi cài đặt phải tắt các thiết bị báo khách không dây phát sóng Radio và các thiết bị phát sóng khác có thể ảnh hưởng đến việc cài tích hợp này. Nên kiểm tra lại để tắt các thiết bị phát sóng hiện tại hoặc chuyển qua vị trí khác để cài đặt lại!)
FACTORS THAT AFFECT REMOTE CONTROL RANGE
-
Obstacles
Physical obstacles and terrain such as hills, high-rise buildings, basements, bridges, and other structures can affect the remote control range. Materials and obstacles that strongly absorb electromagnetic waves can significantly reduce the effective transmission distance.
-
RF Environment
The fewer radio-frequency signals and sources of interference in the surrounding environment, the longer the effective control range can be. Therefore, the control range in densely populated urban areas may be shorter than in rural areas where RF interference is generally lower.
-
Antenna Orientation
Many users assume that pointing the remote control directly toward the receiver will provide the longest control range. However, this is not always the case. A common type of remote antenna is the telescopic rod antenna. Its strongest radiation is generally emitted in directions perpendicular to the antenna. Therefore, when operating the remote from a long distance, holding the remote with the antenna in a vertical position while pressing the button may provide better transmission performance than pointing the antenna directly toward the receiver or relay.
Thank you for trusting Kawasan products!
Tổng Đài Tư Vấn Miễn Cước: 1800 0058 – 0825.411.408
Website: www.kawasan.vn
- Description
- Additional information
- Reviews (2)
Description
WHAT MAKES THE KAWASAN REMOTE CONTROL SWITCH DIFFERENT?
Công Tắc Điều Khiển Từ Xa Công Suất Cao RF18A-RM2D của Kawasan, được thiết kế chuyên dùng cho các nhu cầu điều khiển từ xa cho bơm tưới cho nông nghiệp cà phê, tiêu, vườn lan.
Dùng cho bơm 3HP trực tiếp, thiết bị dùng nguồn xung cách ly với điện áp cấp 110V ~ 240V. 50-60Hz, 25A.
Tất cả các linh kiện lắp nên thiết bị chất lượng nhập từ nhiều nhà sản xuất nổi tiếng trên thế giới. Tích hợp thêm tính năng chống nhiễu điện từ EMC, tránh được các vấn để lỗi tự bật ngẫu nhiên do nhiễu điện từ và nhiễu sóng từ các nhà máy.
Provides good signal transmission through common obstacles such as glass, wood, thin walls, and concrete.
Công tắc điều khiển từ xa RF18A – RM2D có ăng ten dài tăng sóng cho các nhu cầu tăng khoảng cách điều khiển từ 500-1000m.
Khả năng mở rộng dùng các loại remote khác nhau cùng tần số RF433Mhz. Số lượng lên đến 5 remote để có thể chia sẻ cho người thân trong gia đình dùng khi cần,
HOW CAN THE REMOTE CONTROL SWITCH BE USED?
The RF18A-RM2D High-Power Remote Control Switch can be used to control irrigation pump systems for fruit gardens, coffee plantations, and fish pond aeration systems. It allows users to conveniently turn pumps on or off from a distance without having to travel repeatedly to the equipment location, providing more time for other tasks and helping reduce labor costs.

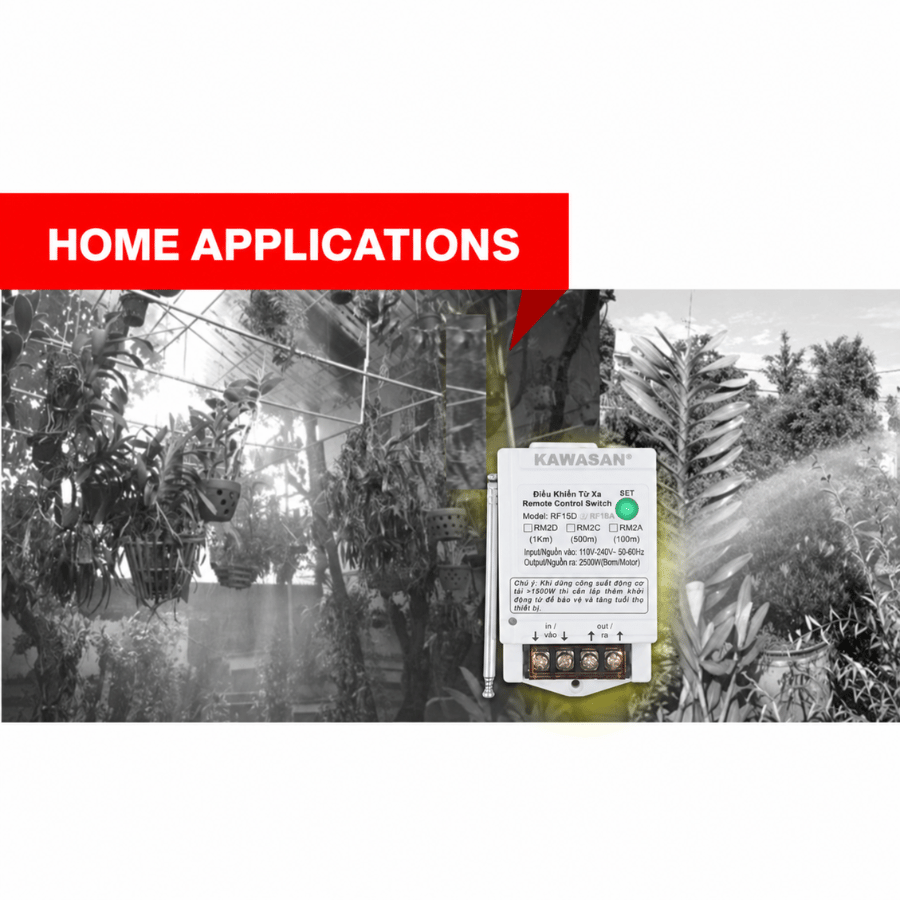

Versatile for a wide range of applications, including display lighting systems in stores and showroom signage. Sales staff can proactively turn off unnecessary lights during periods with fewer customers.
RESIDENTIAL AND OUTDOOR ELECTRICAL EQUIPMENT The RF18A-RM2A can be used to control: High-mounted balcony lights Garden and gate lighting Misting systems Garden irrigation pumps This allows users to operate electrical equipment remotely without having to repeatedly walk to the switch location.
CAR WASHING AND AIR-CONDITIONER CLEANING EQUIPMENT The device can also be used to control car-washing pumps, pressure washers, and equipment used for air-conditioner cleaning. Large car wash facilities often use multiple pumps, so several remote control switches can be installed to independently control different pumps during operation.
WHY CHOOSE A KAWASAN REMOTE CONTROL SWITCH?
- Kawasan là nhãn hiệu chuyên về các thiết bị thông minh. Trong đó thiết bị điều khiển từ xa đã có mặt trên thị trường gần 17 năm tại Việt Nam. Đồng thời nhãn hiệu Kawasan đã có đăng ký bảo hộ nhãn hiệu tại Việt Nam.
- The products are researched and manufactured in Vietnam and supported by a nationwide distribution network. They come with a 2-year warranty at authorized points of sale or company offices in three major cities.
- The quality of KAWASAN high-power remote control switches is continuously improved, helping ensure stable performance and allowing additional remote controls to be easily paired when needed.
- Product information and instructions are printed in Vietnamese, making installation, setup, and operation easier for local users.
WHY CHOOSE KAWASAN?
- A leading Vietnamese brand in the fields of automatic electrical equipment, security, safety, and smart electrical devices since 2007, as well as residential LED lighting and solar lighting since 2012.
- High durability with selected components – Stable operation even in harsh weather conditions
- Superior warranty policy – Repair support is available even after the warranty period if the product can still be restored
- Kawasan currently has its head office in Ho Chi Minh City, branches in Hanoi and Da Nang, and a production and assembly workshop in District 12, Ho Chi Minh City.
- 24/7 support service and a nationwide dealer network
KAWASAN COMMITMENT
Kawasan is committed to providing products genuine – durable – safe, fully meeting technical standards and practical usage requirements. All products are covered by warranty free of charge for 24 months, 1-for-1 replacement within 30 days if it is a technical defect. In addition, customers are also supported with repair services after the warranty period if the product can still be restored, free of charge if the cost of replacement components is insignificant. Customers can purchase products at dealers within NATIONWIDE DISTRIBUTION SYSTEM provinces and cities nationwide, or place orders on the website.
Buy genuine products at:
- Contact the sales department directly for wholesale, dealer / distributor pricing: 0825 411 408 / 0911 757234
- Website: www.kawasan.vn (For Kawasan products)
- Website: www.kawaled.com.vn (For Kawaled products)
Reference Articles and Videos on Applications, Benefits, and User Instructions
-
- Refer to product-related articles:
- Watch videos introducing the product, its applications, and instructions for use:
- Product introduction video: Giới Thiệu Thiết Bị Điều Khiển Từ Xa Công Suất Cao | KAWASAN | Model RF18A
Additional information
| Weight | 0120 kg |
|---|---|
| Dimensions | 12 × 7 × 4 cm |
