TODAY'S BEST-SELLING MICROWAVE TOUCH SWITCH RS02D

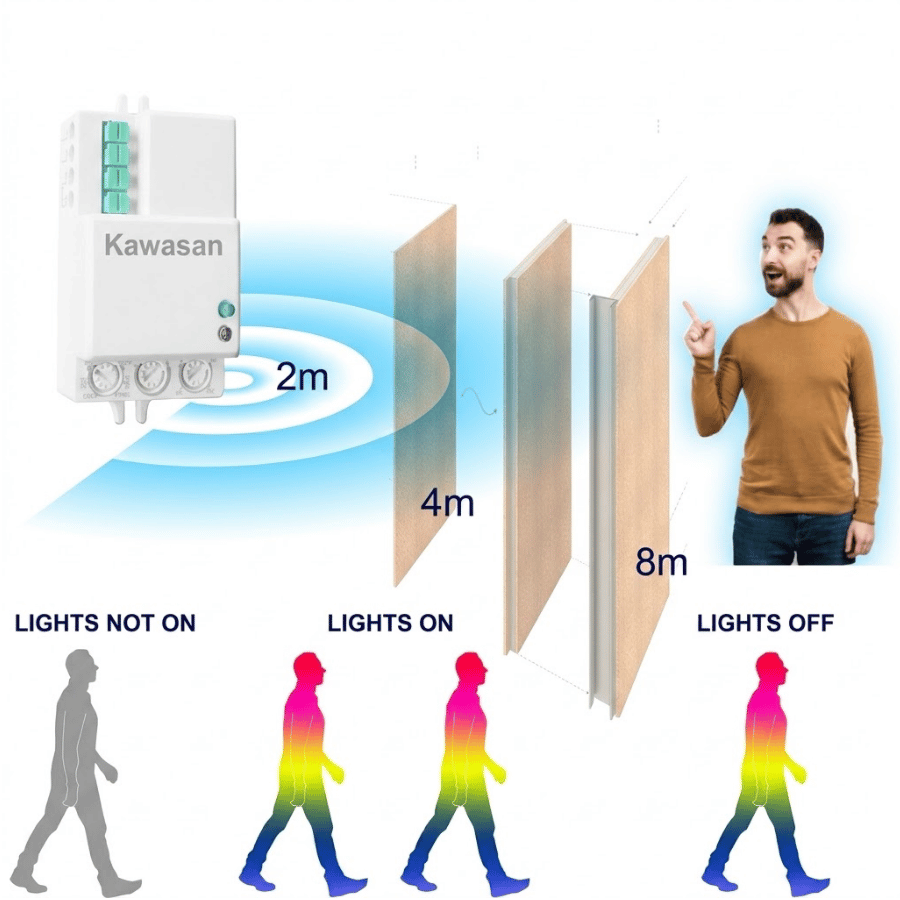

• RS02D is a 5.8 GHz frequency Radar microwave induction switch. The sensor is based on the principle of detecting waves of the human body and objects with moving wave frequencies. Very high sensitivity, capable of detecting even the smallest movements. Good ability to penetrate obstacles such as wood, glass, thin walls... Not affected by ambient temperatures above 32°C.
• Microwave switch RS02D integrates the function of adjusting LUX (light/dark), detecting the brightness of the environment. The sensor can be adjusted to only turn on the light when the environment starts to get dark. If the space has enough light then touch The microwave doesn't work anymore.
• The Time button adjusts the delay time (auto-off time), this delay time can be adjusted from 10 seconds to 8 minutes. If someone moves continuously in the scanning area, the light will remain on continuously.
• The Sens button adjusts the sensing distance to detect movement. Adjustable distance from 2-8 meters.

HIGHLIGHTS OF MICROWAVE TOUCH SWITCH COMPARED TO INFRARED SENSOR SWITCH

• Overcoming the disadvantages of infrared sensor switches such as: narrow scanning angle, affected by temperature, cannot penetrate obstacles...

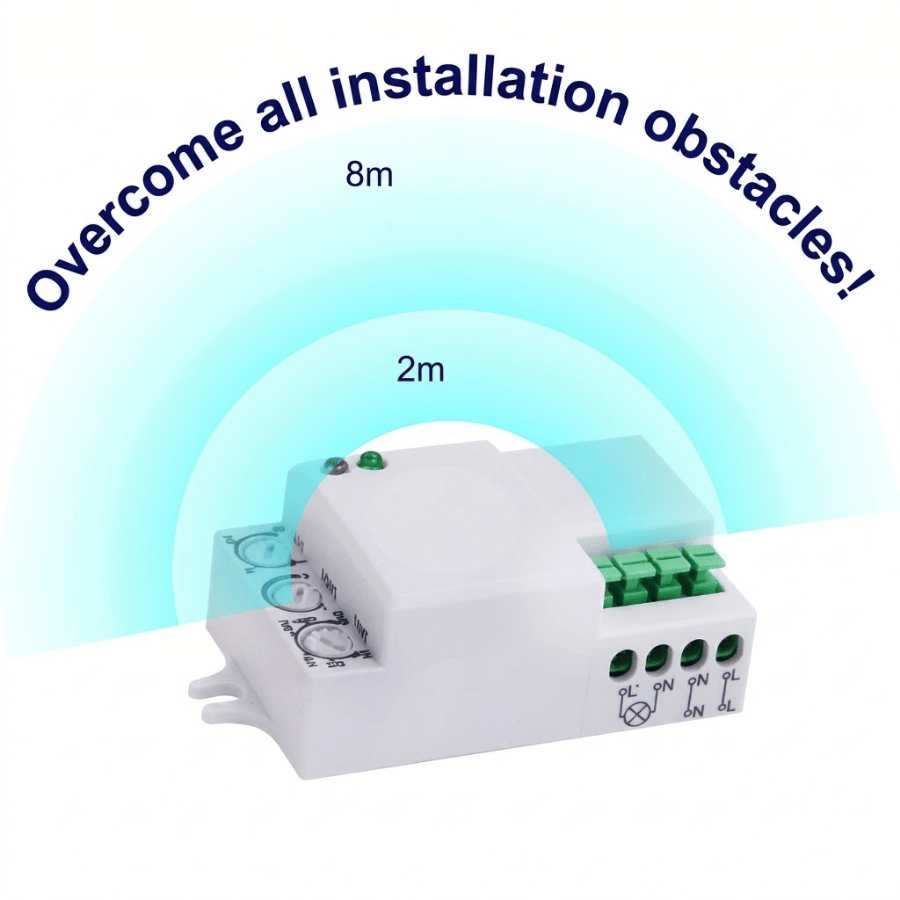

• The RS02D microwave sensor switch has good ability to penetrate obstacles such as glass, wood, thin walls... Can detect remote movement and automatically turn on the light for the user.
• The smart switch is not affected by ambient temperatures above 32°C. Avoid turning lights on and off randomly.

THE DIFFERENCE OF KAWASAN SENSOR SWITCH WITH OTHER PRODUCTS ON THE MARKET

• Most switches on the market are infrared sensors, so the scanning angle is narrow and the sensitivity is lower. Especially when the weather is hot > 320C, the sensor works very poorly.
• Other touch switches are cheaper and have flimsy buttons. When adjusting, it often slips and cannot be adjusted because there is no limit mark. This makes it impossible for users to control the maximum level.
• Products on the market often cannot adjust the touch distance. Lights often turn on randomly, causing discomfort and reducing the life of sensors and bulbs.
• Switches usually have a durability of about 1 year and a warranty of 3 months to 1 year. Although the price is cheap, in return for the replacement cost within 5 years (the durability of the Kawasan Sensor Switch), the actual cost is much higher.

APPLICATION OF MICROWAVE SENSOR SWITCH

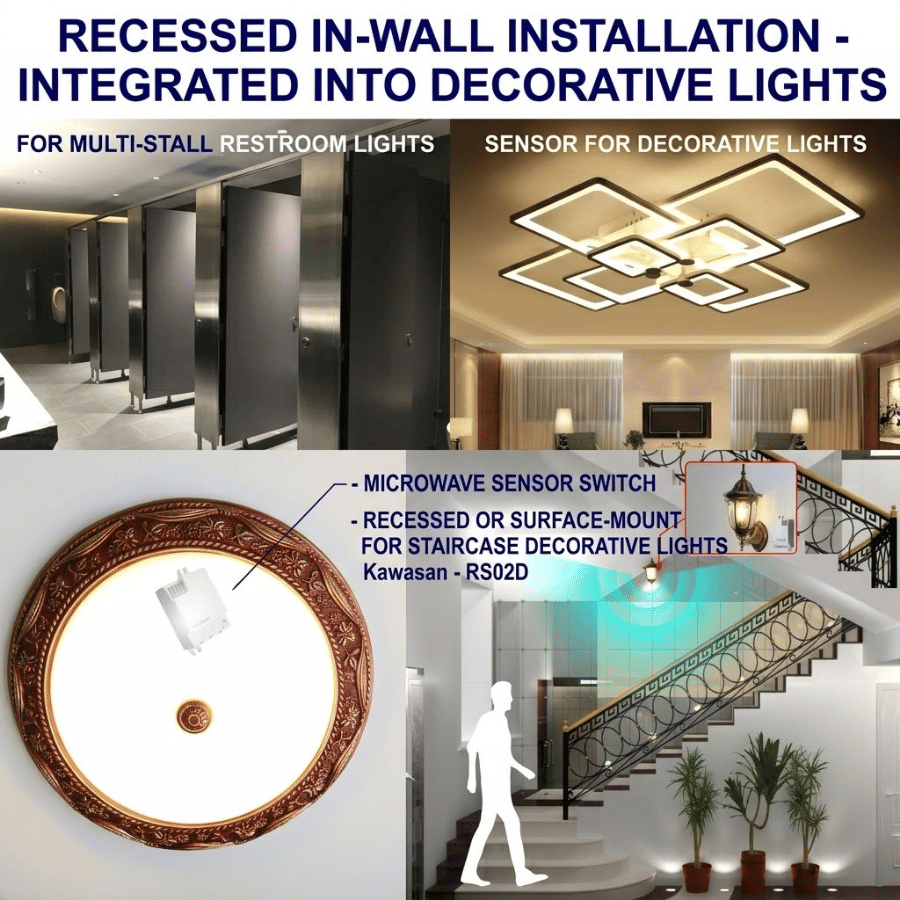

• Used to turn lights on and off for bathrooms, waiting rooms, hallways, stairs, emergency exits, garages, etc.

• Installed for long distance stairs. Installed in the position of stair lights or landing lights, when moving from top to bottom or from bottom to top, the sensor will also receive the wave and turn on the light promptly.
• Solutions for office buildings or factories such as: Hallway lights, walkways, emergency exits, changing rooms, security guard rooms, etc.

• We install the RS02D microwave sensor connected to the light bulb and adjust it so that the scanning angle is towards the direction of moving people. Then adjust 2 buttons: TIME button, light off time and LUX touch brightness. Appropriate SENS near and far distance.

BENEFITS OF SMART MICROWAVE SWITCH RS02D

• Save energy and time because you avoid forgetting to turn off the power every time you leave. Especially families with children and the elderly.
• Safe for users' health because they do not have to frequently touch the switch to turn on the light. Especially the switch in the toilet because it can be a source of germs that spread disease.
• Safe for children and the elderly who have to fumble for the switch to turn on the light when going to the bathroom. Avoid the risk of electric shock due to electric leakage.

• Has anti-theft ability because when someone breaks in, the light will turn on and the thief will not dare to enter.

FUNCTION OF ADJUSTABLE BUTTONS

• LUX button: Adjust the light or dark environment detection mode to activate the sensor mode to turn on the light.
• TIME button: Adjust auto-off time. The auto-off time can be adjusted from 10 seconds to 5 minutes. This delay time will be started again in the new induction cycle.
• SENS button: Adjust the motion detection sensing distance. Adjustable within a range of 2-8 meters.

HOW TO INSTALL KAWASAN TOUCH SWITCH

COMMON PROBLEMS AFTER INSTALLATION

• The light installed on the sensor turns on continuously, does not turn off: Check to see if the delay time adjustment button has been reduced to the minimum level for testing? After running the test for the minimum time, adjust it to about 30% adjustment range (about 3 minutes), then try again.
• The light still does not turn off after monitoring for 3-5 minutes: Check the location of the back wall of the sensor and if there are people moving around.
• Poor sensitivity, going close to the new location: Check the SENS button to see if it has increased the minimum level to 50%? If the area is always poorly lit and you want the sensor to always turn on when someone enters, you should adjust the LUX button to the "" position.Sun Moon”.
• When adjusting to the moon, it's dark but the sensor still doesn't turn on: Adjust the LUX level to increase, turn more toward the sun to avoid other lights shining in, making the environment not completely dark. Touch cannot be turned on.
