PRODUCT INTRODUCTION

• Smart Standalone Alarm Siren: Supports wireless connection with up to 50 devices, including door/window magnetic sensors, motion detectors, emergency panic buttons, smoke detectors, and other compatible wireless devices.
• Supports Up to 30 Remote Controls: Allows users to remotely arm or disarm the siren using RF remote controls.
• 433 MHz Wireless Communication: Compatible with PT2262/PT1527 coding standards, with an effective transmission range of 30–40 m in open areas without obstacles.
• Adjustable Alarm Volume: Press the [SET] button repeatedly to select the appropriate sound level for the installation environment.
• Built-in Rechargeable Backup Battery: Provides 6–8 hours of backup operation during a power outage, helping maintain continuous security protection.
• High Alarm Sound Level of Up to 110 dB: Provides a loud and clear warning, suitable for larger areas.
• Simple Setup and Easy Operation: Pair devices within seconds and clear paired devices using a single button.

Flexible Compatibility – Effective Integration with Multiple Devices

The AL21 Wireless Alarm Siren not only operate independently but can also flexibly connect with various other Kawasan wireless alarm devices, to create a complete and robust alarm system for a wide range of security needs:

• Works with the BK100M wireless emergency panic button

• Works with the SB60M / SB100M wireless door opening alarm sensors

1. Pairing sensors/remotes with the siren
   • Slide the power switch to the ON position.
   • Press and hold the [SET] button for 6 seconds until the LED indicator lights up.
   • Trigger the sensor or remote control to transmit its code. If pairing is successful, the siren will emit a “beep”.
2. Clearing all paired devices
   • Press and hold the [SET] button for 6 seconds until the LED indicator lights up → continue with a second long press until the siren emits 6 “beeps”.
3. Adjusting the volume
   • Press the [SET] button repeatedly to cycle through the available volume levels.

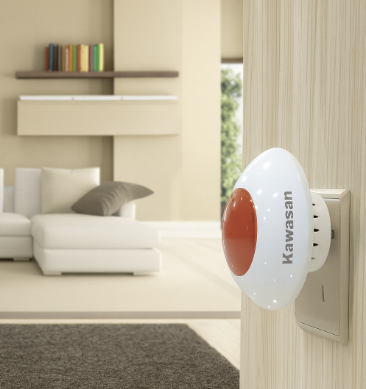

• Houses, condominiums, and studio apartments

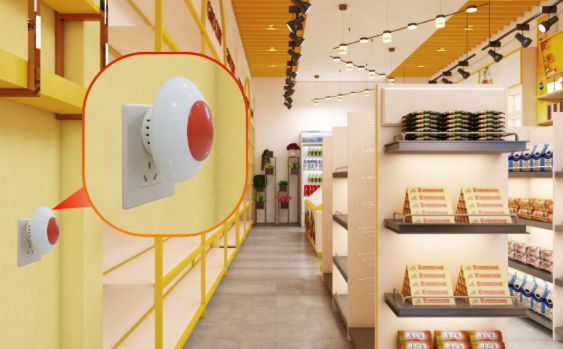

• Retail stores, showrooms, jewelry stores, and pharmacies

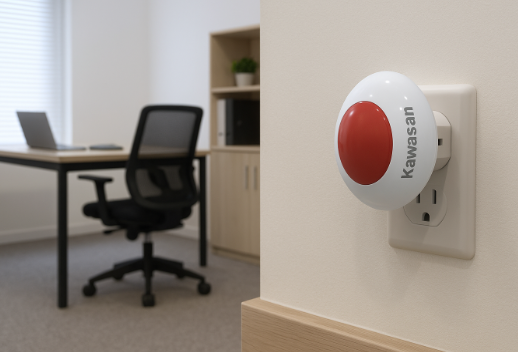

• Small offices and warehouses

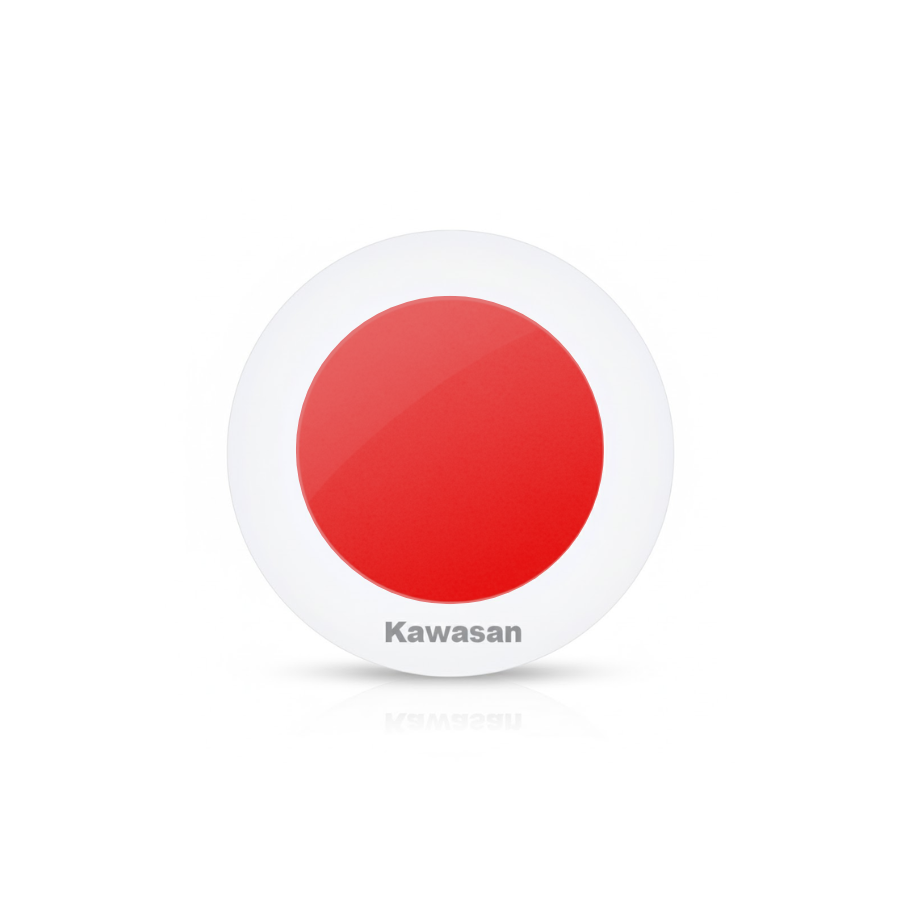

AL21 Wireless Siren:

• Wireless Frequency: RF433MHz
• Can be used independently or combined with wireless magnetic door sensors, detectors, remotes, smoke detectors, gas detectors, or control panels
• Transmission Distance: 30m with obstacles, 40m without obstacles
• Main Power Supply: AC 110–220V
• Built-in Rechargeable Backup Battery: 3.7V / 600mA, supports 6–8 hours during power failure
• Static Current: 100mAh
• Adjustable Alarm Volume: 8 levels
• Max Volume: 110dB
• Alarm Duration: 5 minutes, not adjustable

Download User Guide Here

Gắn thiết bị ở nơi riêng biệt tránh kẻ gian lấy cắp, cấp nguồn điện 220VAC vào thiết bị.

Lưu Ý:

• Thiết bị không báo qua điện thoại di động được, mà chỉ báo động tại chổ.
• Sử dụng cho mục đích chống trộm.
• Học nhận đầu dò vào thiết bị, nhấn nút tăng giảm âm lượng phía mặt dưới thiết bị, chờ khoảng 3 đến 6 giây, thấy đèn nhấp nháy, đồng thời gạt công tắc ở trên đầu dò về ON nghe tiếng phát ra ở thiết bị là cài đặt thành công, cài đặt nhận thêm remote hoặc cửa từ, báo ga, báo khói không dây cũng tương tự như trên, chú ý tần số học được có tần số là 433Mhz.
• Thời gian báo động mặc định là 5 phút, khoảng cách nhận sóng khoảng 30 ~ 40 m, lắp trong nhà, không kín nước.

​
