WHAT IS A WI-FI INFRARED MOTION SENSOR SWITCH?

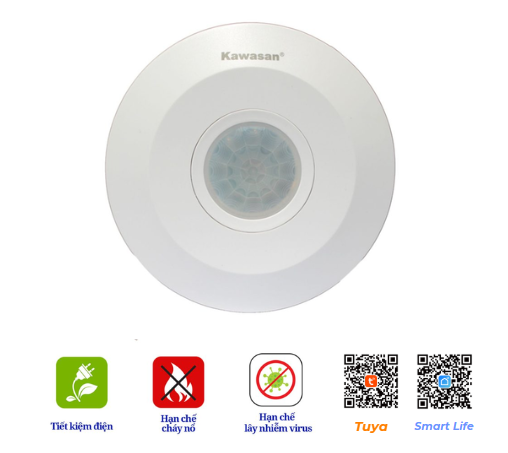

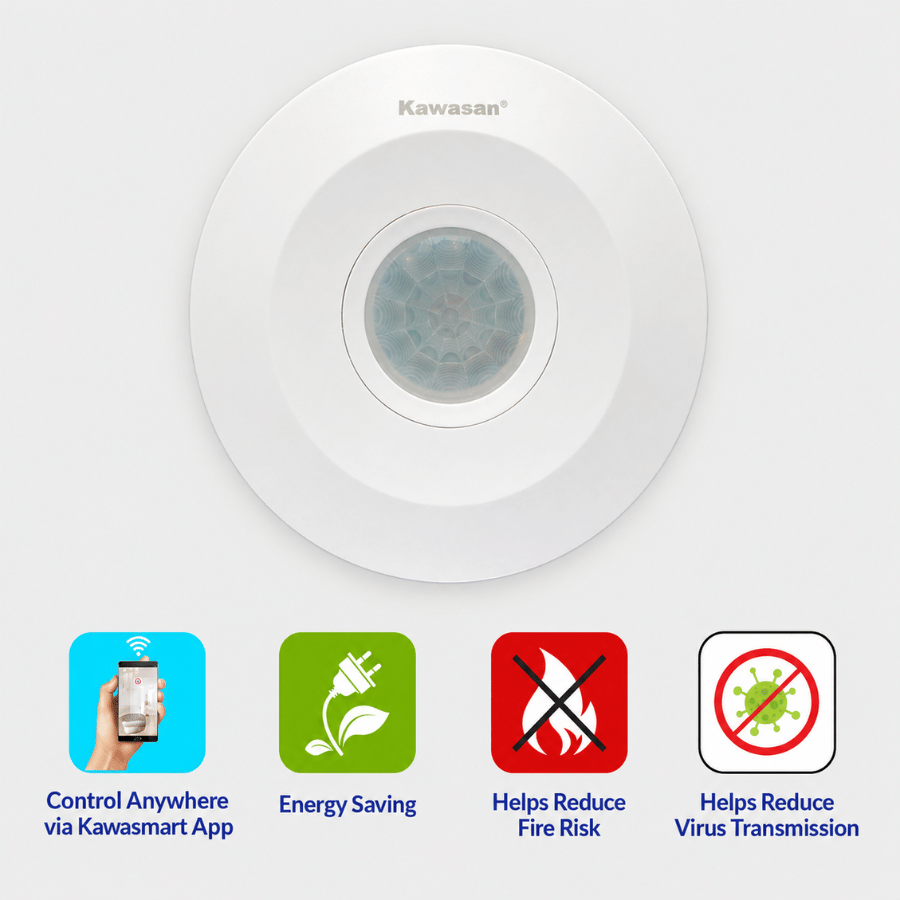

The SW702-WIFI Wi-Fi Infrared Motion Sensor Switch is a smart sensor device that detects human movement to automatically turn lights ON or OFF. It also allows users to remotely control the switch and create timers, schedules, and smart automation scenarios through the Tuya Smart app. Smart Switch It is an advanced smart solution powered by IoT technology, allowing users to control a wide range of functions anytime, anywhere through an app installed on their smartphone.

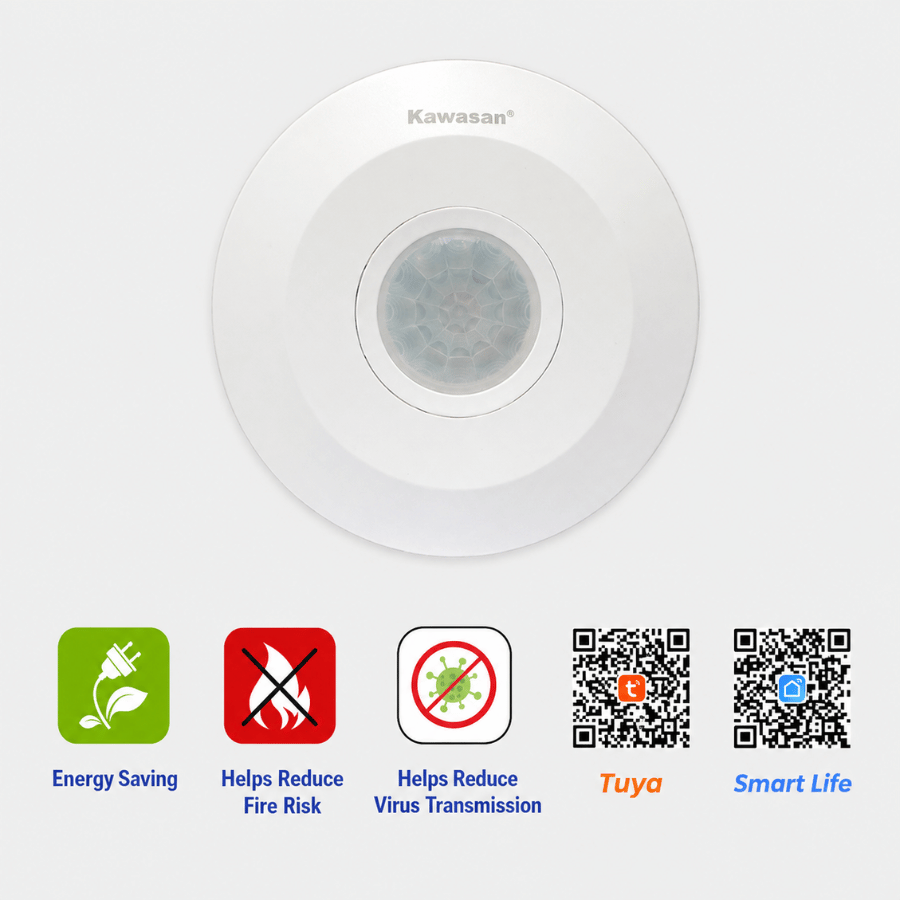

The SW702-WIFI features a surface-mounted design, making it suitable for a wide range of installation areas such as waiting halls, corridors, and other places with frequent foot traffic. When continuous lighting is needed, users can simply turn on Manual Mode in the app. In this mode, the light stays on continuously without relying on motion detection, helping prevent unexpected shut-off. At night or during periods with less foot traffic, users can switch to Auto Mode. When someone enters the detection area, the light will automatically turn on and then turn off after no movement is detected.

KEY FEATURES OF THE SW702-WIFI INFRARED MOTION SENSOR SWITCH

• The SW702-WIFI surface-mounted infrared motion sensor switch features a compact and attractive design that blends neatly into a wide range of spaces.
• Customize the operating mode touch or switch to manual mode directly in the Tuya Smart app. There is no need to use a ladder to adjust the TIME or LUX settings as with conventional motion sensor switches.
• IP55-rated protection provides effective resistance against moisture and dust.

• Made from high-quality flame-retardant plastic for enhanced safety and durability, with a service life of over 5 years.
• The Tuya Smart app allows homeowners or managers to share device access with family members or employees, so they can control the device when needed. Shared users can operate the device but cannot change the main settings configured by the owner or manager. The app also keeps a history of ON/OFF operations, making it easy for the manager to review when the device was switched on or off and check activity records.

APPLICATIONS OF THE SW702-WIFI SMART MOTION SENSOR SWITCH

The smart Wi-Fi infrared motion sensor switch can be surface-mounted on ceilings or walls, including concrete and gypsum surfaces, and connected directly to existing lighting fixtures.

• Suitable for controlling lights in hallways, staircases, dining areas, restrooms, entrances and gates in offices, houses, apartments, hotels, hospitals, and many other locations.

WI-FI MOTION SENSOR SWITCH – PRACTICAL BENEFITS FOR USERS

Save up to 50% on electricity:

• Floodlights and regular lights at gates, hallways, warehouses, apartment buildings, and parking areas are often left on all night. With the SW702-WIFI, security staff can keep the lights continuously on from 6 PM to 9 PM, then switch to Auto Mode so the lights only turn on when motion is detected. This can significantly reduce unnecessary electricity consumption.

Reduce contact and help limit the spread of germs:

• Employees and family members do not need to manually turn lights ON/OFF in restrooms, staircases, or hallways. This helps reduce contact with shared switches and lowers the risk of spreading infectious germs.

Helps reduce fire risks and extend lamp life:

• Lamp life is largely determined by total operating hours. The SW702-WIFI helps prevent lights from staying on unnecessarily for long periods, reducing heat buildup, extending lamp life, and lowering the risk of overheating and fire.

WHY CHOOSE KAWASAN WI-FI INFRARED MOTION SENSOR SWITCHES?

• Kawasan has been a leading sensor-based electrical brand in Vietnam since 2007. Its products are developed based on careful research into the needs and habits of Vietnamese consumers.
• Kawasan continuously improves its products and carefully selects components to ensure high durability and reliable performance, even under continuous use and demanding conditions.
• Strong customer support and consultation services, with a 24/7 toll-free hotline and a nationwide network of offices and dealers.
•  Kawasan provides a 2-year warranty. Even after the warranty period, technical issues that can still be repaired may be serviced free of charge, helping customers reduce repair and replacement costs.

• Wireless Communication: 2.4G Wi-Fi 11 b/g/n standard, No Home Saver Required
• App: Tuya, Smart Life
• Operating voltage: 110-240VAC/50-60Hz
• Detection Angle: horizontal 360°, vertical 110°
• Time Delay: 10 seconds – 12 minutes
• Dimensions: 11.5 × 2.5cm
• Detection Range: 3–4m (temperature >32°C), 5–8m (temperature <28°C)
• App Control: Near: 50%, Medium: 75%, Far: 100%
• Auto-off Time When No Motion Is Detected: 5 seconds to 60 minutes (adjustable via app)
• Ambient Light Setting: controlled via app
• Dark: 5–10Lux; Evening: 50–150Lux; Day: 2000Lux
• Operating Temperature: -10°C to 40°C
• No-load Power Consumption: <0.5W/h
• Output Load: 250W (LED light), 500W (compact lamp)
• Recessed Ceiling Mounting Height: 2–4m
• Moisture and Dust Protection: IP55

HOW TO INSTALL AND WIRING:

***NHỮNG VỊ TRÍ KHÔNG NÊN DÙNG CẢM ỨNG HỒNG NGOẠI

Vì cảm ứng hồng ngoại nhạy cảm với điều kiện nhiệt độ môi trường, nên cần tránh các vị trí sau:

• Tránh để cảm ứng quay về phía có tia phản chiếu mạnh như mặt kính, ánh nắng mặt trời trực tiếp
• Tránh lắp tại các vị trí có quạt thông gió, máy điều hòa, quạt hút
• Tránh lắp nơi có cây cối, rèm cửa, gió lùa mạnh

​

MỘT SỐ VẤN ĐỀ THƯỜNG XẢY RA VÀ CÁCH KHẮC PHỤC:

The load does not work (the light bulb does not light up):

1. Kiểm tra nguồn điện vào bóng đèn kết nối với cảm ứng đã có điện ra chưa?.
2. Kiểm tra lại xem bóng đèn có vấn đề gì không?.
3. Kiểm tra độ Lux đã phù hợp với ánh sáng làm việc của môi trường chưa?.

Poor sensitivity:

1. Check the front of the sensor to see if it is obscured by an obstacle.
2. Check if the ambient temperature is too high?.
3. Check to see if there is signal interference in the work area?.
4. Check installation height.

Cảm ứng không thể tự tắt tải: (đèn sáng không tắt)

1. Kiểm xem xung quanh có thân nhiệt liên tục di chuyển trong vùng cảm ứng không?
2. Thời gian trễ điều chỉnh có dài quá không?
3. Check to see if the electrical wiring installation is correct?
4. Check for changes in ambient temperature near sensors, near air conditioning equipment, or near heaters. etc…no?
